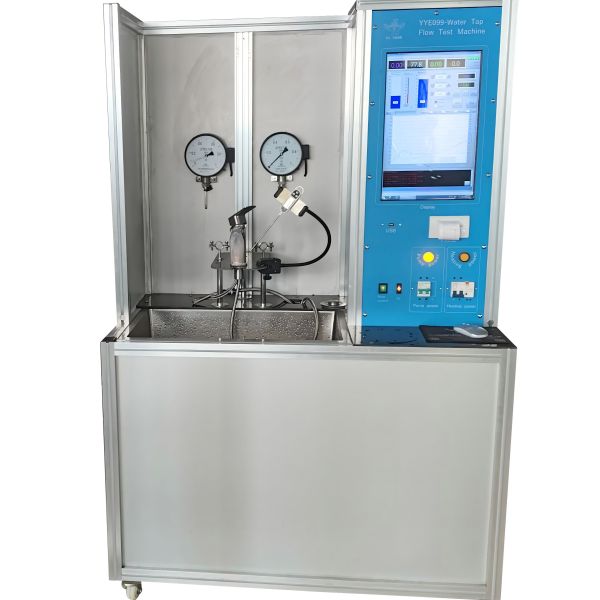

EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction
EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction
EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction
EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction
EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction
EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction
EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction
EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction
Specifications
Brand Name :
YUYANG
Model Number :
YYE099
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiation
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Delivery Time :
7-30 Days
Packaging Details :
Wooden Box
Method :
Hot&Cool water regular test
Standards :
GB, ASTM, EN 200,EN 1112，EN 817
Function :
6bar regular pressure flow test Hose sprinkler angle valve flow test
Range :
2.5～30L/min
Water Temperature range :
Room temperature-60℃
Power :
380V 50HZ 2.5KW
Material :
304 stainless steel
Description

EN817 Water Tap Flow Tester - Automatic Faucet Flow Rate Testing Equipment with PLC Control, Thermal Printer, LED Light & Exhaust Fan for Hose, Nozzle, Pipe, Angle Valve

EN817 Water Tap Flow Tester - PLC Controlled Faucet Flow Rate Testing Equipment with Thermal Printer & 304 Stainless Steel Construction

Scope of Application: This equipment is suitable for water hoses, nozzles, pipes, angle valves, etc. Flow rate not
exceeding 30 liters/minute, dynamic pressure less than 0.6 MPa.
Parameters:
1. The frame is made of aluminum; the water used for flow testing can be recycled and stored in the tank.
2. Water Supply System: Stainless steel water tank, stainless steel multi-stage pump, piping;
3. Pressure Regulation: Frequency converter for regulating pressure and flow rate;
4. Four swivel casters will be installed at the bottom; the testing chamber is equipped with LED lighting and an exhaust
fan;
5. Control System: Utilizes a PLC and host computer, displaying flow and pressure information, and includes a thermal
printer;
6. A multi-functional valve mounting plate is located above the water tank, accommodating most commercially
available faucets.
7. Flow Rate Test: Minimum flow rate is tested at 0.14 MPa (20 psi); maximum flow rate is tested at 0.41 MPa; the
nozzle's maximum flow rate is tested at 0.55 MPa.
Functions:
1. Flow rate and pressure can be automatically adjusted by the system.
2. It can also perform low-pressure flow rate tests.
3. Flow rate and pressure data will be displayed on the screen.
4. Time-flow curves will be plotted.
5. Test results will be printed.
