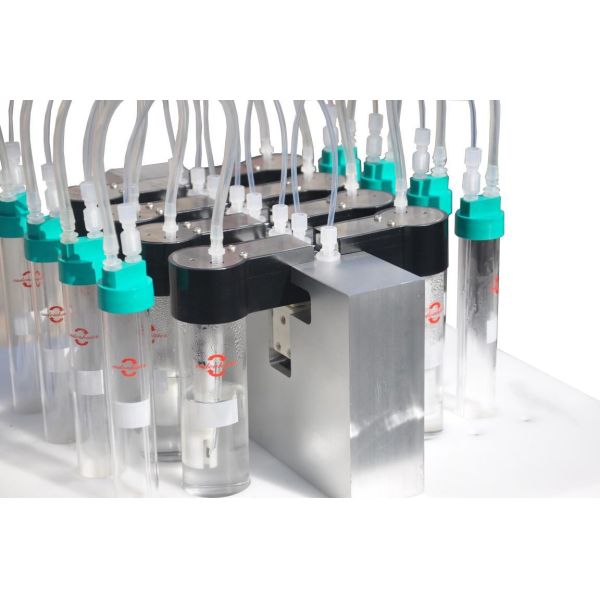

Automatic Oil Analysis Machine For Oxidation Stability Of Fatty Acid Methyl Esters FAME
Automatic Oil Analysis Machine For Oxidation Stability Of Fatty Acid Methyl Esters FAME
Automatic Oil Analysis Machine For Oxidation Stability Of Fatty Acid Methyl Esters FAME
Automatic Oil Analysis Machine For Oxidation Stability Of Fatty Acid Methyl Esters FAME
Specifications
Brand Name :
YUYANG
Model Number :
OST-R3
Certification :
ISO
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
100 Sets per month
Delivery Time :
30 days
Packaging Details :
Plywood case
Test standard :
EN 14112 & EN 15751
Test method :
Rancimat
Temperature range :
ambient~150±0.1℃
Power supply :
AC220V±10% 50HZ
Display :
LCD
Test units :
8 PCS
Sample :
biodiesel,lubricating grease etc
Warranty :
1 Year
Description

Biodiesel Oxidation Stability Tester by Rancimat Method

Introduction:

● Test standard:EN 14112 & EN 15751

●Temperature controlling:PID digital controller

● Gas source:special membrane pump 10L/H

● Temperature controlling method:electrical heating rod

● Working temperature:ambient~150±0.1℃

● Test time:about 14 hours

● Power supply:AC220V±10% 50HZ

● Test units:8 tubes


Features:

1.It’s designed according to EN14112 and suitable for measurement of oxidation stability of lubricating grease

2.It meets the requirements of EU and China standards.

3.Adopt imported PID temperature controller,the temperature is stabilized between ambient~150℃,accuracy is ±0.1℃.

4.Imported heating band guarantees safety and environmental protection

5.Special membrane pump can control the flow rate correctly and steadily.

6.Particular air filtering system makes multi air paths smooth and good air gas source.

7.Conductivity meter measure data in real time,large LCD screen IPC automatically record,store data,input and process multi-channel data,display conductivity of lubricating grease during oxidation and induction period in real time.

8.Display method:curve and digital

9.Every test is stored in data base.All data related to curve and whole method can be called.Even after a long time,you can used previous measuring points for current test.

10.Result process:automatically measure,print and break curve

11.Each sample is controlled independently,and it can be set as per request automatically.

12.8 tubes are divided into 2 groups,which is convenient to make parallel test.

13.Two temperature control systems:110℃ and 140℃(temperature can be set at random)


Specifications:

Test standard EN 14112 & EN 15751
Test method Rancimat
Temperature range ambient~150℃
Display LCD
Test units 8 holes
Sample Biodiesel,lubricating grease etc
Power supply AC220V±10%/50HZ

Automatic Oil Analysis Machine For Oxidation Stability Of Fatty Acid Methyl Esters FAME

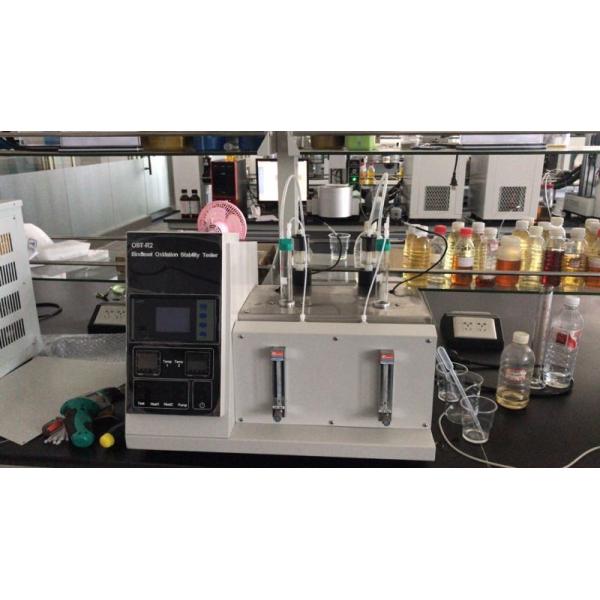

Semi-auto model OST-R2 Oxidation Stability Apparatus
