Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging
Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging
Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging
Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging
Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging
Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging
Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging
Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging

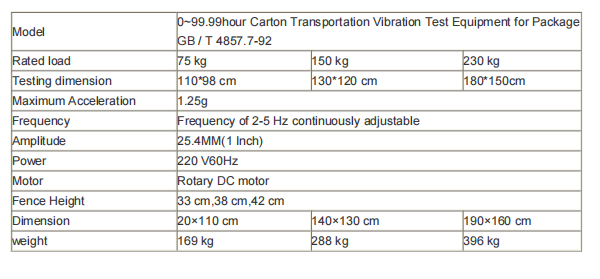

Specifications
MOQ :
1
Packaging Details :
Standard Wooden Case
Power :
220 V60Hz
Supply Ability :
15 sets per month
Testing dimension :
130*120 cm
Amplitude :
25.4MM(1 Inch)
Model Number :
YYP-001
Motor :
Rotary DC motor
Price :
1999
Maximum Acceleration :
1.25g
Certification :
ISO
Frequency :
Frequency of 2-5 Hz continuously adjustable
Place of Origin :
China
weight :
288 kg
Delivery Time :
10 days
Rated load :
150 kg
Dimension :
140×130 cm
Brand Name :
YUYANG
Fence Height :
33 cm,38 cm,42 cm
Model :
0~99.99hour Carton Transportation Vibration Test Equipment for Package GB / T 4857.7-92
Description
Rotary Vibration Test Table | Carton Packaging Transportation Vibration Testing Equipment GB/T4857.7
Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging Rotary Vibration Test Table with 130*120 cm Testing Dimension 25.4MM Amplitude and 2-5 Hz Adjustable Frequency for Carton Packaging
Product Description

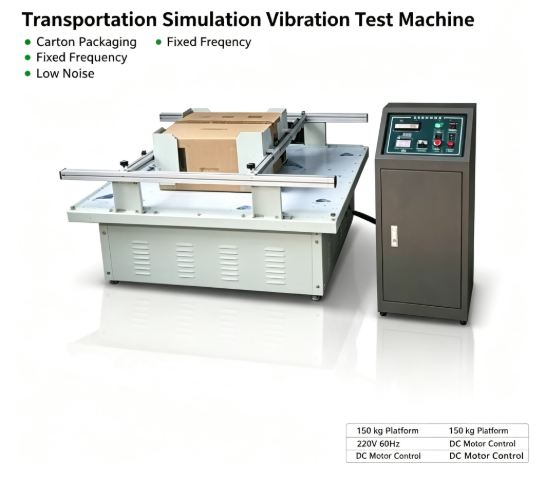

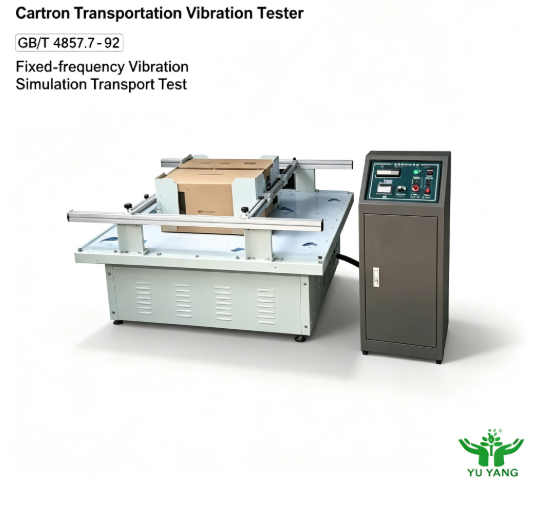

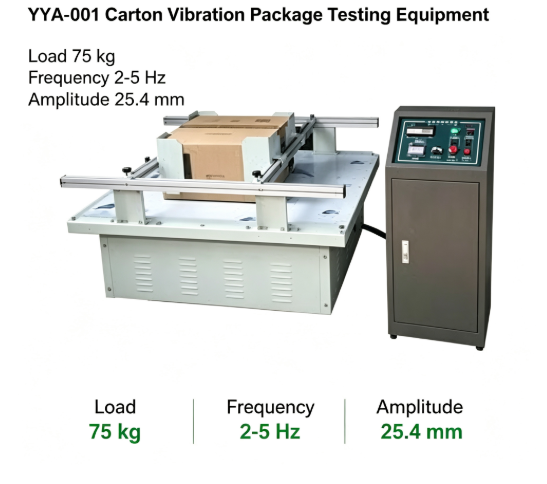

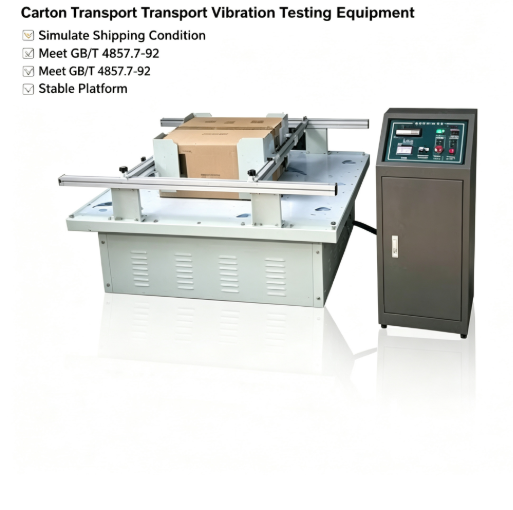

This vibration test equipment is manufactured based on United States and European transport standards, with improvements made by referencing similar American equipment. It utilizes eccentric bearings to generate rotating elliptical trajectories that simulate the vibration and collision experienced by goods during transportation by car or ship.

The test platform is fixed on eccentric bearings. When these bearings rotate, the entire test platform plane produces elliptical-shaped movements in upward, downward, forward, and backward directions. Adjusting the rotation speed of the eccentric shaft corresponds to adjusting the speed of motor vehicles or vessels.

Main Features
  • Digital instrument display for vibration frequency monitoring
  • Synchronous belt transmission with mute operation and very low noise
  • Test items secured using clamping rail system for easy operation and safety
  • Heavy-duty channel steel base with anti-vibration pads for easy installation
  • Smooth operation without requiring ground pin screw installation
  • DC motor speed control for stable running and strong load capability
  • Rotary vibration operation (commonly known as Valley-type)
Standards Compliance
  • GB/T 4857.7-92 "Transport Package Fixed-Frequency Sinusoidal Vibration Test Method"
Applications

This Package Lab Vibration Shaking Test Equipment applies to various industries including:

  • Toys
  • Electronics
  • Furniture
  • Gifts
  • Ceramics
  • Packaging products

It simulates transport tests and complies with United States and European transport standards.
