Specifications
Price :
negotiate
Packaging Details :
export wooden caton
Gas Supplies :
Propane and air compressed air
Inner Diameter :
Φ9.5±0.3mm
Supply Ability :
10 Set/Sets per Month
Sealed Window Size :
100 *100 mm
Total Power :
200W
Model Number :
YYF129
Ignition Time Accuracy :
0.01 s
Customized Support :
OEM, ODM, OBM, Software reengineering
Payment Terms :
L/C,D/A,D/P,T/T
Sample Clamp Size :
150mm × 560mm
Certification :
CE, ISO2403 BS3181 ASTMD1448; ISO1136 BS3183 ASTMD1282A
Room Temperature :
40 ℃
Thermocouple Type :
K (Ni/Cr - Ni/Al)
Combustion Box Dimension :
L300 × W300 × H790 (mm)
Delivery Time :
30WORKDAYS
Electrode Dimensions :
width: 5mm±0.1mm
Brand Name :
YUYANG
Tray :
2 Pcs Stainless Steel Trays
Display :
LCD
Timer Accuracy :
0.1s resolution
MOQ :
1
Vacuum Degree :
-0.1MPa
Description

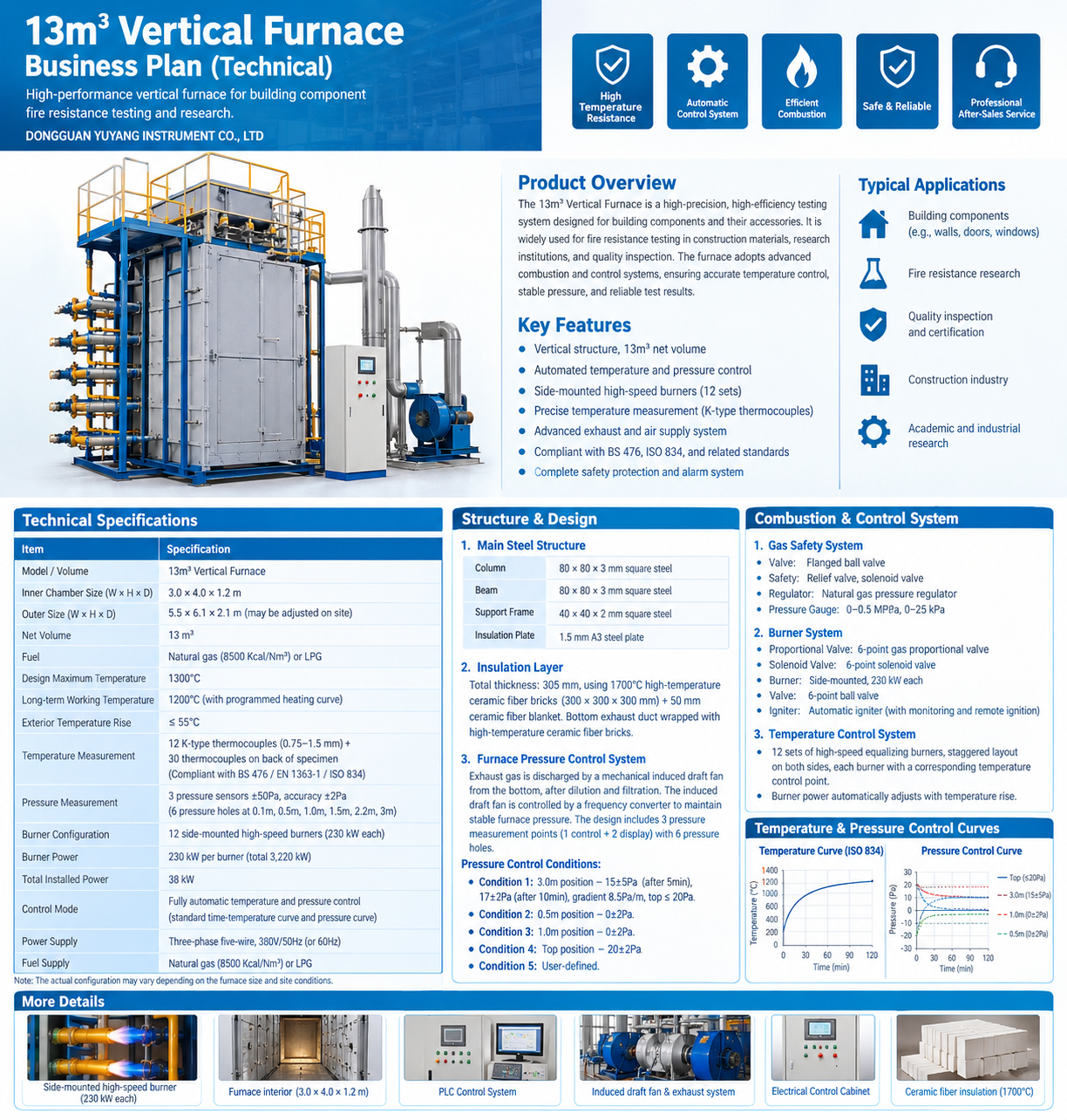

13m³ Vertical Furnace for Fire Resistance Testing
Automatic Temperature & Pressure Control Furnace for building components and construction products testing
Product Overview
The 13m³ Vertical Furnace is engineered for comprehensive fire resistance testing of building components and construction products. This advanced system features a high-temperature vertical furnace chamber with automated temperature and pressure control, multiple side-mounted high-speed burners, multi-point temperature measurement, and comprehensive safety protection systems.
Technical Specifications
Internal Volume13 m³ net
Chamber Dimensions3.0 × 4.0 × 1.2 m
Maximum Temperature1300 °C
Operating Temperature1200 °C (long-term)
Burner Configuration12 side-mounted high-speed burners
Burner Power230 kW per burner
Total Combustion Power3,220 kW
Control & Monitoring System
The furnace temperature and pressure are automatically controlled according to programmed standard curves. The system utilizes K-type thermocouples for precise furnace temperature measurement and multiple temperature measurement points on specimen surfaces. Pressure sensors and multiple pressure measurement ports ensure accurate furnace pressure monitoring and control.
Computer control software provides real-time monitoring of furnace temperature, specimen temperature, furnace pressure, burner operation, and equipment status. All test data is stored in Excel format for comprehensive analysis, reporting, and printing.
Safety System
Multiple safety protection functions ensure operational security:
  • Gas over-pressure relief system
  • Low gas-pressure alarms
  • Automatic gas shut-off during fan faults
  • Burner flame-out alarms
  • Exhaust-fan temperature alarms
  • Safety interlocks between exhaust fan, combustion fan, gas solenoid valve, and ignition system
13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace
Packaging & Transportation
13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace
Company Information
13m³ Vertical Furnace for Fire Resistance Testing | Automatic Temperature & Pressure Control Furnace
Based in Guangdong, China, established in 2018
Quality Assurance
  • Pre-production samples before mass production
  • Final inspection before shipment
Product Range
Environmental Test Chambers, Fire Testing Equipment, Tensile Testing Machines, Induction Heating Machines
Why Choose Us
We are a high-tech enterprise specializing in developing and manufacturing Fire Testing Equipment, Building Material Fire Testers, Wire and Cable Fire Testers, Environmental Test Chambers, Textile Testing Equipment, and Toys Testing Equipment.
Services Provided
Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
Payment Methods: T/T, L/C, D/P, Credit Card, PayPal, Western Union, Cash, Escrow, D/A
Languages: English, Chinese
