ISO 5660 Standard Cone Calorimeter Flammability Tester with 100 kW/m² Radiation Intensity and High-Precision Electronic Scale
ISO 5660 Standard Cone Calorimeter Flammability Tester with 100 kW/m² Radiation Intensity and High-Precision Electronic Scale
ISO 5660 Standard Cone Calorimeter Flammability Tester with 100 kW/m² Radiation Intensity and High-Precision Electronic Scale
ISO 5660 Standard Cone Calorimeter Flammability Tester with 100 kW/m² Radiation Intensity and High-Precision Electronic Scale
ISO 5660 Standard Cone Calorimeter Flammability Tester with 100 kW/m² Radiation Intensity and High-Precision Electronic Scale
ISO 5660 Standard Cone Calorimeter Flammability Tester with 100 kW/m² Radiation Intensity and High-Precision Electronic Scale
Specifications
Exhaust System :
Centrifugal fan, exhaust hood, air intake & exhaust pipes, and orifice flow meter
Certification :
ISO
Weighing Equipment :
Imported high-precision electronic scale, weighing capacity 500g, resolution 0.01g
Model Number :
YYF003
Gas Analyzer :
Gas analyzer and key components are imported
MOQ :
1
Packaging Details :
Standard Wooden Case
Supply Ability :
15 sets per month
Control System :
Embedded computer with 8.4-inch LCD, optional TCP/IP and RS-232 communication interfaces
Price :
2255
Delivery Time :
10 days
Gas Sampling Apparatus :
Sampling pump, particulate filter, dehumidification cold trap, emptying bypass, water filter, CO₂ filter
Place of Origin :
China
Radiation Cone :
Heating power 5kW, radiation intensity 100 kW/m², equipped with three thermocouples for temperature measurement
Brand Name :
YUYANG
Description

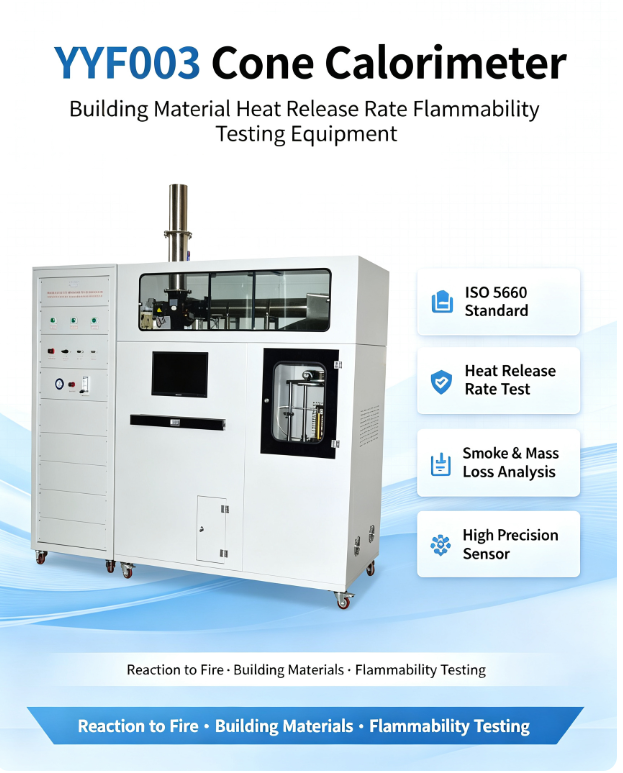

YYF003 Cone Calorimeter Building Material Flammability Tester
Heat Release Rate Testing Equipment compliant with ISO 5660 Standard for evaluating building material flammability and combustion properties.
Technical Specifications
No. Item Specification
1 Radiation Cone Heating power 5kW, radiation intensity 100 kW/m², equipped with three thermocouples for temperature measurement
2 Weighing Equipment Imported high-precision electronic scale, weighing capacity 500g, resolution 0.01g
3 Exhaust System Centrifugal fan, exhaust hood, air intake & exhaust pipes, and orifice flow meter
4 Gas Sampling Apparatus Sampling pump, particulate filter, dehumidification cold trap, emptying bypass, water filter, CO₂ filter
5 Gas Analyzer Gas analyzer and key components are imported
6 Control System Embedded computer with 8.4-inch LCD, optional TCP/IP and RS-232 communication interfaces
Oxygen (O₂) Measurement
Measuring Range: 0-25%
Signal Output: 4-20mA
Response Time: ≤2s
Ambient Temperature: 0-45 ℃
Relative Humidity: <90% (non-condensing)
Linearity: <±0.1% O₂
Zero Drift: 0.05% O₂ (one week)
Repeatability: <±0.02% O₂
Carbon Dioxide (CO₂) Measurement
Measuring Range: 0-10%
Repeatability: <±1%
Zero Drift: ≤2% / week
Span Drift: ≤2% / week
Linearity Deviation: <±1%
Response Time: T90 ≤2 seconds
Data Acquisition System
Collects and records O₂ concentration, CO concentration, temperature, heat release rate, mass loss rate; data storage supported
Note: Analyzers are not included
Product Description
The cone calorimeter calculates heat release rate through oxygen concentration measurement in combustion product streams. Heat release rate is the most important parameter of material combustion properties, enabling accurate measurement of material heat release during combustion. This is extremely important for predicting fire hazards and implementing effective fire prevention and fire-retardant treatments.
Compliance Standards
GB/T 16172, ISO 5660-1 and -2, ASTM E 1354, ASTM E 1740, ASTM F 1550, ASTM D 5485, ASTM D 6113, NFPA 271, NFPA 264, CAN ULC 135, BS 47
