PID-SSR Controlled Environmental Test Chamber with SUS#304 Inner Material and TEMI 880 Controller
PID-SSR Controlled Environmental Test Chamber with SUS#304 Inner Material and TEMI 880 Controller
PID-SSR Controlled Environmental Test Chamber with SUS#304 Inner Material and TEMI 880 Controller
PID-SSR Controlled Environmental Test Chamber with SUS#304 Inner Material and TEMI 880 Controller
PID-SSR Controlled Environmental Test Chamber with SUS#304 Inner Material and TEMI 880 Controller
PID-SSR Controlled Environmental Test Chamber with SUS#304 Inner Material and TEMI 880 Controller

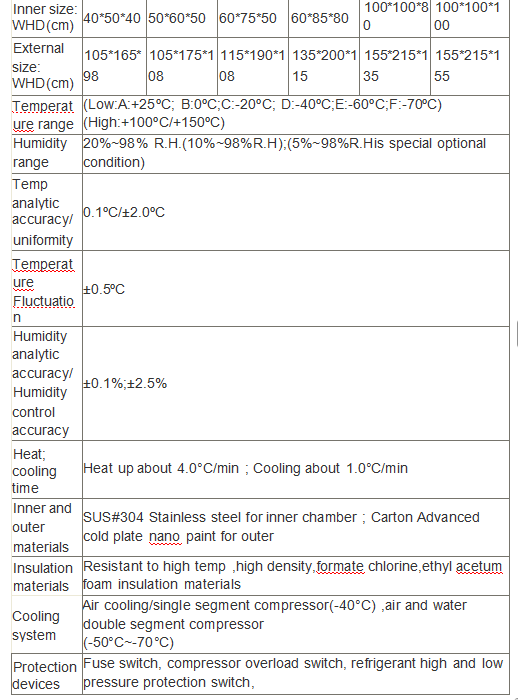

Specifications
Humidity range :
20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)
Model Number :
YYE-010
Humidity analytic accuracy/ Humidity control accuracy :
±0.1%;±2.5%
Supply Ability :
15 sets per month
External size: WHD(cm) :
105*175*1 08
Temp analytic accuracy/ uniformity :
0.1ºC/±2.0ºC
Certification :
ISO
Price :
4999
Temperat ure range :
(Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC)
Delivery Time :
10 days
Inner size: WHD(cm) :
50*60*50
MOQ :
1
Packaging Details :
Standard Wooden Case
Temperat ure Fluctuatio n :
±0.5ºC
Place of Origin :
China
Brand Name :
YUYANG
Heat; cooling time :
Heat up about 4.0°C/min ; Cooling about 1.0°C/min
Model :
YY1026-1 50
Description
Environmental Test Chamber YYE‑010 PID‑SSR Controlled Hot Cold Thermal Shock Tester
PID-SSR Controlled Environmental Test Chamber with SUS#304 Inner Material and TEMI 880 Controller
Product Overview

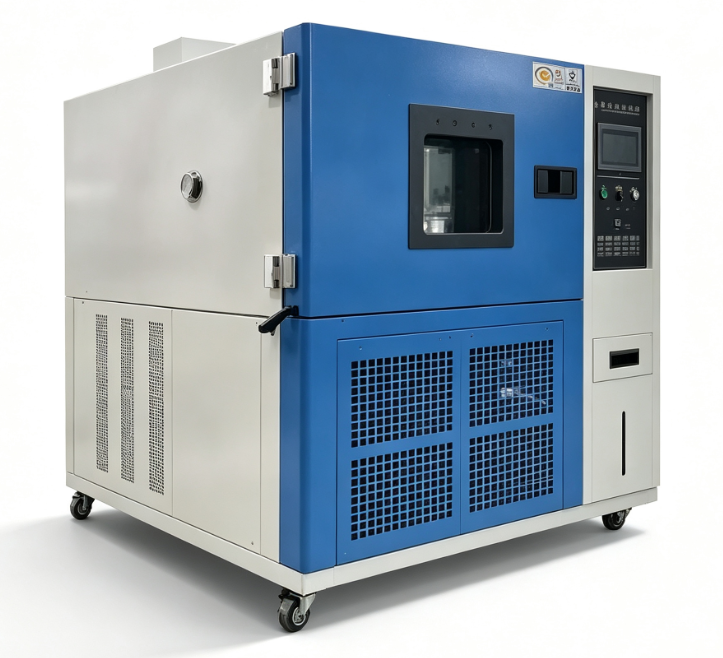

The YYE-010 Constant Temperature and Humidity Test Chamber is a precision conditioning system designed for reliable environmental testing applications.
Key Features
  • Advanced LCD touch screen interface
  • High-quality SUS#304 inner chamber material
  • Precise TEMI 880 controller system
Technical Specifications
This durable test chamber provides stable environmental conditions ranging from 5% to 98% relative humidity (±0.5%) and temperature control from -70°C to 150°C (±0.5°C). It is engineered for comprehensive resistance testing against heat, cold, dryness, and humidity, as well as sample conditioning prior to testing.
Applications
Designed to evaluate heat endurance, cold endurance, dryness endurance, and humidity endurance capabilities. Ideal for quality control across multiple industries including:
  • Electronics and electrical equipment
  • Automotive and transportation
  • Metals and materials
  • Food products and packaging
  • Chemical and building materials
  • Luggage and adhesion tape manufacturing
  • Printing and packaging industries
PID-SSR Controlled Environmental Test Chamber with SUS#304 Inner Material and TEMI 880 Controller PID-SSR Controlled Environmental Test Chamber with SUS#304 Inner Material and TEMI 880 Controller
