Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument
Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument
Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument
Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument
Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument
Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument
Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument
Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument
Specifications

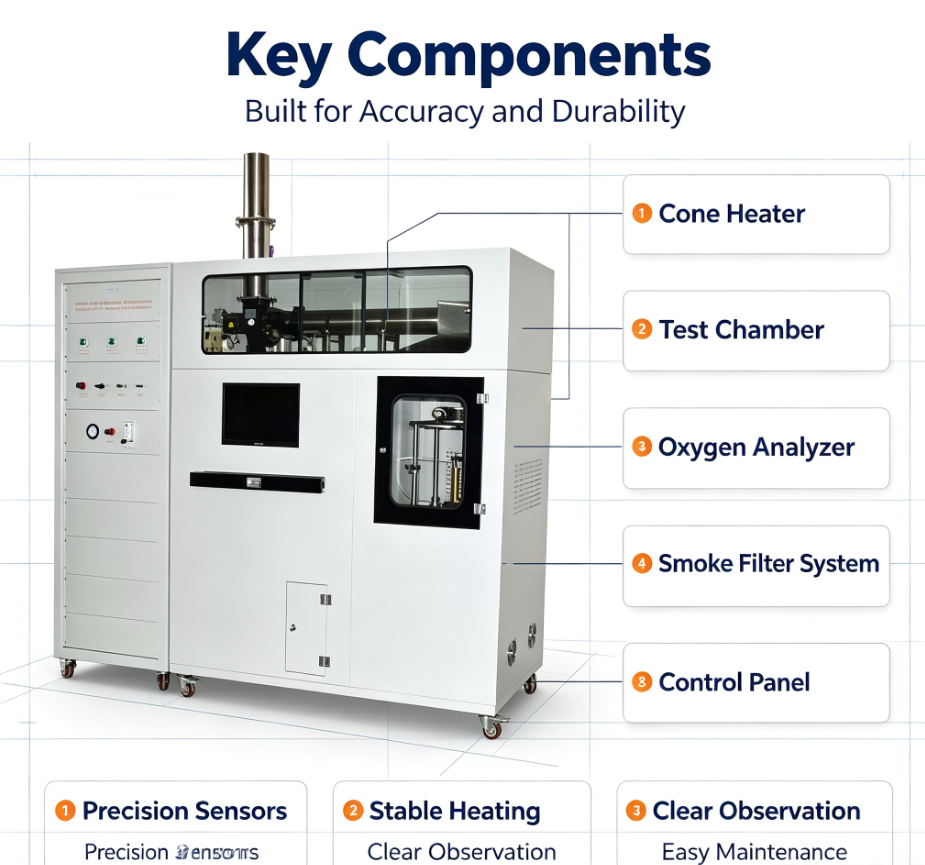

the exhaust system :
centrifugal fans, hoods, air intake and exhaust pipes as well as the composition of the orifice flow meter
Certification :
ISO
weighing equipment :
imported high-precision electronic scales, weighing 500g, resolution 0.01g
Model Number :
YYF003
oxygen measurement range :
0-25%
Relative humidity :
<90% (non-condensing)
MOQ :
1PCS
the response time :
≤2S
Payment Terms :
T/T
the signal output :
4-20mA
Price :
Negotiation
Ambient temperature :
0-45 ℃
Supply Ability :
2 sets per month
the gas sampling apparatus :
sampling pump, particulate filter, dehumidification cold trap, emptying bypass coefficient, water filters, CO2 filter.
Place of Origin :
China
the radiation cone :
heating power 5kw, radiation intensity: 100kw / m2, equipped with three thermocouples to measure the temperature.
Brand Name :
YUYANG
linearity :
<± 0.1% O2
Description

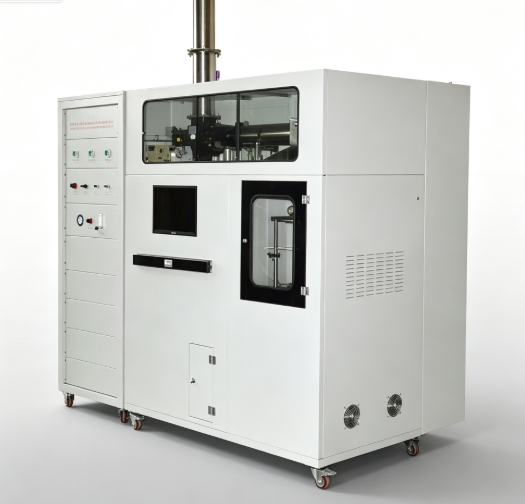

Building Material Cone Calorimeter Heat Release Rate Tester
Cone calorimeter is the most important fire testing instrument for combustion performance evaluation of building materials. It calculates heat release rate based on oxygen consumption of flue gas during sample burning. Accurate heat release rate measurement is critical for fire risk prediction, fire prevention design and flame retardant material development.
Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument Building Material Cone Calorimeter Heat Release Rate Tester Flame Retardant Material Combustion Flammability Testing Instrument
Working Principle

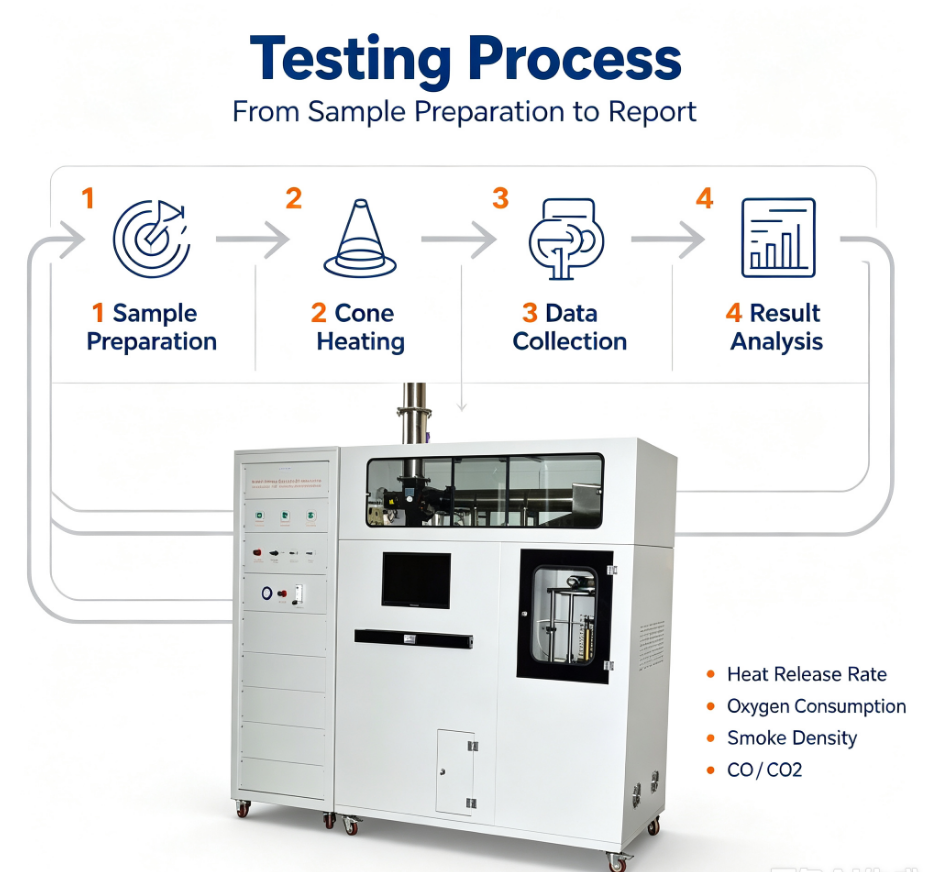

The equipment measures oxygen concentration in combustion flue gas stream, then calculates material heat release rate according to oxygen consumption theory. Heat release rate is the core parameter to evaluate combustion characteristics of burning materials. It can record multiple real-time test data to assess fire hazard level of samples.
Compliant Standards
GB/T16172, ISO 5660-1 and -2, ASTM E1354, ASTM E1740, ASTM F1550, ASTM D5485, ASTM D6113, NFPA 271, NFPA 264, CAN ULC 135, BS 476
Application & Testing Industry
  • Building materials / Construction panels
  • Flame retardant composite materials
  • Furniture & upholstery materials
  • Transportation interior materials (rail, ship)
  • Plastic, foam, textile fire performance test
  • Fire laboratory, third-party test institute, university research lab
  • Material factory flame retardant R&D and quality inspection

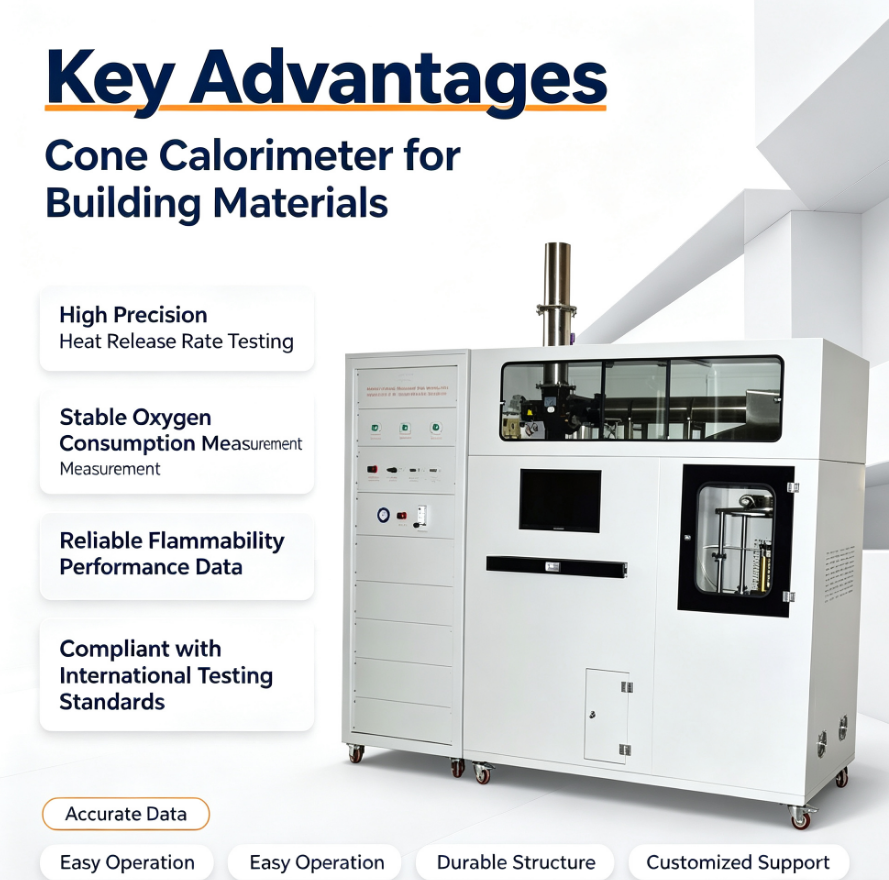

Key Advantages
  • Strictly follow global fire test standards, test reports can be recognized internationally
  • Imported core gas analysis components, stable signal and high test accuracy
  • High precision electronic weighing module, real-time mass loss monitoring
  • Integrated automatic data acquisition system, automatic curve generation & data saving
  • Closed test chamber with safety protection, stable cone radiation output
  • Humanized operation interface, simple operation, automatic test recording
  • Complete after-sales: installation guidance, operation training, calibration & maintenance service
Packing & Delivery
Packing: Standard export plywood fumigation-free wooden case, shockproof foam inside
Shipping: Sea freight / Air freight / Express available
Delivery time: 25~40 working days after receiving deposit
