Plastic Ignition Temperature Test Apparatus with Stainless Steel Frame, Electronic Ignition, and Removable Exhaust Pipe for Laboratory Furnace
Plastic Ignition Temperature Test Apparatus with Stainless Steel Frame, Electronic Ignition, and Removable Exhaust Pipe for Laboratory Furnace
Plastic Ignition Temperature Test Apparatus with Stainless Steel Frame, Electronic Ignition, and Removable Exhaust Pipe for Laboratory Furnace
Plastic Ignition Temperature Test Apparatus with Stainless Steel Frame, Electronic Ignition, and Removable Exhaust Pipe for Laboratory Furnace
Plastic Ignition Temperature Test Apparatus with Stainless Steel Frame, Electronic Ignition, and Removable Exhaust Pipe for Laboratory Furnace
Plastic Ignition Temperature Test Apparatus with Stainless Steel Frame, Electronic Ignition, and Removable Exhaust Pipe for Laboratory Furnace
Specifications
Torch Position :
Torch Position Torch is positioned above the sample; exposed flame length: 28 ± 2 mm; exposed bottom surface of the flame applied at 6 mm
Certification :
ISO
Model Number :
YYF009
Radiant Panel Position :
Installed on the frame; 1250 mm above the ground
MOQ :
1
Packaging Details :
Standard Wooden Case
Sample Size :
885 × 270 mm
Supply Ability :
15 sets per month
Exhaust Pipe :
Stainless steel exhaust pipe with removable parts for easy cleaning
Flame-to-Sample Height :
75–100 mm
Price :
2999
Burner Tube :
Stainless steel; inner diameter: 3.0 mm; outer diameter: 6.4 mm
Delivery Time :
10 days
Ignition & Safety :
Equipped with ignition, electronic ignition, automatic flameout, and safety monitoring device
Brand Name :
YUYANG
Frame Structure :
Made of stainless steel; corrosion-resistant
Place of Origin :
China
Description

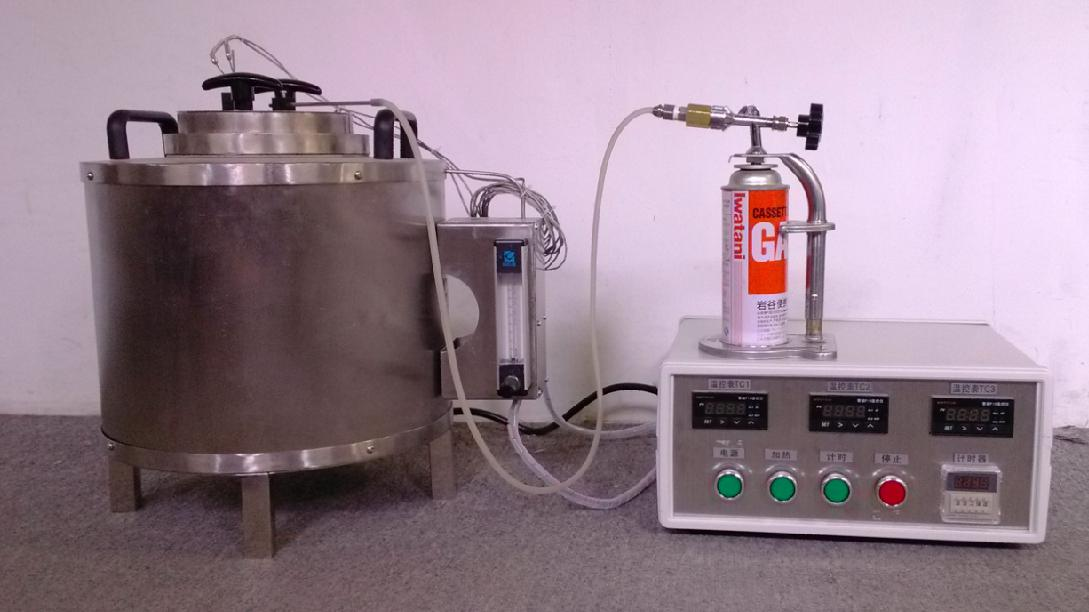

YYF009 Plastic Ignition Temperature Test Apparatus
This laboratory furnace is designed for testing plastic ignition point performance by decomposing and releasing combustible gas from plastic materials under regulated testing conditions. The material is ignited by an outer flame and burned for a specific duration to measure its minimum ignition temperature. Test results enable comparative analysis of material performance.
Plastic Ignition Temperature Test Apparatus with Stainless Steel Frame, Electronic Ignition, and Removable Exhaust Pipe for Laboratory Furnace
Compliance Standards
  • ASTM D 1929
  • GB/T 4610
  • GB/T 9343
Technical Specifications
Feature / Specification Details
Frame Structure Made of stainless steel; corrosion-resistant
Ignition & Safety Equipped with ignition, electronic ignition, automatic flameout, and safety monitoring device
Exhaust Pipe Stainless steel exhaust pipe with removable parts for easy cleaning
Burner Tube Stainless steel; inner diameter: 3.0 mm; outer diameter: 6.4 mm
Torch Position Torch is positioned above the sample; exposed flame length: 28 ± 2 mm; exposed bottom surface of the flame applied at 6 mm
Flame-to-Sample Height 75-100 mm
Sample Size 885 × 270 mm
Radiant Panel Position Installed on the frame; 1250 mm above the ground
Standard Designed according to BS476-7; radiation plate positioned at 90°
Radiation Device Radiant panel size: 850 × 850 mm; porous refractory blocks; provides a uniform gas mixture for complete combustion and prevents surface burning
Sample Fixture Made of cooled and water-cooled steel panel chuck; sample temperature at the fixture outlet must not exceed 35°C
Cooling Water Flow Rate 12 L/min
Gas Flow Rate 1500 ± 200 mL/min
Test Position Adjustment Sample position can be adjusted according to the tooling center axis, allowing different angles between the test surface and radiation plate
Power Control Power output is automatically controlled according to the test time and automatically adjusted
Data Processing Computer automatically processes test data and generates/prints the test report
