YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
Specifications
Gas pressure :
10kpa~50kpa
Xenon Lamp Power :
6.5kw
Model Number :
YY510
Usage :
Fire Testing Equipment for Building Material
Gas Flow Range :
100~1000 ML / MIN
MOQ :
1 PC
Delivery Time :
10 days
Burner angle :
45°
Testing Time :
30s±1s
Payment Terms :
T/T
Standard :
EN ISO 11925-2, DIN 53438, DIN4102-1
Burner :
Diameter 0.17mm burner with regulator
Price :
Negotiable
Gas source :
>95% propane gas
Supply Ability :
15 sets per month
Product name :
Single Flame Source Test / Ignitability Test Apparatus
Power supply :
AC220V±10%, 50Hz
Certifications :
CE, ISO 9001
Brand Name :
YUYANG
Dimension :
400mm(W)*700mm(D)*600(H)
Packaging Details :
Standard Wooden Case
Certification :
ISO
Temperature Testing Range :
0~1000 degree
Air Source :
methane, air
Flame Height :
20mm to 200mm
Total Flame Height :
170~190 MM
Place of Origin :
Guangdong, Dongguan
Burning Plate :
Aluminum, Diameter 50mm
Description

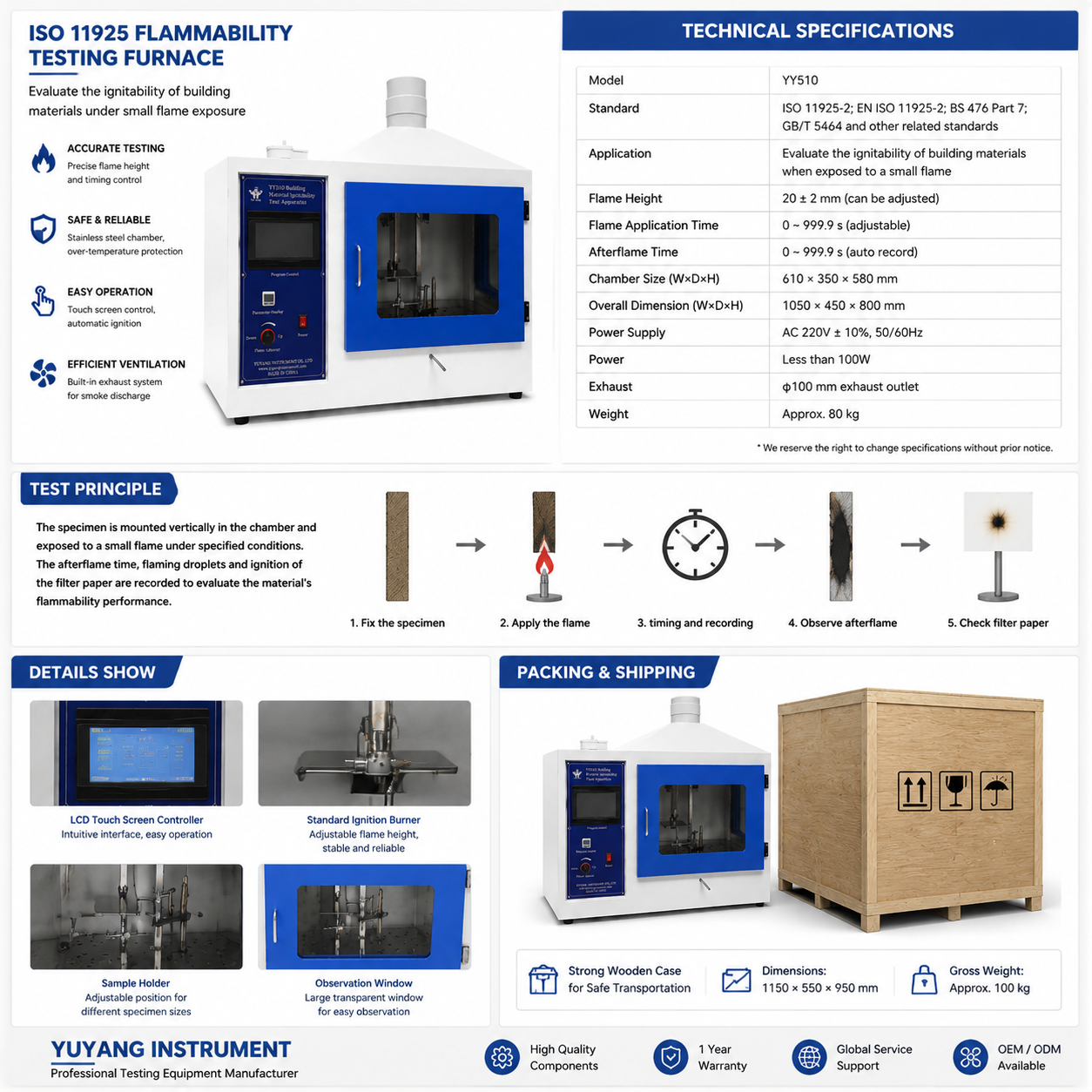

YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace YY510 Building Material Ignitability Test Apparatus ISO11925 Flammability Testing Furnace
Product Introduction
Developed to meet the requirements of GB/T8626 and ISO11925, the Building Material Ignitability Test Apparatus assesses the flammability performance of construction products. The test principle uses direct small-flame impingement on vertically arranged specimens without external radiant heat. The device complies with GB 8624-2014, the prevailing standard for fire classification of building materials, and supports testing for fire grades such as B1 and B2.
Compliance Standards
• EN ISO 11925-2 - Reaction to fire tests - Ignitability of products subjected to direct impingement of flame - Part 2: Single-flame source test
• DIN 53438 - Testing of combustible materials
• DIN 4102-1 - Fire behaviour of building materials and elements Part 1: Classification of building materials Requirements and testing
Key Features
  • Spray-coated equipment cabinet with elegant and professional appearance
  • Combustion chamber inner dimensions: 700mm (length) × 400mm (width) × 600mm (height)
  • Adjustable flame height, auto-timing, automatic flame detection, auto ignition and ignition failure protection
  • Flame application and combustion duration settings: 0 minute 0 second to 99 minutes 99 seconds
  • Available test angles: 0° (vertical) and 45°
  • External debugging handle for horizontal burner movement
  • Tempered glass door for convenient observation and testing
  • All internal tooling made of corrosion-resistant stainless steel
  • Includes two types of stainless steel sample holders and flame height gauge
  • High automation level ensures precise test results with simple operation
  • Imported Humboldt burner from United States: jet orifice diameter φ0.17 mm with four φ4 mm air regulating holes
  • Real-time test data monitoring with access to test records for up to 6 specimens and historical alarm information
Control System
• Programmable Logic Controller (PLC) Control
• Automatic timing, flame detection, ignition, and ignition abnormal protection
• LCD touch screen display
• Real-time monitoring of experimental data, queries for six samples of experimental data, and alarm content access
Applications
Construction Materials Testing
• Fire property assessment of building materials
Laboratory Testing
• Academic universities
• Scientific research institutions
• Certification test laboratories
Enterprise Quality Control
• Manufacturers of construction materials
• Insulation material manufacturers
• Fire safety audit institutions
