Specifications
Gas pressure :
10kpa~50kpa
Xenon Lamp Power :
6.5kw
Model Number :
YY510
Usage :
Fire Testing Equipment for Building Material
Gas Flow Range :
100~1000 ML / MIN
MOQ :
1 PC
Delivery Time :
10 days
Burner angle :
45°
Testing Time :
30s±1s
Payment Terms :
T/T
Standard :
EN ISO 11925-2, DIN 53438, DIN4102-1
Burner :
Diameter 0.17mm burner with regulator
Price :
Negotiable
Gas source :
>95% propane gas
Supply Ability :
15 sets per month
Product name :
Single Flame Source Test / Ignitability Test Apparatus
Power supply :
AC220V±10%, 50Hz
Certifications :
CE, ISO 9001
Packaging Details :
Standard Wooden Case
Brand Name :
YUYANG
Dimension :
400mm(W)*700mm(D)*600(H)
Certification :
ISO
Temperature Testing Range :
0~1000 degree
Air Source :
methane, air
Flame Height :
20mm to 200mm
Total Flame Height :
170~190 MM
Place of Origin :
Guangdong, Dongguan
Burning Plate :
Aluminum, Diameter 50mm
Description
Building Material Flammability Tester ISO11925 Fire Testing Furnace
Professional equipment for ignition performance evaluation of building materials according to international standards.
Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation Building Material Flammability Tester ISO11925 Fire Testing Furnace for Ignition Performance Evaluation
Product Overview
Developed in accordance with GB/T8626 and ISO11925 standards, this Building Material Ignitability Test Apparatus measures the flammability of building products. The test method uses a small flame to directly impinge vertical samples under conditions without external radiation. Conforming to GB 8624-2014 (latest version) for building material fire classification, the apparatus is capable of conducting tests for B1 and B2 fire resistance grades.
Compliance Standards
EN ISO 11925-2 - Reaction to fire tests - Ignitability of products subjected to direct impingement of flame - Part 2: Single-flame source test
DIN 53438 - Testing of combustible materials
DIN 4102-1 - Fire behaviour of building materials and elements Part 1: Classification of building materials Requirements and testing
Key Features
  • Elegant spray-painted finish cabinet with combustion chamber dimensions: 700 mm (L) × 400 mm (W) × 600 mm (H)
  • Adjustable flame height, automatic timing, flame monitoring, ignition, and protection against ignition faults
  • Adjustable flame impingement and combustion duration from 0 min 00 s to 99 min 99 s
  • Test burning angles: 0° (vertical) and 45° with horizontal burner adjustment
  • Tempered glass door for direct observation throughout testing
  • All internal fixtures manufactured from corrosion-resistant stainless steel
  • Equipped with stainless steel sample holders and flame height gauge
  • High automation level with accurate experimental data and easy operation
  • American Humboldt imported burner with φ0.17mm hole diameter and 4 φ4mm air conditioning holes
  • Real-time monitoring of experimental data with query capability for 6 samples and alarm content
Control System Specifications
  • Programmable Logic Controller (PLC) Control
  • Automatic timing, flame detection, ignition, and ignition abnormal protection

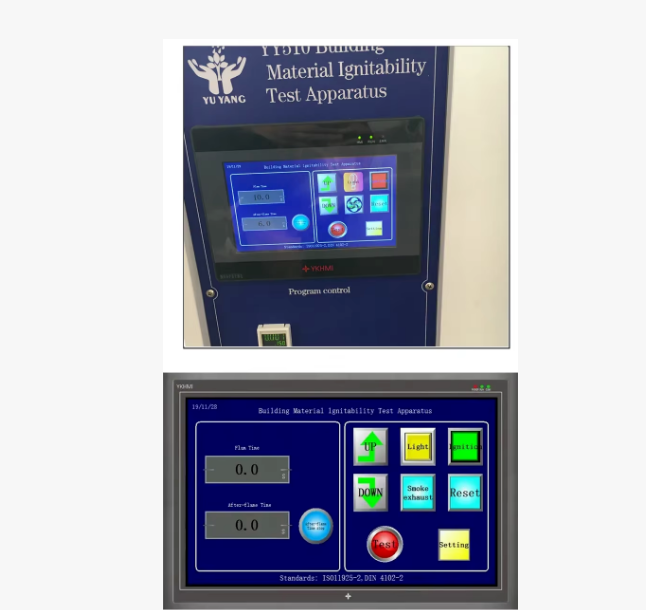

  • LCD touch screen display interface
  • Real-time monitoring of experimental data with query capability for 6 samples and alarm content
