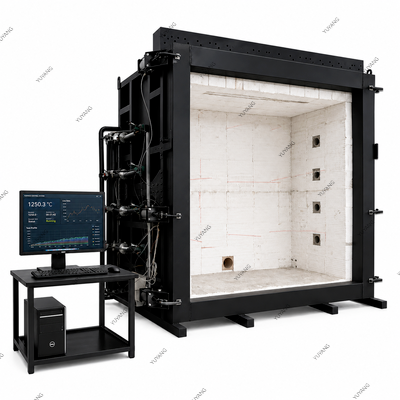

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
Specifications
Frame Material :
Grade A structural steel
Model Number :
YY407
Material :
SUS 304 Stainless Steel
Price :
Negotiation
Furnace Dimensions :
3000mm (W) × 3000mm (H) × 1500mm (D)
Supply Ability :
2 sets per quarter
Item Name :
Vertical Fire Resistance Testing Equipment
MOQ :
1 set
Delivery Time :
35~40 work days
Combustion Gas :
Propane & petroleum liquefied gas
Payment Terms :
T/T
Standard :
En 1363-1 ISO 834 BS 476-20 ASTM E119
Refractory Brick :
Max 1750°C; Long-term 1600°C
Service Life :
≥15–20 years
Brand Name :
YUYANG
Application :
Flammability Analyzer for Building Materials
Packaging Details :
Plywood Box
Certification :
BS 476 (20-23) – BS EN 1363 (1-2) – BS EN 1364 (1) – BS EN 1365 (1) BS EN 1366 (1-3) - BS EN 1634-1 – ASTM E 119 – ASTM E 814 - UL10 (B-C) - UL 263 – UL 1709 - UL10 (B-C) – UL 1479 – UL 2079 -- ISO 834 (1, 4, 8) - ISO 3008 – ISO 3009
Place of Origin :
China
Required Space :
≥150 m², ceiling height ≥5.5 m
Description

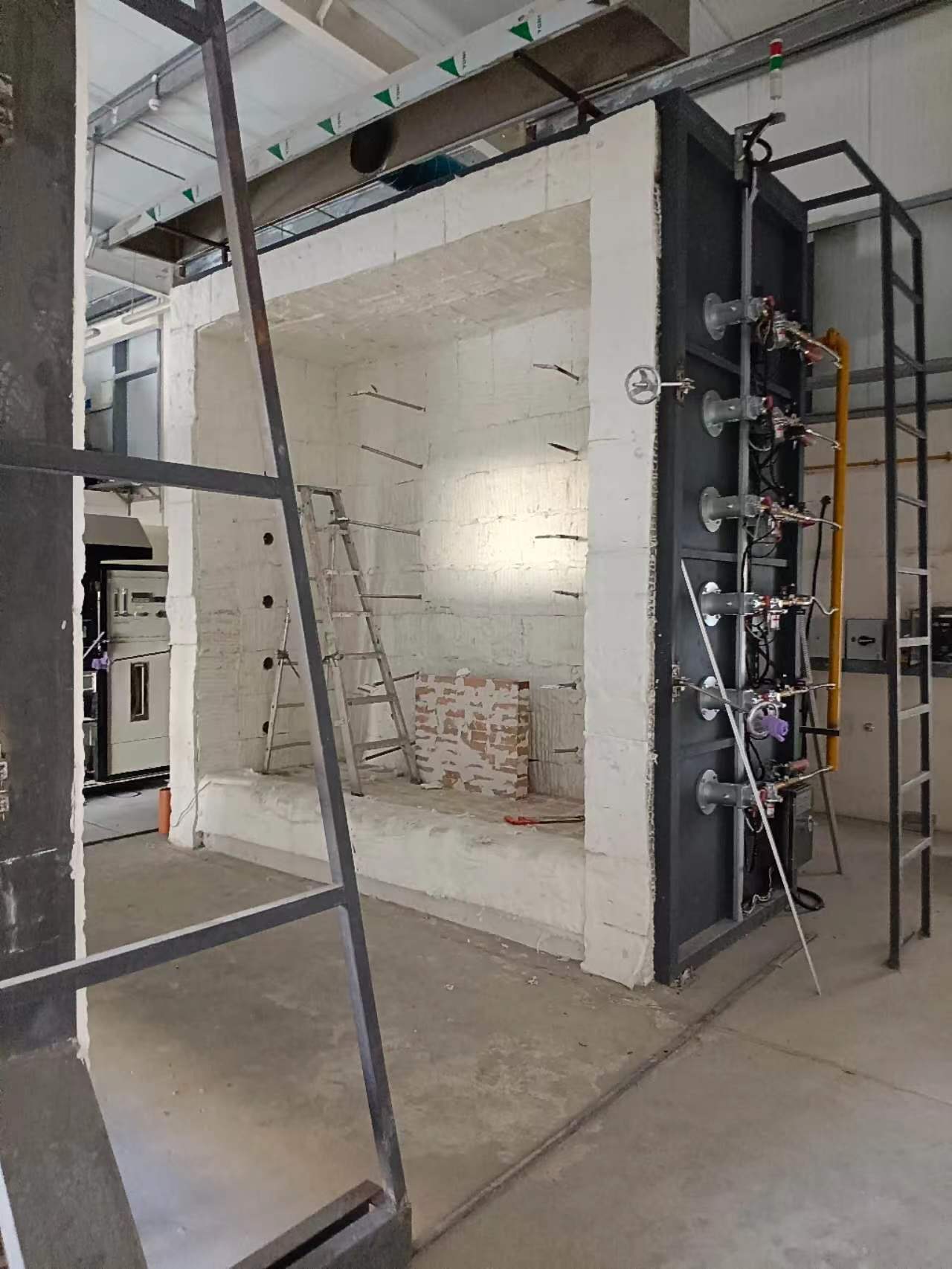

ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
Product Overview
The ASTM E119 Laboratory Vertical Fire Resistance Test Furnace for Building Construction and Materials is a comprehensive testing system comprising fire test furnace, control cabinet, gas system, purification system, sample test stand, gas flow measurement system, temperature measurement system, and pressure measurement and control system.
Applications
This furnace is designed for fire resistance testing of doors and shutter assemblies installed in vertical separating elements, including hinged doors, pivot doors, horizontal sliding doors, vertical sliding doors, rolling doors, folding doors, flap doors, movable wall panels, and building doors with or without shutters.
Compliance Standards
  • GB/T9978.1-2008 "Fire test method for building components, Part 1: General requirements"
  • GB/T9978.3-2008 and ISO834-3:1994 "Test methods for fire resistance of building components, Part 3: Test methods and test data application notes"
  • GB/T9978.4-2008 and ISO834-4:2000 "Test methods for fire resistance of building components, Part 4: Particular requirements for load-bearing vertical partition members"
  • GB/T 9978.8-2008 and ISO834-8:2000 "Building component fire test method, Part 8: Special requirements for non-load bearing vertical partition members"
  • GB/T 7633-2008 "Door and roller blind fire test method" standard requirements
Key Features
  • Combustion chamber dimensions: 3000mm (width) × 3000mm (height) × 1300mm (depth)
  • Lined with 1400-class insulation bricks, refractory filling blocks, and slag plates
  • Furnace top features special-shaped bricks with in-situ refractory lining
  • Strategic application of diatomaceous earth insulation and super thermal insulation materials
  • 42% dense alumina refractory brick lining for 6-hour high-temperature testing
  • Customizable vertical test sample fixation systems
  • Low carbon steel construction reinforced with C-channel steel and H-beams
  • Four observation ports with heat-resistant quartz glass for complete sample monitoring
  • Air cooler insulating frame with lightweight aluminum fiberboard sliding doors
Technical Specifications
Air Supply ≥ 3200 m³/h
Supply Air Flow ≥ 7500 m³/h
Exhaust Flow Rate ≥ 8000 m³/h
Deformation Accuracy ±2mm
Environment and Backfire Surface ±2.5℃
Furnace Pressure ±3pa
Other Temperature ±10℃
Pressure Sensor Accuracy ±0.5pa
Axial Compression/Expansion Measurement ±0.5mm
Load Measurement ±2.5% of test load
Deformation Measurement ±2mm, Time: ±1s/h
Combustion Gas Propane (95% purity) or petroleum liquefied gas
Furnace Size 3.0M (height) × 3.0M (width) × 1.5M (depth)
Power Requirements AC380V±10%, three-phase five-wire system, 50Hz, 45kW
ASTM E119 Laboratory Large Scale Fire Resistance Vertical Test Furnace
This advanced fire testing system represents cutting-edge technology in building material fire resistance evaluation, offering comprehensive testing capabilities with superior safety, reliability, and automation features.
