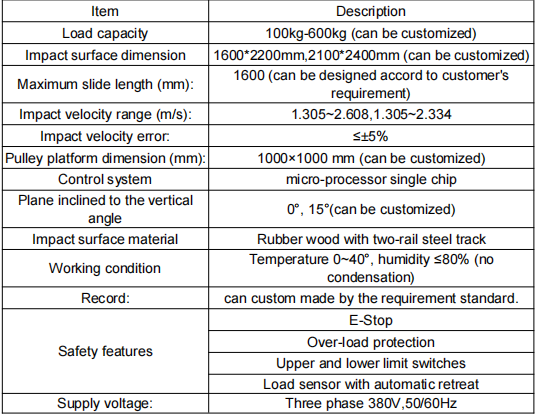

Specifications
Model Number :
YYP-004
Plane inclined to the vertical angle :
0°, 15°(can be customized)
MOQ :
1
Packaging Details :
Standard Wooden Case
Control system :
micro-processor single chip
Supply Ability :
15 sets per month
Impact surface dimension 1 :
1600*2200mm,2100*2400mm (can be customized)
Pulley platform dimension (mm) :
1000×1000 mm (can be customized)
Brand Name :
YUYANG
Impact surface material :
Rubber wood with two-rail steel track
Model :
YY003
Price :
1699
Maximum slide length (mm): :
1600 (can be designed accord to customer's requirement)
Certification :
ISO
Safety features :
E-Stop
Delivery Time :
10 days
Load capacity :
100kg-600kg (can be customized)
Working condition :
Temperature 0~40°, humidity ≤80% (no condensation)
Impact velocity range (m/s): :
1.305~2.608,1.305~2.334
Place of Origin :
China
Record: :
can custom made by the requirement standard.
Description
Slope Impact Test Machine for Package ISTA 3E 3J 6 Inclined Impact Tester 100~600kg Custom Load
Slope Impact Test Machine with 100~600kg Custom Load for ISTA 3E 3J 6 Compliance and Remote Control Operation Slope Impact Test Machine with 100~600kg Custom Load for ISTA 3E 3J 6 Compliance and Remote Control Operation
Product Overview

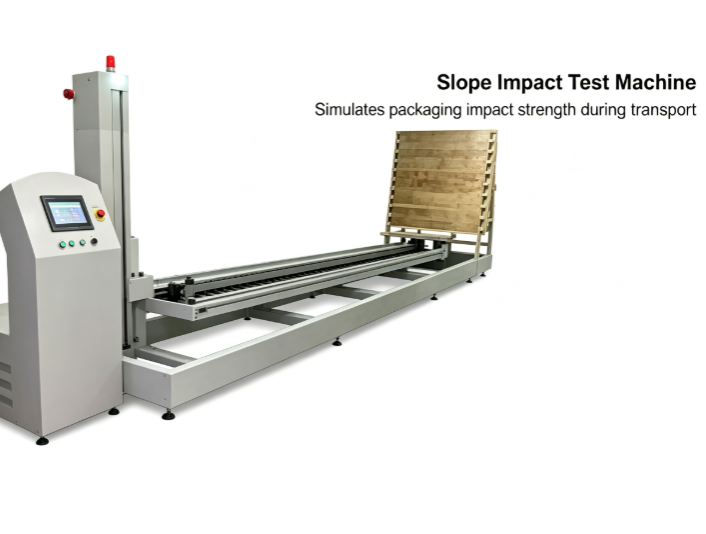

The Slope Impact Test Machine simulates the impact strength of packaging in real transportation circumstances. This equipment is applicable for testing piled-up goods, electromechanical slide scenarios, engine loading conditions, and product transportation environments.

Applications

This product serves as a testing machine for scientific research institutions, colleges, packaging technique test centers, packaging material manufacturers, and foreign trade or transport departments.

Features & Functions
  • Flexible location motor-driven pulley for easy installation and speed adjustment
  • Low slope height for convenient specimen fixing with strong impact resistance board ensuring structural fastness
  • Adjustable pulley to horizontal position for customer specimen fixing with flexible cylinder-driven angular adjustment
  • Remote control operation for complete test staff safety
  • Simple installation requiring only ground fixing without complicated operations
Design Standards
Test Standards: ISTA 3E, 3J & ISTA 6 (inclined impact test)
