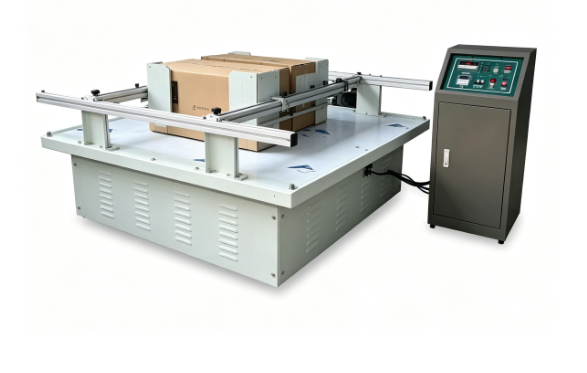

Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation
Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation
Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation
Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation
Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation
Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation

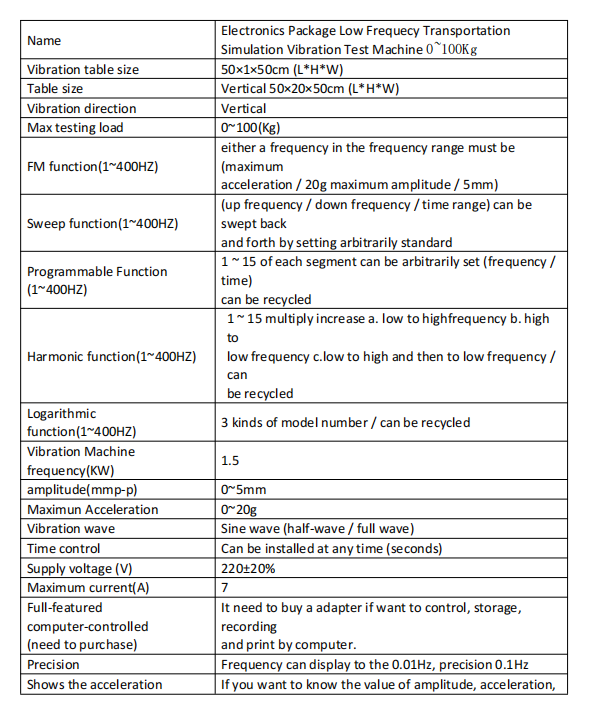

Specifications
Model Number :
YYP-006
FM function(1~400HZ) :
either a frequency in the frequency range must be (maximum acceleration / 20g maximum amplitude / 5mm)
MOQ :
1
Delivery Time :
10 days
Max testing load :
0~100(Kg)
Payment Terms :
L/C,D/A,D/P,T/T
Name :
Electronics Package Low Frequecy Transportation Simulation Vibration Test Machine 0~100Kg
Vibration direction :
Vertical
Brand Name :
YUYANG
Sweep function(1~400HZ) :
(up frequency / down frequency / time range) can be swept back and forth by setting arbitrarily standard
Packaging Details :
Standard Wooden Case
Price :
2699
Vibration table size :
50×1×50cm (L*H*W)
Supply Ability :
15 sets per month
Model :
YY006
Programmable Function (1~400HZ) :
1 ~ 15 of each segment can be arbitrarily set (frequency / time) can be recycled
Certification :
ISO
Table size :
Vertical 50×20×50cm (L*H*W)
Place of Origin :
China
Harmonic function(1~400HZ) :
1 ~ 15 multiply increase a. low to highfrequency b. high to low frequency c.low to high and then to low frequency / can be recycled
Description
Vertical Simulation Transport Vibration Tester
0-100kg Load 1~400Hz Sine Wave Vibration Test Machine For Package
Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation Vertical Vibration Test Machine with 0-100kg Load and 1~400Hz Sine Wave for Package Transportation Simulation
Note: 1g = 9.8m/s² acceleration (unit g) = 0.002 * f² (frequency units HZ) * D (amplitude units mmp-p)
Equipment Summary
Electronics package low frequency transportation simulation vibration test machine is suitable for electronic, electromechanical, optical communications, packaging, auto parts, toys and other industry research, development, quality control and manufacturing. It is designed for quality control inspection and production line applications, and is particularly suitable for finished product quality inspection to improve product quality.
Main Functions
  • Sine wave (half-wave / full wave)
  • FM, sweep, programmable
  • Frequency-doubling of the number
  • Amplitude control
  • Maximum acceleration
  • Time control
  • 485 communication interface
  • Simple set acceleration
  • Simple fixed amplitude
