Micro-Computer Controlled Friction Package Testing Equipment with Double Heating Sealing Jaws Compliant with ASTM D1894 Standard
Micro-Computer Controlled Friction Package Testing Equipment with Double Heating Sealing Jaws Compliant with ASTM D1894 Standard
Micro-Computer Controlled Friction Package Testing Equipment with Double Heating Sealing Jaws Compliant with ASTM D1894 Standard
Micro-Computer Controlled Friction Package Testing Equipment with Double Heating Sealing Jaws Compliant with ASTM D1894 Standard
Micro-Computer Controlled Friction Package Testing Equipment with Double Heating Sealing Jaws Compliant with ASTM D1894 Standard
Micro-Computer Controlled Friction Package Testing Equipment with Double Heating Sealing Jaws Compliant with ASTM D1894 Standard
Specifications
Model Number :
YYP-008
Sealing Jaws :
50mmx10mm Teflon Coated
MOQ :
1
Delivery Time :
10 days
Sealing Pressure :
0.15MPa~0.7MPa
Payment Terms :
L/C,D/A,D/P,T/T
Sealing Temperature :
Ambient~250℃
Hot Tack Dwell Time :
0.1~9999s
Brand Name :
YUYANG
Sealing Jaws Heating :
Double Heating
Packaging Details :
Standard Wooden Case
Heat Seal Dwell Time :
0.1~9999s
Place of Origin :
China
Accuracy :
0.5 F.S.
Price :
2699
Temp Accuracy :
±0.2℃
Supply Ability :
15 sets per month
Model :
YY008
Load Cell :
200N(Optional:30N50N100N500N)
Certification :
ISO
Resolution :
0.01N
Stroke :
500mm
Description

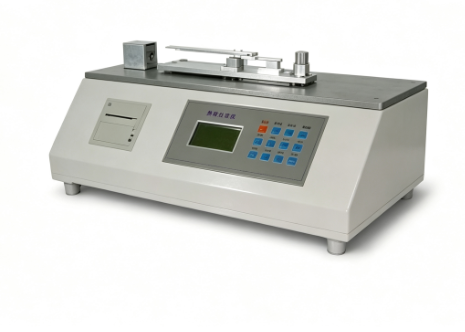

YYP-008 Friction Plastic Package Testing Equipment Micro-Computer Controlled

The YYP-008 Friction Plastic Package Testing Equipment with Micro-Computer Control is designed for precise measurement of static and kinetic coefficients of friction. This instrument strictly complies with ASTM D1894 standard and is professionally applicable for testing various materials including plastic films, sheets, rubber, paper and paper board, PP woven bags, fabrics, metal-plastic composite belts for communication cables, conveyor belts, wood, coatings, brake pads, windshield wipers, shoe materials, and tires.

By testing the frictional properties of materials, technical indexes can be controlled to meet production requirements. Additionally, the instrument can measure the smoothness of cosmetics, eye drops, and other daily products.

Micro-Computer Controlled Friction Package Testing Equipment with Double Heating Sealing Jaws Compliant with ASTM D1894 Standard
Key Features
  • Static and kinetic coefficients of friction can be tested simultaneously
  • Automatic delay timing and automatic COF zeroing functions ensure sufficient contact time between tested specimens
  • Sliding plane and sled treated by degaussing and remanence detection to effectively reduce system errors
  • Micro-computer controlled with LCD display, PVC operation panel, and menu interface for convenient testing and data viewing
  • Top quality components from world-renowned brands ensure reliable overall product performance
  • Professional operating software supports automatic judgment of smoothness status and statistical analysis of group specimen test results
  • Integrated micro-printer automatically prints test reports for single specimens or groups of specimens
Micro-Computer Controlled Friction Package Testing Equipment with Double Heating Sealing Jaws Compliant with ASTM D1894 Standard Micro-Computer Controlled Friction Package Testing Equipment with Double Heating Sealing Jaws Compliant with ASTM D1894 Standard
Compliance Standards
ASTM D1894 • ISO 8295
