Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker
Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker
Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker
Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker
Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker
Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker

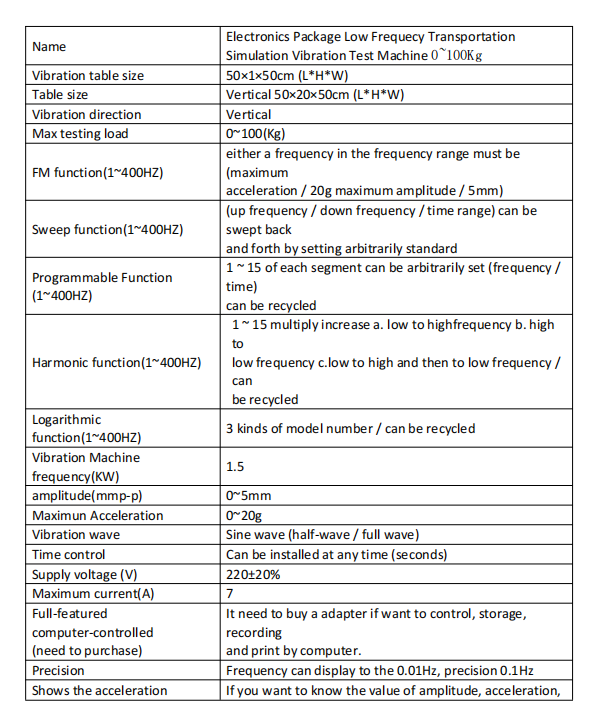

Specifications
Model Number :
YYP-006
FM function(1~400HZ) :
either a frequency in the frequency range must be (maximum acceleration / 20g maximum amplitude / 5mm)
MOQ :
1
Delivery Time :
10 days
Max testing load :
0~100(Kg)
Payment Terms :
L/C,D/A,D/P,T/T
Name :
Electronics Package Low Frequecy Transportation Simulation Vibration Test Machine 0~100Kg
Vibration direction :
Vertical
Brand Name :
YUYANG
Sweep function(1~400HZ) :
(up frequency / down frequency / time range) can be swept back and forth by setting arbitrarily standard
Packaging Details :
Standard Wooden Case
Price :
2699
Vibration table size :
50×1×50cm (L*H*W)
Programmable Function (1~400HZ) :
1 ~ 15 of each segment can be arbitrarily set (frequency / time) can be recycled
Certification :
ISO
Supply Ability :
15 sets per month
Model :
YY006
Table size :
Vertical 50×20×50cm (L*H*W)
Place of Origin :
China
Harmonic function(1~400HZ) :
1 ~ 15 multiply increase a. low to highfrequency b. high to low frequency c.low to high and then to low frequency / can be recycled
Description

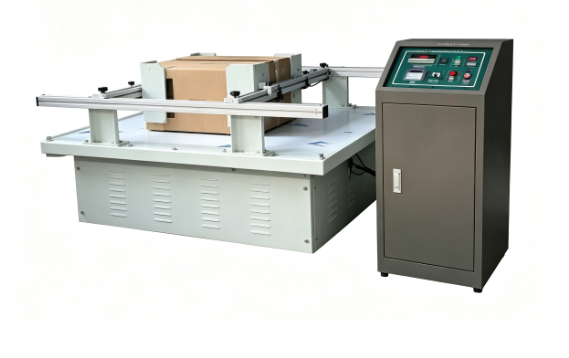

Electronics Package Transportation Simulation Vibration Test Machine
0~100Kg Vertical Vibration Shaker 1~400Hz
Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker Vertical Vibration Test Machine 0~100Kg 1~400Hz Transportation Simulation Vibration Shaker
Note: 1g = 9.8m/s² acceleration (unit g) = 0.002 * f² (frequency units HZ) * D (amplitude units mmp-p)
Equipment Overview
Electronics package low frequency transportation simulation vibration test machine is suitable for electronic, electromechanical, optical communications, packaging, auto parts, toys and other industry research, development, quality control and manufacturing. It is ideal for quality control inspection and production line applications, particularly for quality inspection of finished products to improve product quality.
Main Functions
  • Sine wave (half-wave / full wave)
  • FM, sweep, programmable
  • Frequency-doubling of the number
  • Amplitude control
  • Maximum acceleration
  • Time control
  • 485 Communication interface
  • Simple set acceleration
  • Simple fixed amplitude
