Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation
Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation
Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation
Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation
Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation
Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation
Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation
Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation
Specifications
Model Number :
YYF006
MOQ :
1PCS
Delivery Time :
15-20 work days
Standards :
ISO 12136, ASTM E 2058, FM 4910
Price :
Negotiation
Infrared CO2 analyzer CO2 range :
0 to 10%
Supply Ability :
15 sets per month
Sample weighing range :
0~2000g, accuracy: 0.1g
Certification :
ISO
Compressor principle :
cold trap: 0 to 5 degrees
Place of Origin :
China
Payment Terms :
T/T
Paramagnetic oxygen analyzer, concentration range :
:0～25％
Imported diaphragm pump, flow rate :
33 l / min
Brand Name :
YUYANG
Thermopile-type heat flow heat flux meter :
range 0~100k W/m²,accuracy ±3%, repeatability ± 0.5%
Description
Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation
Automatic FPA Fire Testing Equipment for Polymer Plastic Building Material Flame Propagation Performance Evaluation
The Automatic Fire Propagation Apparatus is designed for comprehensive fire testing of polymers, plastics, building products, electrical materials, and other combustible materials. By integrating radiant heating, automatic ignition, weighing, gas analysis, and smoke measurement capabilities, this system provides complete data on how materials ignite, burn, and contribute to fire propagation.
Key Advantages
  • Wide material compatibility
  • Fully automated test process
  • Precise flame and ignition control
  • Integrated oxygen and CO₂ analysis
  • Stable exhaust and airflow management
  • Ideal for product development and material comparison
Main Test Parameters
Time to Ignition
Critical Heat Flux
Thermal Response Parameter (TRP)
Mass Loss Rate
Effective Heat of Combustion
Chemical Heat Release Rate
Convective Heat Release Rate
Fire Propagation Index (FPI)
Smoke Yield
Smoke Generation Rate
Oxygen Concentration
Carbon Dioxide Concentration
Material Applications
Polymer materials
Plastic components
Electrical and electronic materials
Cable materials
Automotive materials
Building products
Composite materials
Insulation materials
Industrial components
Flame-retardant materials
End-use products and assemblies
Ideal For
  • Fire testing and research laboratories
  • Universities, colleges, and technical institutes
  • Material production and manufacturing companies
  • Quality assurance and inspection departments
  • R&D and product engineering centers
  • Independent testing organizations
  • Compliance and certification testing facilities
  • Fire protection and safety engineering projects

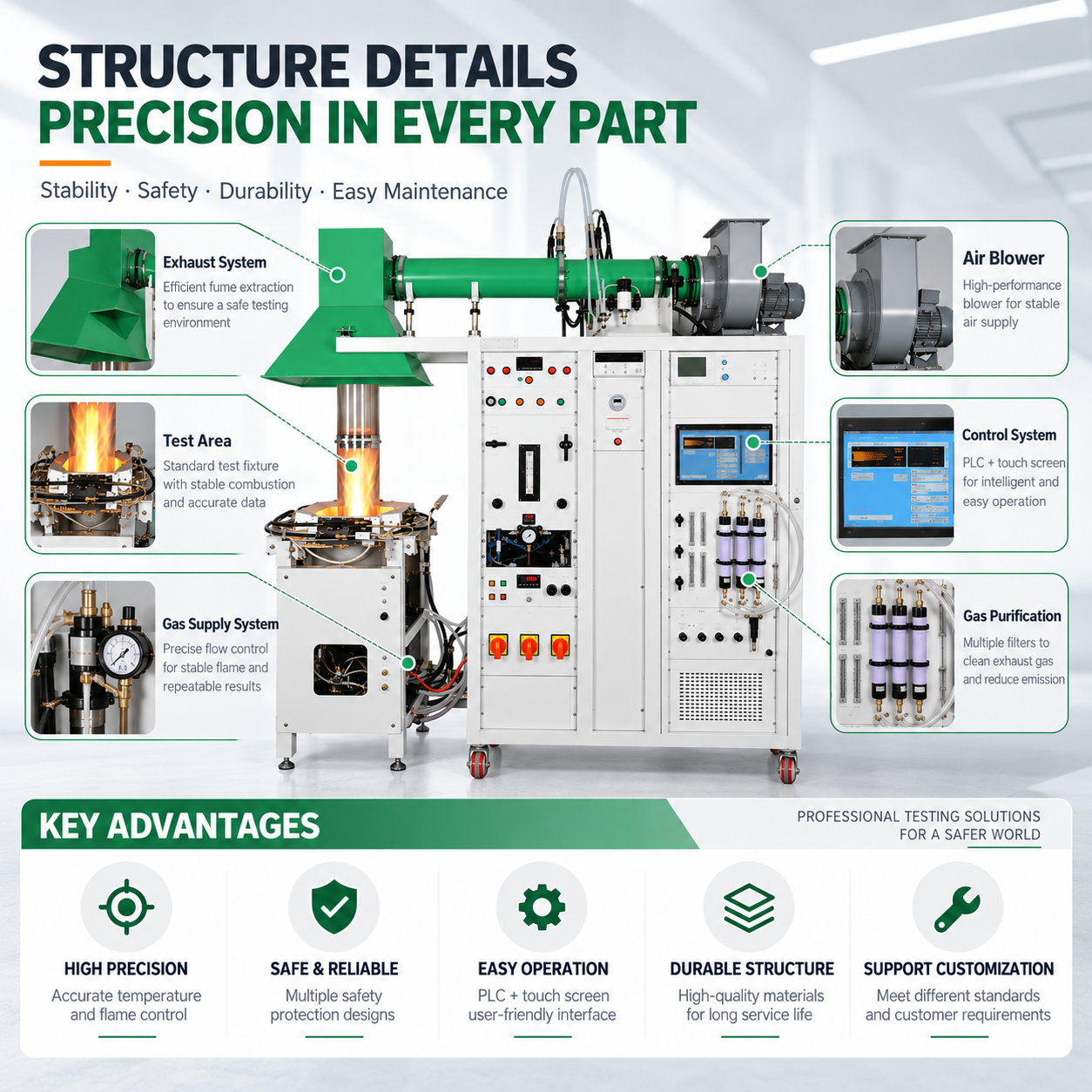

Structural Features
  • Integrated rack-type structure
  • Computer-controlled testing process
  • Automatic ignition and timing
  • Infrared heating system
  • High-precision load cell weighing
  • Controlled exhaust and airflow system
