ISO 14616 Standard Heat Shrink Tester with ±0.5°C Accuracy for 3 Groups Specimen Testing
ISO 14616 Standard Heat Shrink Tester with ±0.5°C Accuracy for 3 Groups Specimen Testing
ISO 14616 Standard Heat Shrink Tester with ±0.5°C Accuracy for 3 Groups Specimen Testing
ISO 14616 Standard Heat Shrink Tester with ±0.5°C Accuracy for 3 Groups Specimen Testing
ISO 14616 Standard Heat Shrink Tester with ±0.5°C Accuracy for 3 Groups Specimen Testing
ISO 14616 Standard Heat Shrink Tester with ±0.5°C Accuracy for 3 Groups Specimen Testing

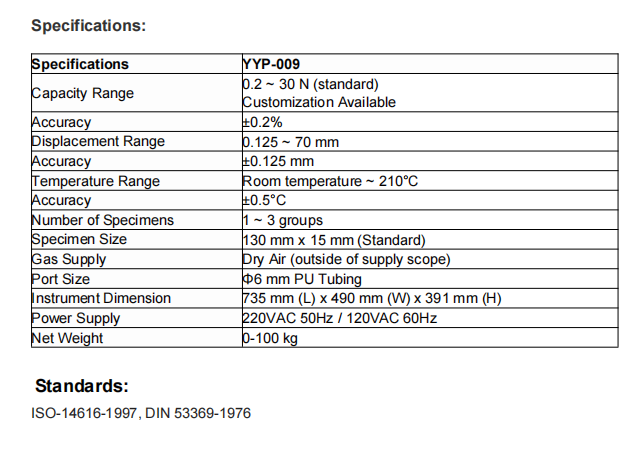

Specifications
Capacity Range :
0.2 ~ 30 N (standard) Customization Available
Model Number :
YYP-009
Temperature Range :
Room temperature ~ 210°C
Port Size :
Φ6 mm PU Tubing
MOQ :
1
Packaging Details :
Standard Wooden Case
Specimen Size :
130 mm x 15 mm (Standard)
Net Weight :
0-100 kg
Supply Ability :
15 sets per month
Model :
YY009
Brand Name :
YUYANG
Instrument Dimension :
735 mm (L) x 490 mm (W) x 391 mm (H)
Displacement Range :
0.125 ~ 70 mm
Place of Origin :
China
Number of Specimens :
1 ~ 3 groups
Price :
1999
Gas Supply :
Dry Air (outside of supply scope)
Power Supply :
220VAC 50Hz / 120VAC 60Hz
Delivery Time :
10 days
Accuracy :
±0.5°C
Certification :
ISO
Description
Wrapping Heat Shrinkage Food Package Testing Equipment / Film Heat Shrink Tester for Plastic Packaging Film
Product Overview

Food Package Wrapping Heat Shrinkage Testing Equipment, Film Heat Shrink Tester

ISO 14616 Standard Heat Shrink Tester with ±0.5°C Accuracy for 3 Groups Specimen Testing
Product Description

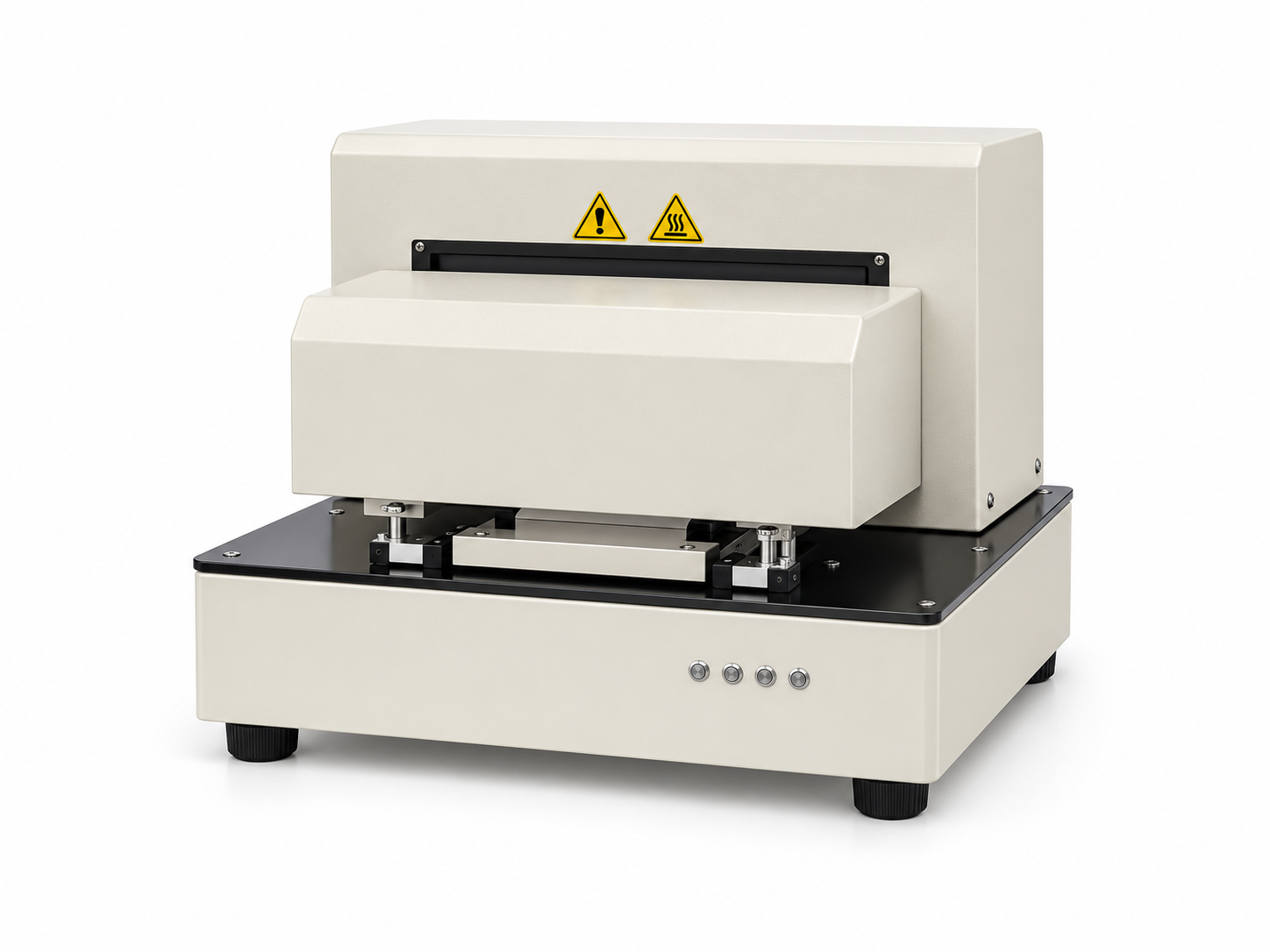

Food Package Wrapping Heat Shrinkage Testing Equipment is designed based on the ISO 14616 international standard. It is applicable to the precisely quantitative determination of the shrinking force, contracting force and shrinkage ratio for heat-shrinkable plastic films during the thermal shrinkage process.

Key Features
  • 3 groups of distinct or identical specimens can be tested at one operation
  • Shrinkage parameters can be accurately obtained by high precision load cell and displacement transducer
  • The system displays the real-time value of shrinking force, contracting force and shrinkage ratio
  • Intelligent reminder for sensor calibration guarantees a safe test environment
  • Viewing and printing of historical data are available in this instrument
Testing Capabilities
Shrinking Force and Contracting Force

Test the shrinking or contracting force of heat-shrinkable films at specified test conditions

Shrinkage Ratio

Test the shrinkage ratio of heat-shrinkable films at specified test conditions
