PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test
PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test
PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test
PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test
PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test
PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test

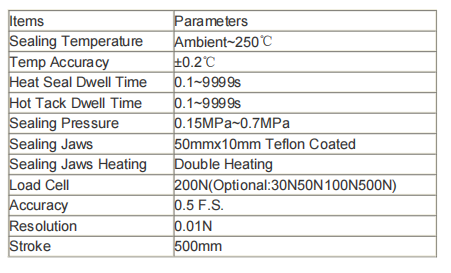

Specifications
Model Number :
YYP-007
Sealing Jaws Heating :
Double Heating
MOQ :
1
Packaging Details :
Standard Wooden Case
Sealing Jaws :
50mmx10mm Teflon Coated
Supply Ability :
15 sets per month
Temp Accuracy :
±0.2℃
Sealing Pressure :
0.15MPa~0.7MPa
Brand Name :
YUYANG
Load Cell :
200N(Optional:30N50N100N500N)
Model :
YY007
Price :
2699
Heat Seal Dwell Time :
0.1~9999s
Delivery Time :
10 days
Sealing Temperature :
Ambient~250℃
Accuracy :
0.5 F.S.
Certification :
ISO
Stroke :
500mm
Hot Tack Dwell Time :
0.1~9999s
Place of Origin :
China
Resolution :
0.01N
Description

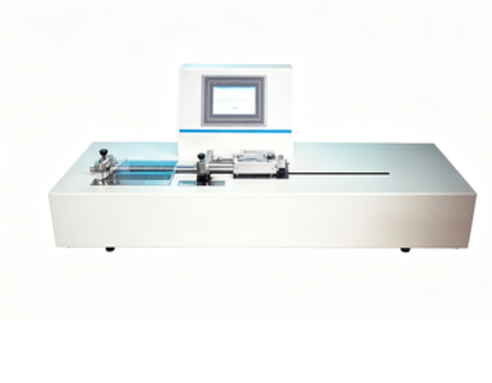

YYP-007 PLC Control Hot Tack Tester
This flexible packaging hot tack testing machine measures the strength of heat seals formed between thermoplastic surfaces immediately after the seal has been made and before it cools to room temperature. The hot tack tester is especially important for vertical form-fill-seal packaging applications.
PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test PLC Control Hot Tack Tester with Double Heating Sealing Jaws and 7 Inch TFT Touch Screen for Heat Seal Strength Test
Key Features
  • Hot tack, heat seal, peeling and tensile test items integrated in one instrument
  • Sealing jaws controlled by P.I.D. temperature with fast heating and stable temperature maintenance
  • 7-inch TFT touch screen for easy operation
  • PLC control system
  • Aluminum encapsulated sealing jaws for uniform heating
  • Multi-group parameter saving capability
  • Adjustable testing speeds
  • Auto zeroing, overload and over travel protection
  • Manual and foot switch starting test with anti-scald design
  • RS 232 port and professional software included
Compliance Standards
ASTM F1921, ASTM F2029, QB/T2358, YBB 00122003
