Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function
Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function
Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function
Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function
Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function
Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function

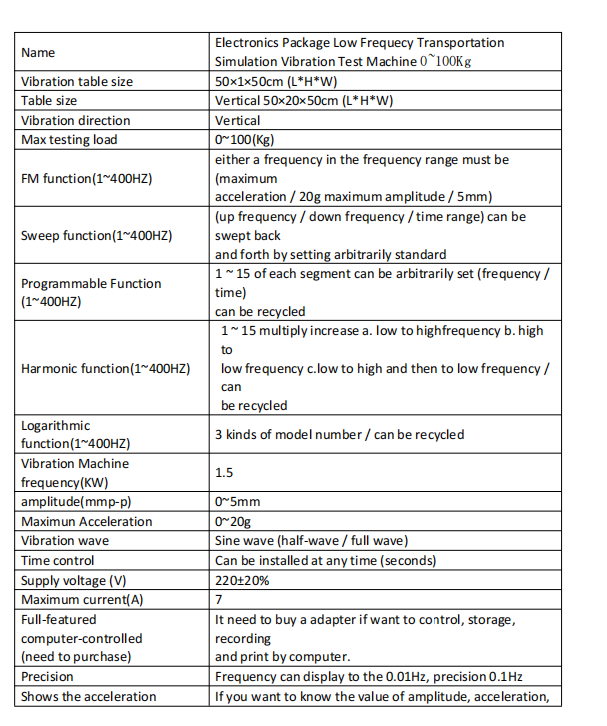

Specifications
Model Number :
YYP-006
Sweep function(1~400HZ) :
(up frequency / down frequency / time range) can be swept back and forth by setting arbitrarily standard
MOQ :
1
Delivery Time :
10 days
FM function(1~400HZ) :
either a frequency in the frequency range must be (maximum acceleration / 20g maximum amplitude / 5mm)
Payment Terms :
L/C,D/A,D/P,T/T
Vibration table size :
50×1×50cm (L*H*W)
Max testing load :
0~100(Kg)
Packaging Details :
Standard Wooden Case
Brand Name :
YUYANG
Programmable Function (1~400HZ) :
1 ~ 15 of each segment can be arbitrarily set (frequency / time) can be recycled
Vibration direction :
Vertical
Place of Origin :
China
Logarithmic function(1~400HZ) :
3 kinds of model number / can be recycled
Price :
2699
Table size :
Vertical 50×20×50cm (L*H*W
Supply Ability :
15 sets per month
Model :
YY006
Harmonic function(1~400HZ) :
1 ~ 15 multiply increase a. low to highfrequency b. high to low frequency c.low to high and then to low frequency / can be recycled
Certification :
ISO
Vibration Machine frequency(KW :
1.5
Description

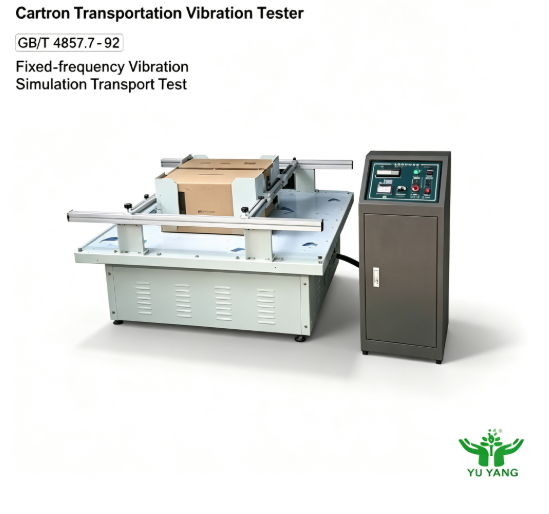

Package Transport Simulation Vibration Test Machine Vertical Vibration Shaker 0~100Kg
Package Transport Simulation Vibration Test Machine Vertical Vibration Shaker 0~100Kg
Vertical Vibration Shaker 0~100Kg Transport Simulation Tester with Programmable Function
Note: 1g = 9.8m/s² acceleration (unit g) = 0.002 × f² (frequency units HZ) × D (amplitude units mmp-p)
Equipment Summary
Electronics package low frequency transportation simulation vibration test machine is suitable for electronic, electromechanical, optical communications, packaging, auto parts, toys and other industry research, development, quality control and manufacturing. It is ideal for quality control inspection and production line/assembly line applications. This equipment is particularly suitable for quality inspection of finished products to improve product quality.
Main Functions
  • Sine wave (half-wave / full wave)
  • FM, sweep, programmable
  • Frequency-doubling of the number
  • Amplitude control
  • Maximum acceleration
  • Time control
  • 485 communication interface
  • Simple set acceleration
  • Simple fixed amplitude
