Fabrics Induction Textile Testing Equipment For Electrostatic 1500r/Min
Fabrics Induction Textile Testing Equipment For Electrostatic 1500r/Min
Fabrics Induction Textile Testing Equipment For Electrostatic 1500r/Min
Fabrics Induction Textile Testing Equipment For Electrostatic 1500r/Min
Fabrics Induction Textile Testing Equipment For Electrostatic 1500r/Min
Fabrics Induction Textile Testing Equipment For Electrostatic 1500r/Min
Fabrics Induction Textile Testing Equipment For Electrostatic 1500r/Min
Fabrics Induction Textile Testing Equipment For Electrostatic 1500r/Min
Specifications
Brand Name :
YUYANG
Model Number :
YY030
Place of Origin :
China
MOQ :
1PCS
Price :
$1000
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
7-30 Days
Packaging Details :
Wooden Box
Product Name :
Fabrics Induction Type Electrostatic Tester
Usage :
Electrostatic Induction Fabric Test
Voltage Range :
0 ~ 10KV
Rotary Speed :
1500r / Min
Sample Size :
45*45mm
Power Supply :
AC220V 50Hz 60W
Weight :
85Kg
Dimensions :
720 * 560 * 1400mm
Description

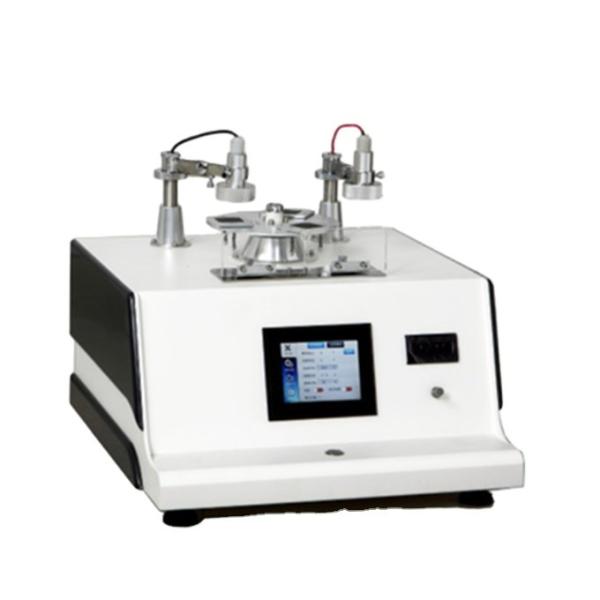

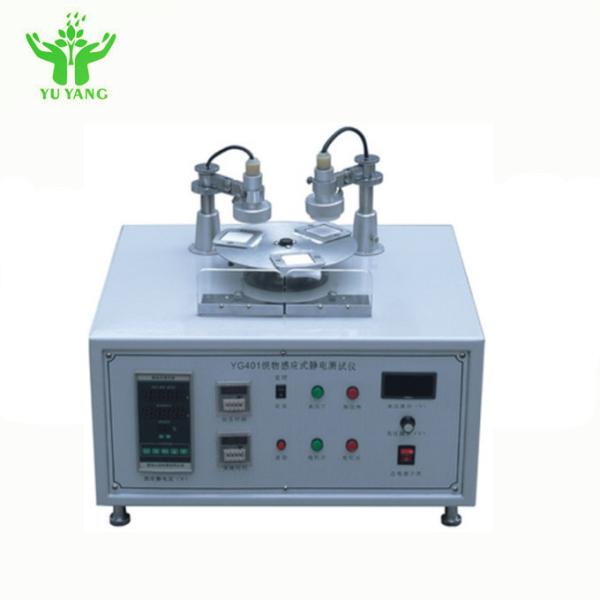

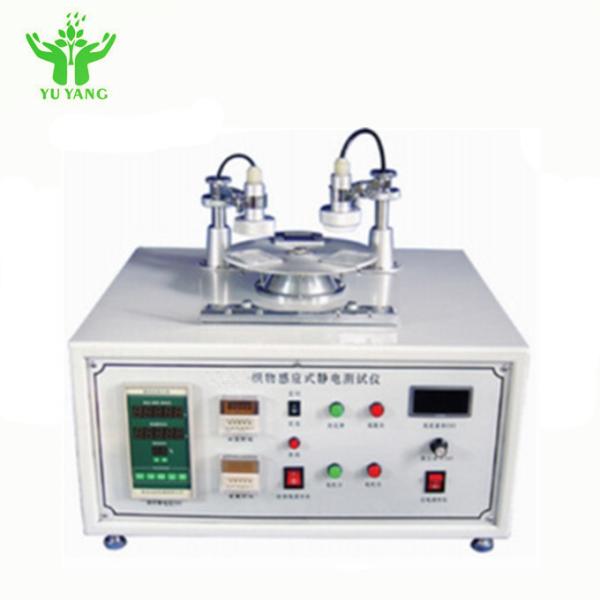

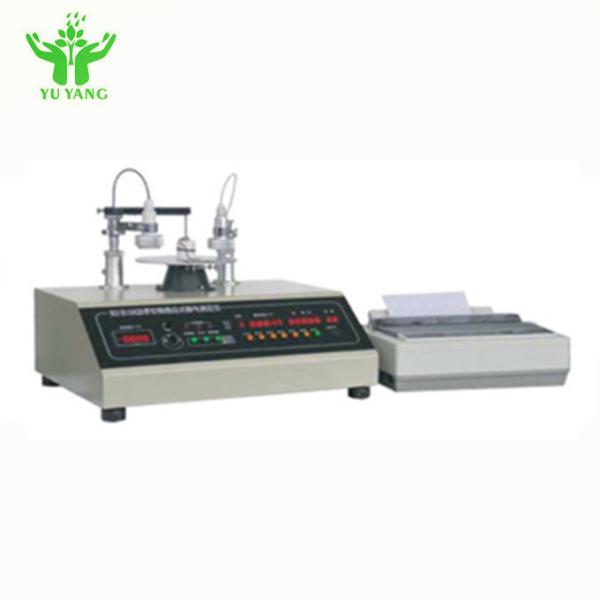

Fabrics Induction Type Electrostatic Tester Detector Machine

Description:

Fabrics Induction type Electrostatic Tester .With the Laboratory conditions, it can determine the electro-static properties of various textile raw materials and made-up goods (including fiber, yarn, fabrics,carpet, decoration fabrics). It can also be used to measure the electro-static performances to other sheets (plates) such as paper, rubber, plastic, composite sheets and so on.

Specifications:

Measuring Range of Electro-static Voltage: 0 ～ 10KV

Half-life Time Limit Range: 0 ～ 10000s,error±1s

Sample Tray Rotating Speed: ＞1000r/min

Discharge Time: 0 ～ 99s to be adjustable(

standard requirement:30s±0.1s)

Discharge Distance between Pin Electrode and Testing Specimen: 20mm

Measuring Space between Testing Sensing Probe and Testing Specimen: 15mm

Test Specimen Size: 60mm×80mm ( 3pcs )

Power Source: 220V 50HZ 300W

Applicable standards: GB/T12703；FZ/T010426

Fabrics Induction Textile Testing Equipment For Electrostatic 1500r/Min
