16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine
16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine
16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine
16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine
16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine
16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine
16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine
16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine
Specifications
Brand Name :
YUYANG
Model Number :
YYT045
Certification :
CE
Place of Origin :
China
MOQ :
1PCS
Price :
$1450
Payment Terms :
T/T
Delivery Time :
7-30 Days
Packaging Details :
Wooden Box
Product name :
Snap Button Pull Testing Machine
Application :
Toys Cloth Fabric Garment
Load capacity :
0~500N
Material :
SUS 304 Stainless Steel
Standard :
16 CFR 1500.51-53, ASTM F963, EN71-Part1, M&S P115A
Dimension :
280*230*735 mm
Description

16 CFR 1500 / EN 71 Toys Testing Equipment Snap Button Pull Testing Machine

Description:

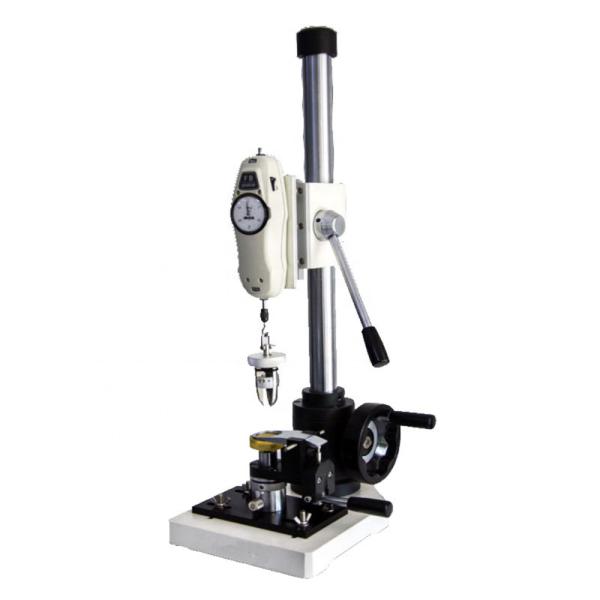

The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. By turning the hand wheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded. The capability of Snap tester can be enhanced with clamps & accessories for testing of other Snaps, Jean Buttons, Four Hole Buttons & Garments Accessories such as Zippers, Bows, Applique, Toggles, Hooks/Bars, and D-Rings, amongst others.Related testers(optional order)
The detachment of a snap or other part may be classed as small parts; Whilst broken small parts may require sharp point & sharp edge testing. As a result, additional testing equipment may be recommended, such as: Small Parts Cylinder, Sharp Point Tester, Sharp Edge Tester, Button Impact Tester, etc.

Accessories:

1. SANDOO Force Gauge FB-30K (300N, Resolution 2N, Accuracy +/-1%FS) - 1 Pc
2. Lower Fabric Clamp, Lever Armlocking - 1 Pc
3. Upper Stud Clamp - 1 Pc
4. Upper Snap Clamp -1 Pc
5. Three Pronged Clamp - 1 Pc
6. Two Pronged Clamp with screw - 1 Pc
7. Lower Grasp Button Kit - 1 Pc
8. Long Nose Vise Grip - 1 Pc
9. Calibration: 15 lbs Calibration Weight- 1 Pc
10. Safety Goggles - 1 Pc
11. Rubber Ring - 5 Pcs
12. Calibration Certificate - 1 Pc
13. Operation Manual - 1 Pc

Standards:

ASTM PS79-96, ASTM F963, EN 71-1, 16 CFR 1500.51-53, M&S P115A
Snap pull tester
Weight 45Kg
Dimensions 230 x 280 x 750 mm(LxWxH)
