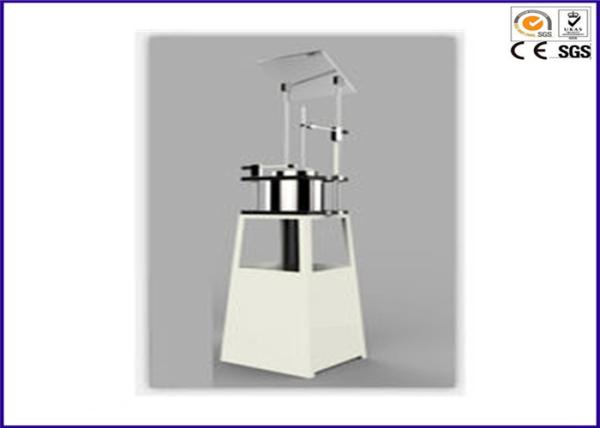

ISO1182 Building Materials Non-Combustibility Apparatus Flammability Testing Equipment

Products:

Non-Combustibility Apparatus for Building Material is designed and manfacture according to ISO 1182 international standards. Furnace temperature can quickly reach temperature equilibrium into the test program; temperature curve can print free.

Standards:

ISO 1182: building products --- incombustible fire reaction test test
BS 476-4 & 11 ASTM E 136

Main Features:

1, Intelligent test system with Patent design;
2, Stainless steel burner, beautiful and easy to clean;
3, The heating furnace size: Φ95 mm × Φ75 mm × 150 mm;
4, 3 mm × 0.2 m Ni 80% Cr 20% resistance band;
5, Air cover: Φ75 mm × 500 mm;
6, Thermocouple: insulated nickel-chromium - nickel - aluminum armored Φ1.5 mm ;
7, Equipment with the power controller;
8, The temperature balanced time at 750℃ is about 35min~40min;
9, Thermometers range: 0 ~ 1000℃ 5%;
10, Equipped with mirror to see the interal of the furnace.

Control System:

1, High degree of automation, test procedure safe and reliable, easy to operate;
2, To use of high-quality strip heater, furnace temperature was raised to 900 ºC;
3, PLC control system + SSR temperature control system extending the life of furnace:
4, PLC output signal to control the heating voltage is 0-110VAC. Eliminate the influence of voltage fluctuation on temperature.
5, Temperature control: 750ºC±2ºC;Resolution:0.1ºC;
6, The sample is move up-down into the furnace automatically by motor.
7, 7 "touch screen for control parameter setting and display / test data acquisition and preservation / screen monitoring / real-time temperature curve shows / historical curve and data query;
8, With an audible alarm and alarm display functions accidents.
9, To equipped with printer, to print the temperature curve.

Specification:

GBT 5464-2010.pdf
