Specifications
Brand Name :
YUYANG
Model Number :
YYJ-009
Certification :
EN 1022,EN 1729-2 and ANSI/BIFMA X5.1 12.4 Front Stability
Place of Origin :
CHINA
Supply Ability :
200 Set/Year
Packaging Details :
Wooden Package
Seat surface loading:Max: :
Seat surface loading:Max:600N, cumulation
Horizontal force: :
20N
Loading point position: :
seat surface center position,60mm from front edge
Seat surface diameter:loading pad: :
200mm
camber surface: :
R300mm,9 pins
Loading rob: :
19mm,both ends A type:sphere SR19mm B type: sharped surface 45 °
Dimensions(WxDxH): :
100x140x105cm
Weight: :
500kg
Air source: :
6kgf/cm2 stable air source
Description

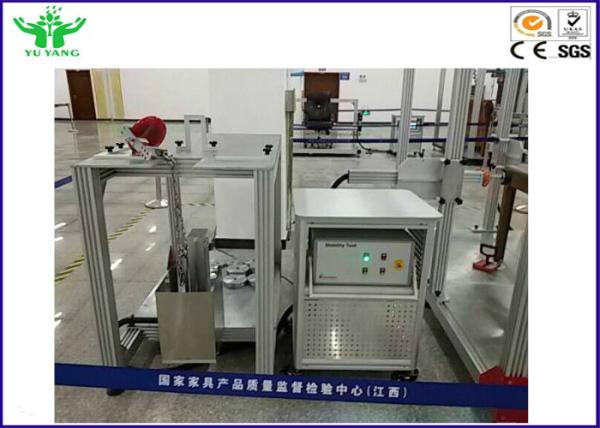

600N Furniture / Chairs Seats Front Stability Test Machine 60mm from front edge

Introduction:

This machine is suitable to test the seats (such as chairs, office chairs) front stability.

Principle:


Put the test-piece on the test table, blocked the front leg, apply specified force with forward 20N applied at seat loading point, check the article tends to overturn forward or not to determine the test-piece forward stability performance.

Technical parameters:

Seat surface loading:Max:600N, cumulation

Horizontal force:20N

Loading point position:seat surface center position,60mm from front edge

Seat surface loading pad:diameter:200mm, camber surface:R300mm,9 pins

Loading rob:19mm,both ends A type:sphere SR19mm B type: sharped surface 45 °

Weights basket lifting:manual control

Dimensions(WxDxH):100x140x105cm

Weight:500kg

Air source:6kgf/cm2 stable air source

Standards: EN 1022,EN 1729-2 and ANSI/BIFMA X5.1 12.4 Front Stability

Seat surface loading:Max: 600N, cumulation
Horizontal force: 20N
Loading point position: seat surface center position,60mm from front edge
Seat surface loading pad:diameter: 200mm,
Loading rob: both ends A type:sphere SR19mm B type: sharped surface 45 °
Weights basket lifting: manual control
Dimensions(WxDxH): 100x140x105cm
Weight: 500kg
Air source: 6kgf/cm2 stable air source
camber surface R300mm,9 pins

600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge600N Chairs Seats Front Stability Furniture Testing Machine 60mm from front edge
