9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown
9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown
9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown
9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown
9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown
9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown
9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown
9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown
9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown
9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown
Specifications
Brand Name :
HOOHA
Model Number :
HOOHA
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20 sets/month
Delivery Time :
35 working days
Packaging Details :
plastic or wooden packing
Usage :
casting
Inlet diameter :
9.5mm
outlet diameter :
1.7-3.5mm
drawing speed :
25m/s
drawing dies :
13
Specification: :
CE ISO SGS
Power :
45kw
Motor :
Germany-Siemens
Power Source :
380V,50/60Hz
Description

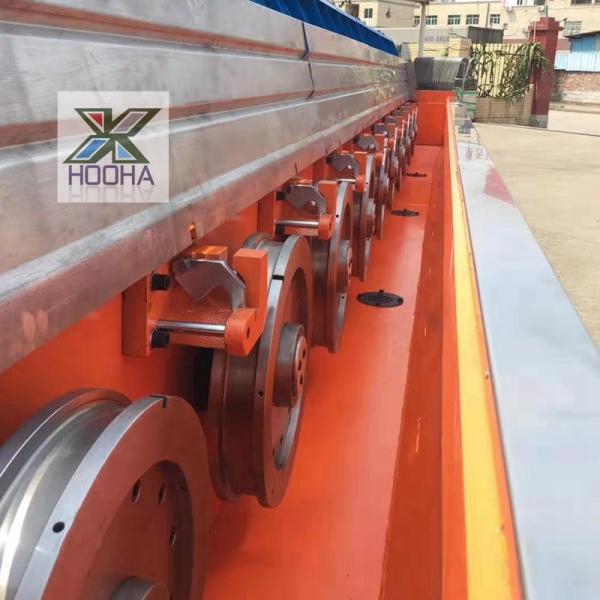

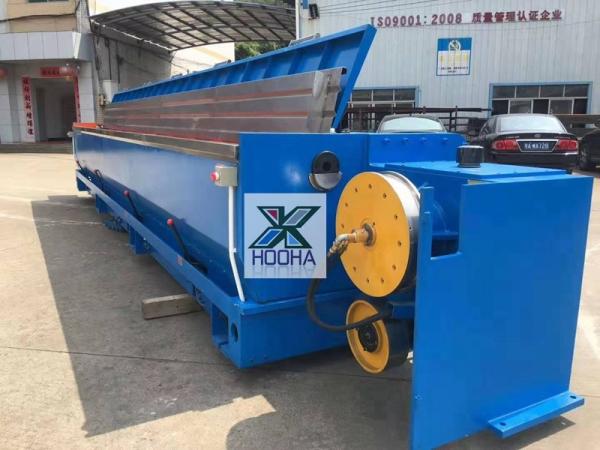

Sliding type aluminum rod breakdown 9.5mm aluminum wire drawing machine

HOOHA-450/13DL Aluminium rod breakdown machine is used to draw single bare aluminium wire from 9.5mm to 1.7mm-4.2mm.The drawing capstans are arranged in a line that are able to work continuously with drawing speed and electrical control can be matched with each other.

9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown

I.Compositions of equipment

Name Quantity
1.Cantilever Pay-off shelf 1 set
2.Main drawing machine 1 set
3.Tension controller 1 set
4.630 Double spoolers 1 set
5.Electrical cabinet 1 set
6.Operation panel 1 set
7.Gear Oil system (Pump+Cooler) 1 set
8.Spare parts 1 set

II. Main technical parameters

1.Inlet 9.5mm (Inlet wire straightening function is provided)
2.Outlet 1.7mm-4.2mm (Final wire cleaning function is provided)
3.Diameter of capstans 450mm
4.Speed 1500m/min, capacity say 1.7mm, 540kg per hour
5.Slip ratio 1.4-1.2 decrease
6.Quantity of capstan 13
7.Capstan Tungsten carbide (With wire threading function)
8.Quick dies change Available / Require less dies
9.Main motor DC250KW, with DC Controller
10.Fix speed motor DC75KW, with DC Controller
11.Gear Changeable
12.Noises of machine ≤85 db
13.Protection cover Motor transmission cover installed
14.Others Cooler for Gear oil is provided
15.Others All main pipes are provided
16.Others Gear oil recycling complete system is provided, including: Pump, Gear oil tank, Pipes, Oil Pressure Gauge, Signal wire. When lack of oil, machine will auto stop.
17.Others Cooler for Lubrication oil , no need. You need prepare one Underground Tank for Lubrication Oil recycle.

9.5mm Aluminum Wire Drawing Machine Sliding Type Aluminum Rod Breakdown
