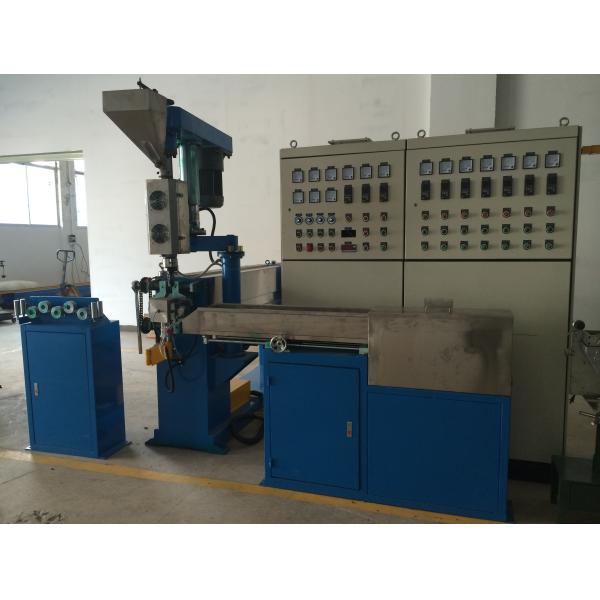

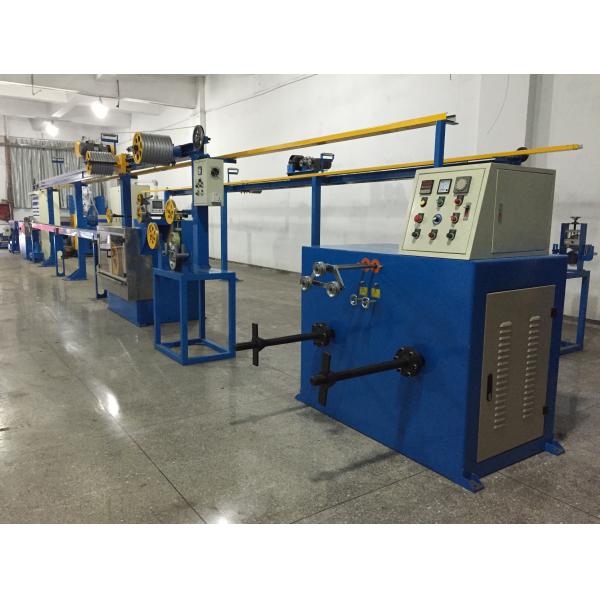

50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification
Specifications
Brand Name :
HOOHA
Model Number :
HOOHA
Certification :
Ios Ce SGS
Place of Origin :
China
MOQ :
1
Price :
USD+40000-60000
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
10/MONTH
Delivery Time :
35 WOEKING DAYS
Packaging Details :
WOODEN
Motor :
Germany-Siemens
Bearing :
Japan-NSK
Available Material :
PVC PE LSZH
Certificate :
Ios Ce SGS
Line Speed :
450/Min
Description

50mm electrical wire electronical wire extrusion Machine with Ce Certification

1.Application:


This is designed for insulating low-voltage building wire with various plastic materials including PVC, HFFR, LSHZ.etc. Also it is suit for making power cable, building wire, communcation cable, and so on.

50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification50Mm Electric Wire Making Machine , Wire And Cable Machinery With Ce Certification

CONSISTING COMPONENTS

1. Double shaft type Pay off stand
2. Dancer
3. Main extruder
4. Automated loader & dryer
5. Crosshead
6. Double layer Moving trough
7. Main cooling trough
8. Water wiper
9. Digital Diameter controller
10. Mark printer
11. Accumulator
12. Capstan
13. 15KV Spark tester
14. Meter counter
15. Dual shaft type Take up

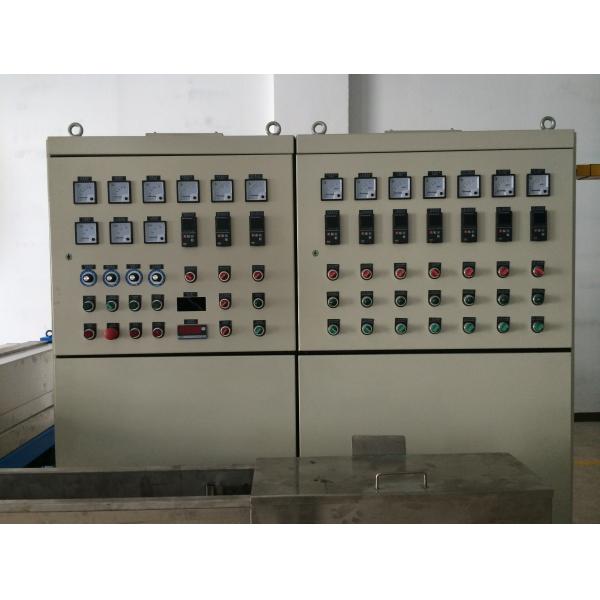

16. Master control Control box


HOOHA extrusion machine
NO. Model 50+35MM 60+35MM 70+35MM 80+40MM 90+50MM
1 Pay off type initiatire type initiatire type No-axis magnetic No-axis magnetic No-axis magnetic
2 Screw L/D
3 Out put 110KG 170KG 210KG 270KG 390KG
4 Main motor 15HP 30HP 30HP 40HP 50HP
5 Wire diameter 1-4MM 1.5-8MM 2-10MM 3-20MM 4-45MM
6 Temperature control 7 zones 8 zones 8 zones 9 zones 9 zones
7 Cooling device Folds W type/U type Folds W type/U type Single layer/double Single layer/double Single layer/double
8 Capstan motor 3HP 4HP 5HP 7.5HP 7.5HP
9 Take up Double axis Double axis No-axis magnetic No-axis double No-axis doublec
