ISO 3795 Interior Materials flammability test machine ( Touch Screen)

ISO 3795 Interior Materials flammability test machine Introduction

This machine is designed and manufactured according to FMVSS302,ISO3795 .

Apply to identify vehicles (cars, multipurpose passenger car, truck and bus) interior material horizontal burning test.

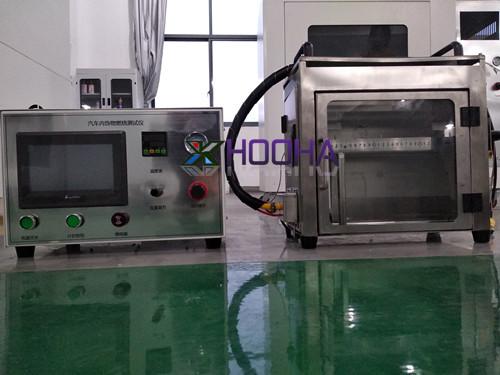

Car inner decorations combustion tester is composed of test part and control part adopts the integrated design, convenient installation and debugging.

A high degree of automation control system, with functions of automatic ignition. Temperature and time digital display, easy observation records, stable and reliable use.

ISO 3795 Interior Materials flammability test machine Model:HHFTest-FMVSS 302A

ISO 3795 Interior Materials flammability test machine Standards

• FMVSS 302 • ISO 3795 • GB/T8410-2006

ISO 3795 Interior Materials flammability test machine Features:

1, Advanced industrial appearance and control design;

2, Stainless steel structure housing; bottom ventilation hole spacing: horizontal 63.5mm, longitudinal 127mm.

3, The number of ventilation holes: 10, diameter 19mm.

4, An inner diameter of the burner Φ9.5mm. Blowtorch top center at the free end of the specimen from 19mm

5, Flame application time and timing (combustion) time

6, Can be adjusted within the range of 0 to 9999 seconds.

7, Equipped with:stainless steel sample holder and sample templates;

8, Combustion chamber built steel ruler; precision: 1mm; combustion length can be easily read; do not remove the sample measurement burn length;

9, The use of imported Bunsen Hamburg America, combustion flame higher precision, adjustment range 20mm ~ 100mm.

10, The flame measuring device; flame height 38mm

11, A high degree of test automation, test data accurate, easy to operate

Programmable Logic Controller (PLC) touch screen plus automatic control system

1, Automatic timing, automatic ignition, ignition abnormal protection;

2,6 sample test data is saved;

3, The text display;

4, Real-time monitoring of experimental data, query six samples of experimental data, query alarm contents.

ISO 3795 Interior Materials flammability test machine Specification
