GA / T537 - 2005 Electrical Test Equipment , Water Fire Electrical Wire Tester
GA / T537 - 2005 Electrical Test Equipment , Water Fire Electrical Wire Tester
Specifications
Brand Name :
HOOHA
Model Number :
ZY6261-PC
Place of Origin :
China
MOQ :
1
Supply Ability :
10 sets/month
Delivery Time :
30 work days
Packaging Details :
wood package
Price :
3000-80000USD/PC
Payment Terms :
Western Union, L/C, T/T
color :
white
Power :
380V 50HZ
Furnace pressure measuring range. :
0-100Pa
The air capacity :
0-50m³/min
adopt standard 1 :
GA/ t537-2005
adopt standard 2 :
GB/T9978.1-2018
Maximum combustion length of sample level. :
2.4m
Description

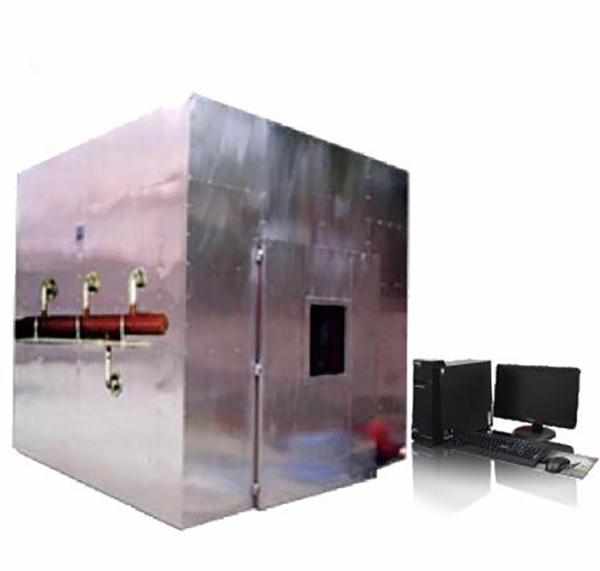

GA / T537 - 2005 Electrical Test Equipment , Water Fire Electrical Wire Tester

Suitable standard:

GA/ t537-2005 (Main wire system) fire retardant, fireproof, fire-resistant performance test method) and GB/T9978.1-2018 (part I: general requirements) experimental standards.

Scope of application: it is applicable to the test of flame retardant, fireproof and fire resistance of main wire system (Main wire bar).

Specifications:

Power AC 380V+-10% 50HZ
Power 5KW
Furnace pressure measuring range. 0-100Pa Accuracy of measurement +-3Pa
The air capacity 0-50m³/min Accuracy of measurement +-0.5m³/min
The combustion air supply Propane, liquid gas.
Tank capacity 50KG*4
Test temperature Fellow GB/T9978.1-2008 Heating curves
Temperature in the furnace +-15 degree
Sample internal temperature. +-10 degree
Sample back temperature. +-4 degree
Temperature sensor
Furnace Inside 6 armored nickel-chromium nickel-silicon K value thermocouple, accuracy grade 2.
Backdraft 6 armored nickel-chromium nickel-silicon K value thermocouple, accuracy grade 2.
measurement range 0-360min,Timing accuracy +-2S
Maximum combustion length of sample level. 2.4m
Sample vertical maximum combustion length. 1.6m, device dimensions: length, wide,Height 3*2*2.5m equipment weight: 4000KG.
