30 Shore A FVMQ Rubber Compound
30 Shore A FVMQ Rubber Compound
30 Shore A FVMQ Rubber Compound
30 Shore A FVMQ Rubber Compound
Specifications
Brand Name :
Eson
Model Number :
ES6000
Certification :
ISO9001
Place of Origin :
Sichuan, China
MOQ :
2kg
Price :
Negotiable
Payment Terms :
T/T,Ali Trade Insurance
Supply Ability :
20 Ton/Tons per Month
Delivery Time :
7-15 Days
Packaging Details :
Carton+ Pallet
Name :
FVMQ Fluorosilicone elastomer
Hardness :
30-80 shore A
Material :
Fluoro silicone compound
Apperance :
Rubber solid
Color :
Black, green, bule , red, brown or custermed
Application :
Sealing material
Compound color :
Natural, white, black green or any
Processing :
Molding, injection, extrusion
Description

Fluorosilicone FVMQ Rubber Elastomer Compound General Grades from 30 Shore A to 80 Shore A

Description:

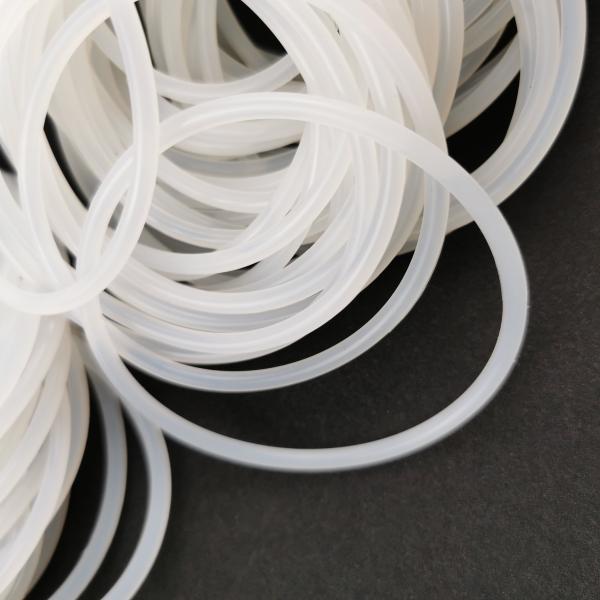

FVMQ fluorosilicone O-ring has excellent properties of heat resistance, cold resistance, high voltage resistance,

weather aging resistance and so on. Due to the introduction of fluorine-containing groups, it also has excellent

hydrogen resistant solvents, oil resistance, acid and alkali resistance and lower surface energy performance of

organic fluorine materials.

Fluorosilicones combine the best properties of fluorocarobons and silicones. Fluorosilicones resist solvents,

fuel, and oil (similar to fluorocarbons). They also have high and low temperature resistance stability( as with silicone).

Fluorosilicones are resilient, with low compression set characteristic. Though widely used in aerospace fuel systerms

and auto fuel emission controls, fluorosilicones are really good as static seals. High friction tendencies, limited strength,

and poor abrasion resistance disqualify them from dynamicuses.

Feature: Good oil resistance, good low temperature resistance.

General temperature range: -70 to +350 ℉

Processing Method: Compression Molding, transfer, Injection, Extrusion.

End Products:O rings, hose, umbrella value, other sealings.

Application: Due to its excellent oil resistance and the heat resistance of its silicone elastomer, this material is particularly

suitable for some applications requiring high temperature and fuel resistance, such as seals, rubber tubes, rubber pads,

films and impregnated products. It is widely used in automobile industry, aerospace industry, petrochemical industry and other fields

Typical Properties:

Grade Typical properties
Gravity
/ g/cm3		 Hardnes s/shoreA Tensile Strength
/Mpa		 Elongation at break/% Tear Stregth
/KN/m		 Rebound Resistance
%		 Compression Set
(177℃
*22h)		 Heat Resistance 225℃× Fuel C
Volume change rate /%
(25℃
Hardness Change rate(Sho Tensile
Strength Change rate,%		 Elongation at break change
ES-6000 General FVMQ
ES-6040 1.44 39 10 510 28 - 13 5 -18 -9 25
ES-6060 1.48 60 9.0 300 26 - 16 5 -17 -13 25
ES-6070 1.49 70 8.0 260 17 - 18 4 -17 -20 23
