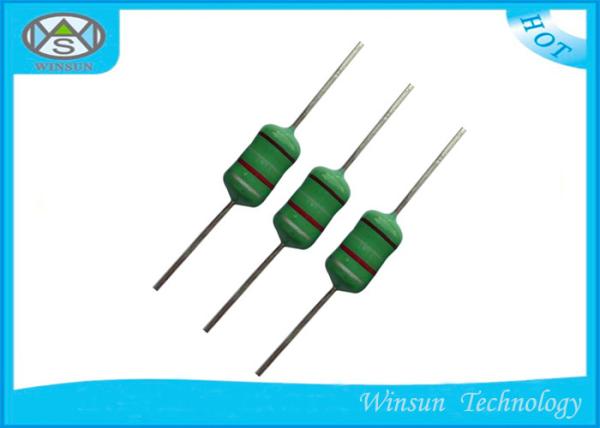

Low RDC High IDC Fixed Inductor LGA 0510 Color Code Axial Lead Choke Coil Inductor
Low RDC High IDC Fixed Inductor LGA 0510 Color Code Axial Lead Choke Coil Inductor
Low RDC High IDC Fixed Inductor LGA 0510 Color Code Axial Lead Choke Coil Inductor
Low RDC High IDC Fixed Inductor LGA 0510 Color Code Axial Lead Choke Coil Inductor
Specifications
Brand Name :
WS
Model Number :
WS-LGA 0510
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
Typing package + carton
Color :
Green
Inductance :
1uH - 10mH
Size :
0510
Tolerance :
+/- 5% , 10% , 20%
IDC :
25 - 1800mA
Shipping :
By DHL, FEDEX, TNT ,UPS,EMS ect.
Description

Low RDC and High IDC Fixed Inductor / LGA 0510 Color Code Axial Lead Coil Inductor


Features:
Dimensions Size: 0510
Inductance Range: 1uH - 10mH
Tolerance: J=+/-5% K=+/-10% M=+/-20%
IDC:25mA - 1800mA
Low power lost
Low fluency for the around equipment
Annular structure
Low radial noise
Low cost
Exceptional Q characteristics
High reliability
High self-resonant frequency


Applications:
Video cameras.
Portable VCRs.
Audio equipments.
TV tunners.
Switching power supplies ect.


Color code marking:
1. The first effective number
2. The second effective number
3. Multiplier
4. Inductance tolerance

Advantage:
1. Many kinds of inductors.
2. Contain high-frequency ferrite.
3. Comparaticely large rated current.
4. Low profile power inductor
5. Tightly coupled windings
6. Operating temperature: -40 to 85 degrees Celsius
7. Applications: high frequency coupled inductors and isolation transformers and LED lighting ,CCFL .

Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect


Dimensions Size Inductance Range Tolerance IDC
0510 1uH - 10mH +/-5% +/-10% +/-20% 25mA - 1800mA



Low RDC High IDC Fixed Inductor LGA 0510 Color Code Axial Lead Choke Coil Inductor

LGA0510 Type Nominal Inductance (uH) Tolerance Q (min) RDC(Ω) max Test frequency (MHZ) SRF (MHZ)min Rated Idc (mA)max
LGA0510-471 470 K=10% M=20% J=5% 60 7.70 1.9 105
LGA0510-561 560 50 8.50 1.8 100
LGA0510-681 680 55 9.00 1.5 126
LGA0510-821 820 45 10.5 1.2 120
LGA0510-102 1000 45 14.0 1.0 113
LGA0510-122 1200 40 16.0 0.95 105
LGA0510-152 1500 40 21.6 0.90 100
LGA0510-182 1800 40 24.0 0.85 85
LGA0510-222 2200 40 34.7 0.80 80
LGA0510-272 2700 40 40.0 0.75 75
LGA0510-332 3300 40 59.5 0.70 62
LGA0510-392 3900 40 66.0 0.65 59
LGA0510-472 4700 40 74.0 0.60 55
LGA0510-562 5600 30 80.0 0.50 40
LGA0510-682 6800 30 85.0 0.45 35
LGA0510-822 8200 30 95.0 0.40 30
LGA0510-103 10000 20 105.0 0.35 25
