1000uF 6.3V Capacitor Aluminum Electrolytic Capacitors Stable For High CV Product
1000uF 6.3V Capacitor Aluminum Electrolytic Capacitors Stable For High CV Product
1000uF 6.3V Capacitor Aluminum Electrolytic Capacitors Stable For High CV Product
1000uF 6.3V Capacitor Aluminum Electrolytic Capacitors Stable For High CV Product
Specifications
Brand Name :
WS
Model Number :
WS-Ecap-CD110C
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
Plastic bag + Carton
Capacitance :
0.1uF-33000uF
Frequency :
standard
Voltage :
6.3-100V 160V-450V
Temperature :
-40-105c
Impedance :
Standard
Description

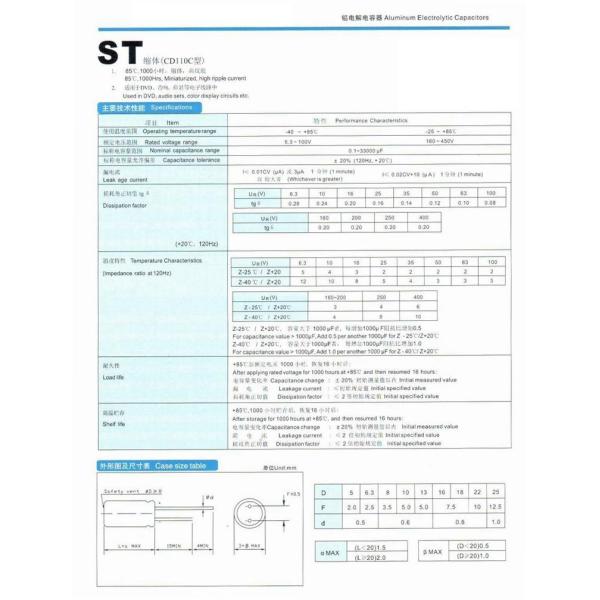

Radial Aluminum Electrolytic Capacitor CD110C 1000uF 6.3V ST series

Specifications:

Item Characteristics
Temperature -40~+105°C -25~+105°C
Voltage 6.3~100VDC 160~450VDC
Capacitance 1~15000μF 1~470μF
Leakage Current I=0.01CV or 3(μA) whichever is greater. I=0.03CV+10(μA)
(After rated voltage applied for 2 minutes)
Capacitance ±20% at 120Hz, 20°C
Dissipation Factor WV 6.3 10 16 25 35 50 63~100 160~250 350~450
tanσ 0.26 0.22 0.18 0.16 0.14 0.12 0.10 0.15 0.20
Tanσ shall be added 0.02 with increase of every 1000μF, when capacitance is over 1000μF.
Stability & Impedance WV/z(120hZ) 6.3 10 16 25~100 160~250 350~450
Z-25°C / 20°C 4 3 2 2 4 4
Z-40°C / 20°C 8 6 4 3 - -
Load Life Meet following requirements after applying rated voltage 2000hrs at 105°C.
Capacitance Change Within ±20% of initial value
Dissipation Factor Not more than 200% of the specified value
Leakage Current Initial specified value or less
Shelf Life Meet the same requirements as endurance after applying without voltage for 1000hrs at 105°C.
Applications For high quality, reliability application, high CV product.

Features:

Type: CD110C

Capacitance range:0.1uF~33000uF
Rated Voltage: 6.3-100V 160V-450V
Working temperature:-40~+105 C
Capacitance tolerance: +/-20%(120Hz +20C)
Leakage current: I≤ 0.02(uA) (at 20, after 2 minutes)
Dissipation factor(120Hz +20): 0.35~0.12
Temperature Characteristics(lmpedance ratio at 120Hz): 8~30
Load life: After applying rated voltage for 1000 hours at +85 and then resumed 16 hours: Capacitance change: +/-25%.

Type

CD110C
Capacitance range 0.1uF~33000uF
Rated Voltage 6.3-100V 160V-450V
Working temperature -40~+105 C
Capacitance tolerance +/-20%(120Hz +20C)
Leakage current I≤ 0.02(uA) (at 20, after 2 minutes)
Dissipation factor(120Hz +20) 0.35~0.12
Temperature Characteristics(lmpedance ratio at 120Hz) 8-30
Load life After applying rated voltage for 2000 hours at +85 and then resumed 16 hours: Capacitance change: +/-25%.

Application:

TV, telephone, radio,DVD, VCD, Air conditioners, washing machines, etc .
