High Precision Metallized Polyester Film Capacitor CBB22 10μF / 106J 250V Capacitor
High Precision Metallized Polyester Film Capacitor CBB22 10μF / 106J 250V Capacitor
High Precision Metallized Polyester Film Capacitor CBB22 10μF / 106J 250V Capacitor
High Precision Metallized Polyester Film Capacitor CBB22 10μF / 106J 250V Capacitor
Specifications
Brand Name :
WS
Model Number :
WS-CBB22-106
Certification :
Rohs
Place of Origin :
China
MOQ :
100pcs
Price :
Low Price
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
1000000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic bag + carton
Color :
Red
Material :
Polypropylene Film
Capacitance :
10uf
Rated Voltage :
250V DC
Tolerance :
+/- 5 %
Shipping :
By DHL, FEDEX, TNT ,UPS,EMS ect.
Description

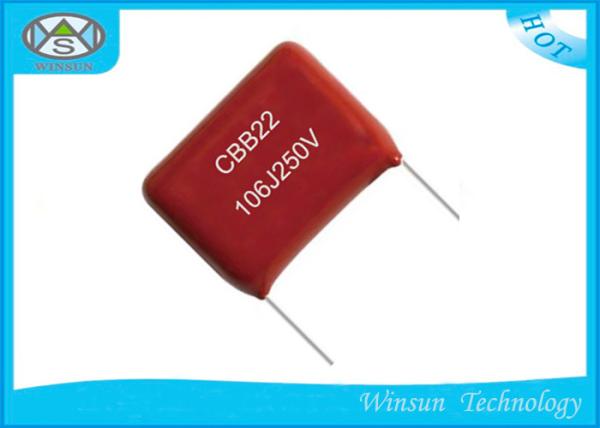

CBB22 10μF / 106J 250V Polypropylene Metallized Polyester Film Capacitor With High Precision​

Feature:
* Epoxy resin coating
* Low dissipation factor with high frequency
* Small inherent temperature rise
* High-insulation resistance, good self-healing property

1 Capacitance: 10μF
2 Rated Voltage: DC250V
3 Operating Temperature: -40 ~ +105 C
4 Tolerance: +/- 5 %

Specifications:

Reference Standards: GB10190-88, GB/T14579 (IEC60384-17)
Rated Voltage(UR): 250VDC
Climate Category 40/105/21
Rated Temperature 105°C
Operation Temperature Range: -40°C - +105°C (+85°C to +105°C, decreasing factor 1.25% per°C for VR (dc))
Capacitance Range: 10μF
Capacitance Tolerance Range: J(±5%)
Dielectric: Polypropylene Film

(25°C±5°C)

Dissipation Factor Tanδ:

C≤1µF ≤0.1% (10KHZ)

C>1µF ≤0.1% (1KHZ)
Insulation Resistance(Between Terminals):

100VDC,Min C≤0.33µF ≥50000MΩ

>0.33µF ≥15000 MΩ·S
Withstand Voltage: 1.6UR(5S)
Life. Test Conditions:

85±2°C,1.25UR,1,000Hours

Capacitance Drift: ≤±3% Of the initial value

Dissipation Factor ≤50%(1KHz)

Application:
Suitable for DC, pulse, high frequency, and high-current circuits
S-shaping correction of color TV sets ect.
