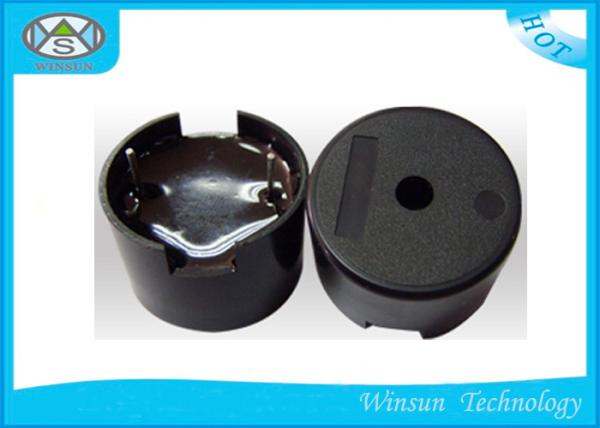

Panel Mount Buzzer D23 X H16mm For Timer , 95dB Low Voltage Buzzer Alarm
Panel Mount Buzzer D23 X H16mm For Timer , 95dB Low Voltage Buzzer Alarm
Panel Mount Buzzer D23 X H16mm For Timer , 95dB Low Voltage Buzzer Alarm
Panel Mount Buzzer D23 X H16mm For Timer , 95dB Low Voltage Buzzer Alarm
Specifications
Brand Name :
WS
Model Number :
WS-2316DYP
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
Bubble + carton
Rated voltage :
12V
Sound Output :
95dB
SIZE :
D23XH16MM
Frenquency :
2500±500Hz
Rated Current :
5mA
weight :
3g
Description

12v Pin type Piezoelectric / Piezo Buzzer D23xH16mm external Drive Without Circuit

We also can make uncommon product per customers requirements.


Typical Specificaton

Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45%～85%R.H., Atmospheric pressure: 860 ～1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure.

Type Unit WS-MABZ2316CY2512P
Rated Voltage Vp-p 12
Operating Voltage Vp-p 3-24
Rated Current(max) mA 5
Min Sound Output at 30cm dB 95
Resonant Frequency Hz 2500±500
Capacitance at 120Hz pF 20000±30%
Coil resistance ohm 30±5
Lead Pin Material Red Copper
Operating Temperature ℃ -20-+70
Storage Temperature ℃ -30-+80
Housing material ABS
weight g 3

Features:
* Big Size
* High efficient
* Short lead time & Low Price.
* Rated Voltage: 12v
* Max Rated Current: 5mA
* Sound Output at 30cmt: 95dB at 30cm


Applications:
* Children's toys
* Alarm Medical equipments
* Telecommunication
* Security
* Household appliances

* Audio and Video Products
* Etc.......

Apperiance Drawing:

Panel Mount Buzzer D23 X H16mm For Timer , 95dB Low Voltage Buzzer Alarm

Panel Mount Buzzer D23 X H16mm For Timer , 95dB Low Voltage Buzzer Alarm
