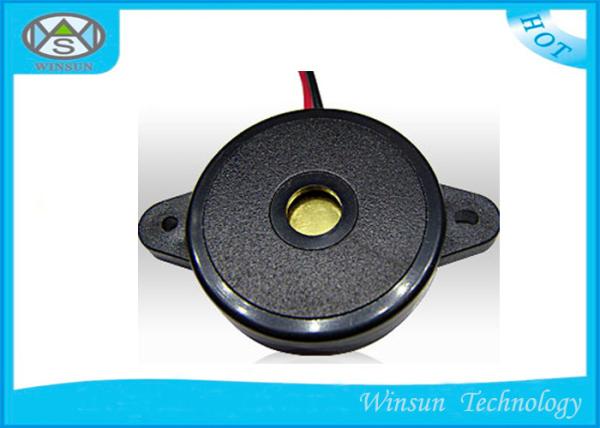

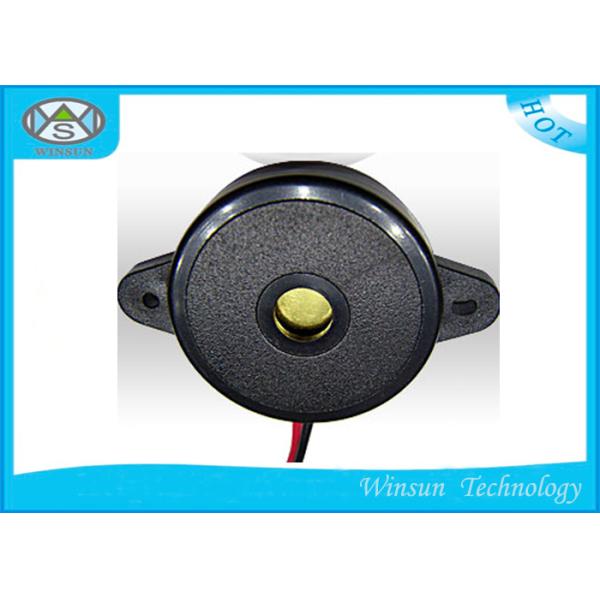

Security 5v Piezo Buzzer D30 X H5.0mm , High Efficient Commercial Door Buzzer
Security 5v Piezo Buzzer D30 X H5.0mm , High Efficient Commercial Door Buzzer
Security 5v Piezo Buzzer D30 X H5.0mm , High Efficient Commercial Door Buzzer
Security 5v Piezo Buzzer D30 X H5.0mm , High Efficient Commercial Door Buzzer
Specifications
Brand Name :
WS
Model Number :
WS-3050DYW
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
Bubble + carton
Rated voltage :
5V & 10V
Sound Output :
95dB
SIZE :

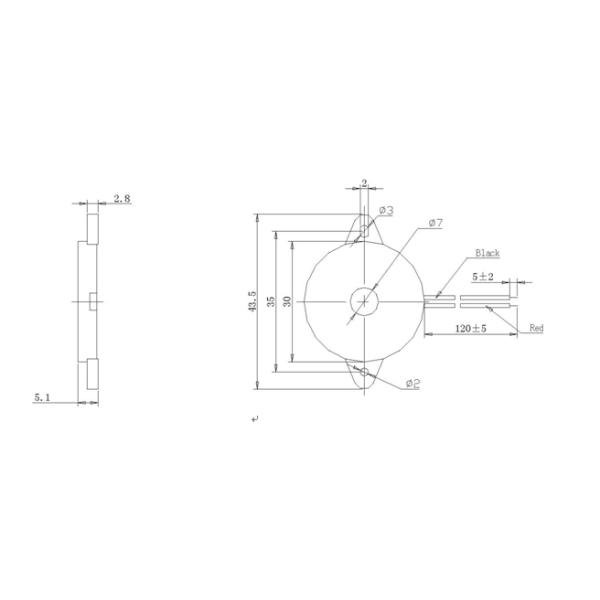

D30XH5.0MM
Frenquency :
4500±500Hz
operating Voltage :
1-30V
weight :
4.7g
Description

5V 10V External Drive Without Circuit 5V 10V Lead wire Piezoelectric / Piezo Buzzer D30xH5.0mm

We also can make uncommon product per customers requirements.

Features:
* Big Size
* High efficient
* Short lead time & Low Price.
* Rated Voltage: 5V 10V
* Max Rated Current: 5mA/11mA
* Sound Output at 30cmt: 95


Typical Specificaton

Part shall be measured under a condition (Temperature: 5～35℃, Humidity: 45%～85%R.H., Atmospheric pressure: 860 ～1060hPa) unless the standard condition (Temperature: 25±3℃, Humidity: 60±10%R.H. Atmospheric pressure: 860 ～1060hPa) is regulated to measure.

Type Unit MABZ3005CY4505W MABZ3005CY4510W
Rated Voltage(square wave) Vp-p 5 10
Operating Voltage Vp-p 1~30 1~30
Rated Current(max) mA 5 11
Min Sound Output at 4500Hz/10cm dB 90 97
*Rated Frequency Hz 4500±500
Capacitance at 120Hz pF 18000±30%
Lead Pin/Wire Material

UL1095 AWG28
Operating Temperature ℃ -20~+60
Storage Temperature ℃ -30~+70
Housing Material

ABS
weight g 4.7

Applications:
* Children's toys
* Alarm Medical equipments
* Telecommunication
* Security
* Household appliances

* Audio and Video Products
* Etc.......
