High Stability Quartz Resonator 6.0 Mhz - 110.0 Mhz 7.0 X 5.0mm For Automobile
High Stability Quartz Resonator 6.0 Mhz - 110.0 Mhz 7.0 X 5.0mm For Automobile
High Stability Quartz Resonator 6.0 Mhz - 110.0 Mhz 7.0 X 5.0mm For Automobile
High Stability Quartz Resonator 6.0 Mhz - 110.0 Mhz 7.0 X 5.0mm For Automobile
Specifications
Brand Name :
WS
Model Number :
WS-7050
Certification :
SGS
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pcs/day
Packaging Details :
plastic bag+carton box
Other Name :
Xtal Resonator
Frequency :
6.0 Mhz -110.0Mhz
Package :
SMD
Driver Level (Typical) :
10µW~100µW
Application :
Ideally suited designed for disc drives, NB, PCs and hand-held electronic products
L/T :
7days
Size :
7.0x5.0mm
Description

6.0 Mhz to 110.0 Mhz SMD 7.0x5.0mm Quartz Crystal resonator High Stability Wide temperature


Applications:
Digital products
Communication equipments
Automobile
Instrument ect.


Feature:
4pin Resonator, small size.
Surface Mounted Technology (SMT)
Lead-free production and RoHS compliance


Specification:

Output Frequency Range 6.000 MHz to 110.000 MHz
Mode see Table 1
Frequency Tolerance (at 25°C) ±10ppm ~ ±50ppm
Frequency Stability Over Operating
Temperature Characteristics		 -10°C ~+60°C ±30ppm,
-20°C ~+70°C ±50ppm or specify
Storage Temperature Range -55 °C to +125 °C
Operable Temperature Range -10°C to +60°C ~ -40°C to +85 °C
Shunt Capacitance (C0) 5.0 pF Max
Driver Level (Typical) 10µW~100µW
Load Capacitance(CL) Series, 16pF, 20pF, 30pF, 32pF, or specify
Equivalent Series Resistance ESR (Ω) see Table 1*
Aging @25°C 1st year (Max) ±3ppm, ±5ppm/year
Shock Resistance Drop test of 3 times on 2mm stainless plate from 75cm height

REMARK:SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER.


Frequency and Equivalent Series Resistant:

Frequency Range E.S.R. (Ω) Mode
6.000 MHz ~ 15.999 MHz 40 Max Fundamental / AT
16.000 MHz ~ 32.000 MHz 35 Max Fundamental / AT
30.000 MHz ~ 44.999 MHz 80 Max Third Overtone / AT
45.000 MHz ~ 89.999 MHz 70 Max Third Overtone / AT
90.000 MHz ~ 110.000 MHz 75 Max Third Overtone / AT

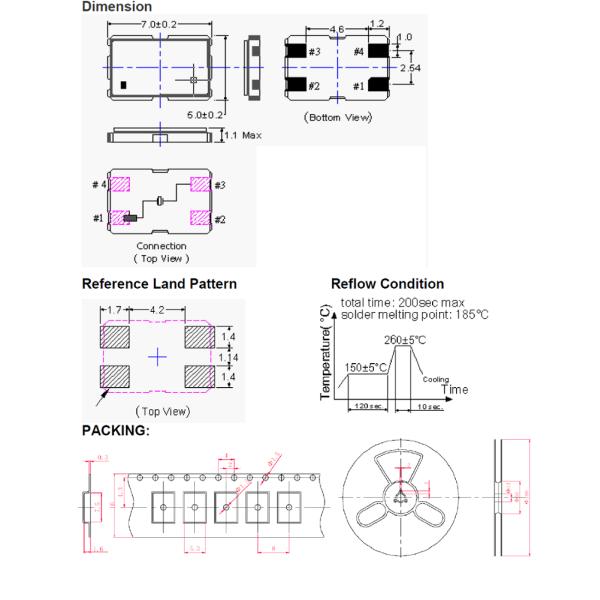

High Stability Quartz Resonator 6.0 Mhz - 110.0 Mhz 7.0 X 5.0mm For Automobile
Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal .
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect


Contact Details:
Contact: Angel Sun
Tel: +86-13528847020
Email: Admin@winsunhk.cn
Skype: Angelsun618
Whatsapp: 13528847020
Wechat: 13528847020
QQ: 553695308
