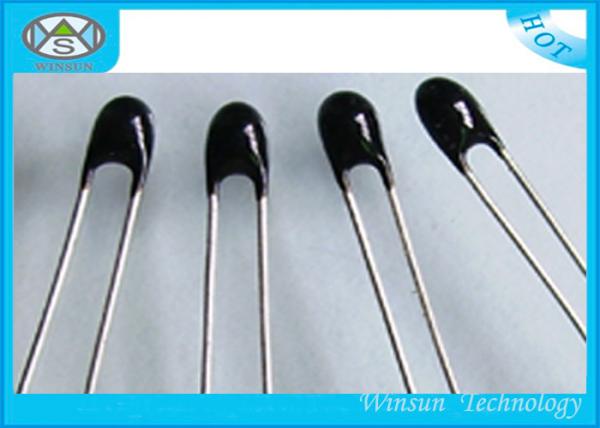

100k Ohm NTC Thermistor 2.2mm X3.5mm , High Temperature Thermistor
100k Ohm NTC Thermistor 2.2mm X3.5mm , High Temperature Thermistor
100k Ohm NTC Thermistor 2.2mm X3.5mm , High Temperature Thermistor
100k Ohm NTC Thermistor 2.2mm X3.5mm , High Temperature Thermistor
Specifications
Brand Name :
WS
Model Number :
WS-MFEB-XXXX
Certification :
SGS
Place of Origin :
Shenzhen of China
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
plastic bag + carton
Body size :
Φ2.2mm X3.5mm
Reistiance :
100Kohm & 200Kohm
B value :
3950～4300K
operating temperature range :
-30 ~ +120℃
relative humidity :
≦75%RH
Period of Storage :
One year
Description

Epoxy Sealed NTC Thermistor with size 2.2mm X3.5mm 100KR and 200KR / OHM


Features:
1. Body size Φ2.2mm X3.5mm
2. resistance range: 100Kohm & 200Kohm
3. B value range:3950～4300K
4. -30 ~ +120℃operating temperature range
5. RoHS compliant

Recommended applications
Temperature sensor,home electronics,electronic clock,electric table-board,automobile electrics,CPU fan etc


Characteristics:

Part no. Zero power resistance
@ 25°C		 Tolerance of R25 B value Tolerance of B value Max. Power Dissipation
At 25°C		 Dissipation Factor Thermal
Time constant		 Operating temperature range
R25 (KΩ) ( ±%) (K) (±%) Pmax(mW) δ(mW/°C) τ(Sec.) (°C)
WS-MFEB－5001-3550 5 1,2,3,
5,10		 25/50 3550 1,2,3,5 10 ≧2 ≦3 -30～+120
MFEB－1002-3550 10 25/50 3550
WS-MFEB－1002-3950 10 25/50 3950
WS-MFEB－1002-3435 10 25/85 3435
WS-MEFB－1002-3270 10 25/85 3270
MFEB－1002-3700 10 25/85 3700
MFEB－1002-3470 10 25/85 3470
WS-MFEB－1002-3975 10 25/85 3975
WS-MFEB－2002-3950 20 25/50 3950
WS-MFEB－2002-4200 20 25/50 4200
WS-MFEB－3002-3950 30 25/50 3950
WS-MFEB－4702-3950 47 25/50 3950

WS-MFEB－5002-3950

 50 25/50 3950
WS-MFEB－1003-3950 100 25/50 3950
WS-MFEB－1003-4000 100 25/50 4000
WS-MFEB－1005-3975 100 25/85 3975
WS-MFEB－1003-4300 100 25/85 4300
WS-MFEB－2003-4000 200 25/85 4000
WS-MFEB－2003-4200 200 25/85 4200
WS-MFEB－2003-4300 200 25/85 4300
WS-MFEB－2003-3950 200 25/50 3950
WS-MFEB－2003-4200 200 25/50 4200

Ps.:can be tailored according to clients’ demand

operating currentIn order to make the test more accurate, the running current should be as less as possible. The following formula is suggested:
I＝sqrt(0.005δT^2/(B*R))
PS.:1.sqrt is for square root
2. δ is for dissipation constant in mW/℃
3. T is for temperature in Kelvins
4.B is for the index of the thermal sensitivity
5.R is for zero-power resistance in KOHM
6.final current is in mA
R－T characteristic curve100k Ohm NTC Thermistor 2.2mm X3.5mm , High Temperature Thermistor
Reliability test

No. item standard Test conditions specifications
1 Low temperature storage IEC 60068-2-21 Lowest operating temperature*1000H No visible damage
∣△R25/R25∣≦ 1%
2 High temperature storage IEC 60068-2-21 Highest operaing temperature*1000H No visible damage
∣△R25/R25∣≦ 1%
3 Thermal shock IEC 60068-2-14 10 cycles No visible damage
∣△R25/R25∣≦ 1%
step temperature(℃) period(ms)
1 Low temperature
±5℃		 30±3
2 Room temperature 5±3
3 High temperature
±5℃		 30±3
4 Room temperature 5±3
(internal test: 100 cycles)
4 Constant temperature and humidity IEC 60068-2-3 60℃, 93%±3% RH; 1000H
(internal test: 56 days)		 No visible damage
∣△R25/R25∣≦ 1%
5 Life test IEC 60539-1
4.26		 25±5℃, Pmax; 1000hrs
(internal test: 56 days)		 No visible damage
∣△R25/R25∣≦ 1 %

● storage conditions:
1. storage temperature: -10℃~+40℃
2. relative humidity:≦75%RH
● Period of Storage:one year

Code number and specifications:
100k Ohm NTC Thermistor 2.2mm X3.5mm , High Temperature Thermistor
Dimensions:
100k Ohm NTC Thermistor 2.2mm X3.5mm , High Temperature Thermistor
