Blank Vacuum Flange Fittings SS304 ISO 16 Stainless Steel ISO
Blank Vacuum Flange Fittings SS304 ISO 16 Stainless Steel ISO
Blank Vacuum Flange Fittings SS304 ISO 16 Stainless Steel ISO
Blank Vacuum Flange Fittings SS304 ISO 16 Stainless Steel ISO
Specifications
Brand Name :
ONEMO
Model Number :
ISO16
Certification :
ISO
MOQ :
10 Pieces
Price :
/
Payment Terms :
L/C, T/T
Supply Ability :
4000 Piece/Pieces per Month
Packaging Details :
Export Package - Carton Box / Plywood Case / Wooden Case
Customized :
OEM
Size :
ISO10~ISO250
Material: :
Stainless steel
Application scope: :
Vacuum Fitting,Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
Standard :
ISO，USA，Europe
Description

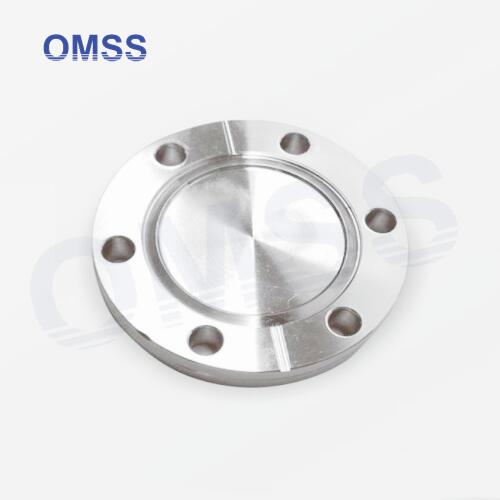

SS304 ISO 16 Stainless Steel ISO Blank Flange Vacuum Fittings

Product Name: Stainless Steel ISO Blank Flange Vacuum Fittings
Material: SS304/SS316L
Seal Material: Viton
Availably Size: ISO16-250
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc

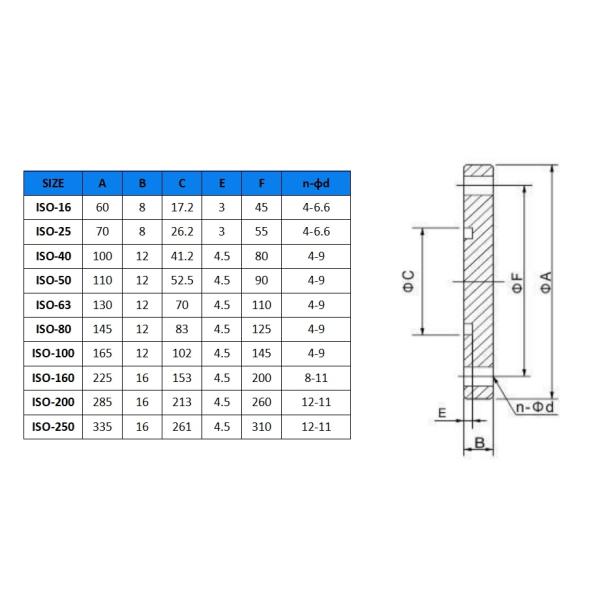

Specifications:

Blank Vacuum Flange Fittings SS304 ISO 16 Stainless Steel ISOBlank Vacuum Flange Fittings SS304 ISO 16 Stainless Steel ISO

Features:

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp.

There are a variety of clamp choices in the Series 31 line. The wing-nut clamp is hand tightened until metal contact is felt. A version of the wing-nut clamp with a washer is also available. The toggle clamp is convenient and easy to use. The clamp provides enough sealing force to fully compress the O-Ring, so that the flanges and the centering ring are metal to metal. The heavy-duty spring supports the full range of production tolerance variables. The self-adjusting clamp locks in a positive method. A pin can be inserted to prevent accidental release of the toggle lever. The toggle clamps are ideal for situations where the clamp must be removed frequently, like leak testing or gauge calibration. The Series 31 ISO-KF line also includes bulkhead clamps. They are used to attach an ISO-KF flange directly to a chamber or base plate. The two-part, bolted clamp fits over the flange. A centering ring assembly is needed between the flange and the opening. The bulkhead clamp kit includes the two-piece clamp, bolts and washers.
