DN20-DN200 Sanitary Filter SS316 Stainless Steel Welded Angle Type Strainer Winding Metal Filter
DN20-DN200 Sanitary Filter SS316 Stainless Steel Welded Angle Type Strainer Winding Metal Filter
Specifications
Brand Name :
ONEMO
Model Number :
1 1/2"
Certification :
3A、ISO
Place of Origin :
WenZhou,ZheJiang,China
MOQ :
5 Pieces
Price :
/
Payment Terms :
T/T、L/C
Supply Ability :
2000 Piece/Pieces per Month
Packaging Details :
Export Package - Carton Box / Plywood Case / Wooden Case
Type: :
Sanitary Pipe Filter
Customized support: :
OEM
Port Size :
DN20-DN200、3/4"-6"
Material: :
SS304/SS316L
Finish :
mirror polished, matt (brushed) polishing, sandblasting
Filter Accuracy :
10 mesh and -400 mesh
Application scope :
food, beverage, pharmaceutical, water treatment, edible oils, dairy products, fine chemicals
Note :
According to customer demand plus jacket insulation
Description

SS316 Sanitary Stainless Steel Welded Angle Type Filter strainer Winding Metal Filter

Product Name:

 SS316 Sanitary Stainless Steel Welded Angle Type Filter strainer Winding Metal Filter

Application :

Food, beverage, pharmaceutical, water treatment, edible oils, dairy products, fine chemicals

Operating principles
Filter is used to prevent the solid particles from media mixed into the follow-up pipeline facilities.The larger solid particles or impurities will remaining in it after the media is put into proper filter core, as it can reach the request. When surrounding pressure of the filter exceeds demand, or when the filter core is damaged, you can remove the filter, clean or change new filter core, and re-install it.

Applications:
Filter mainly used in the protecting of pumps, instrumentation and other devices to work properly. Because of its compact structure, strong filtering ability, small pressure loss, convenient maintenance etc., they are widely used in beverage, pharmaceutical, dairy and other fields.

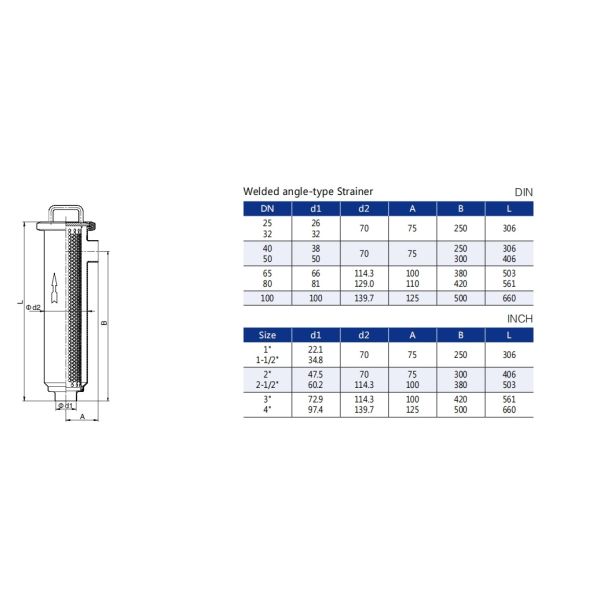

Technical Data

Finish: mirror polished, matt (brushed) polishing, sandblasting
Filter Accuracy: 10 mesh and -400 mesh
Note: according to customer demand plus jacket insulation.

Operating modes:manual,pneumatic,electric

DN20-DN200 Sanitary Filter SS316 Stainless Steel Welded Angle Type Strainer Winding Metal Filter

Applications
Filter mainly used in the protecting of pumps, instrumentation and other devices to work properly. Because of its compact structure, strong filtering ability, small pressure loss, convenient maintenance etc., they are widely used in beverage, pharmaceutical, dairy and other fields.

Operating Principles
Working Principle: filter is used to prevent the solid particles from media mixed into the follow-up pipeline facilities.The larger solid particles or impurities will remaining in it after the media is put into proper filter core, as it can reach the request. When surrounding pressure of the filter exceeds demand, or when the filter core is damaged, you can remove the filter, clean or change new filter core, and re-install it.
Typical Application
• Specification: DN20-DN200, 3/4 "- 6"
• Material: 304/316L
• Finish: mirror polished, matt (brushed) polishing, sandblasting.
• Filter Accuracy: 10 mesh and -400 mesh.
• Note: according to customer demand plus jacket insulation.
• Application areas: food, beverage, pharmaceutical, water treatment,edible oils, dairy products, fine chemicals.
