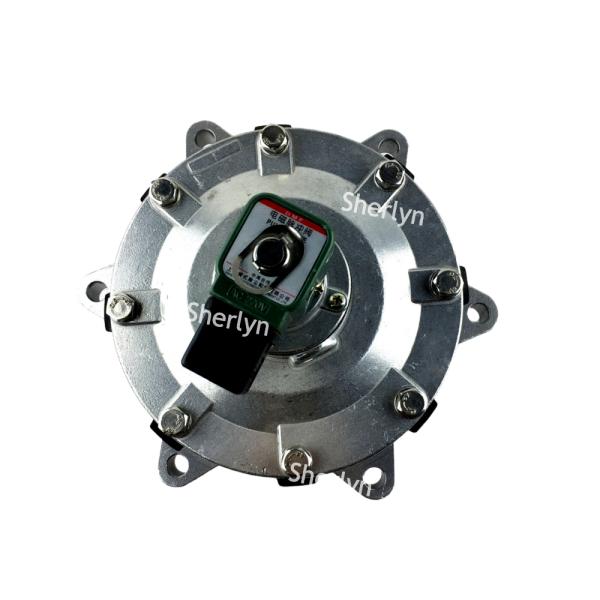

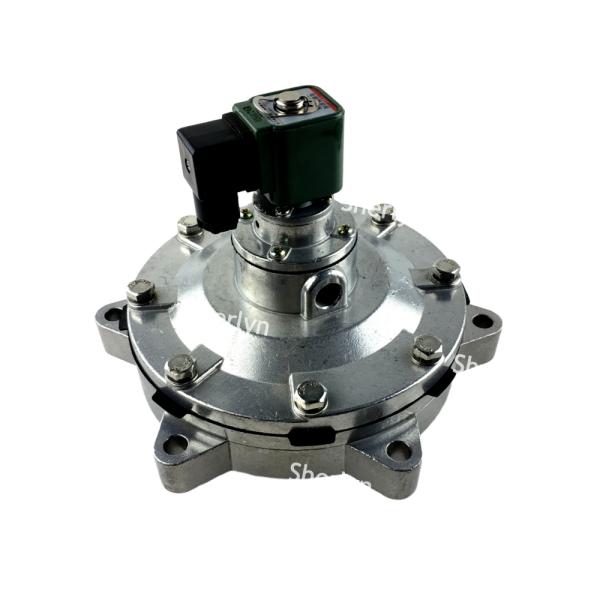

DMF-Y-62S Embedded 2-1/2'' Inch Dust Collector Double Diaphragm Valve

Main Type of SBFEC Type Baghouse Pulse Jet Valve::

1.Right Angle Valve

This kind of pulse valve with an included angle of 90° between inlet and outlet. It simplifies the connection between gas bag and blowing tube of a dust collector. It can provide stronger airflow and meet dust removing requirements. Like DMF-Z Series Pulse Valve.

2.Submerged Valve

This kind of pulse valve is installed directly on a secondary gas bag and achieves better circulation quality. The valve has less pressure loss, and is applicable to the operations with lower gas pressure.Like DMF-Y Series Pulse Valve.

3.Dresser Nut Valve

This kind of pulse valve is similar to the z-series valves, suitable for connection between gas bag and blowing tube of a dust collector. It has fixed nuts for installation purposes at the inlet and outlet end, for easier installation and application. Like DMF-ZM Series Pulse Valve.

4.Through Valve

This kind of pulse valve with an included angle of 180° between the inlet and outlet (central line of both inlet and outlet are the same straight line). Also, the inlet is connected to a gas storage tank, while its outlet is connected to a blowing tube. Like DMF-T Series Pulse Valve.

All Kinds of pulse jet valve in stock. Welcome inquiry.

Applications:

Iron and Steel Metallurgy: Used for high-temperature and high dust environments such as sintering heads and blast furnace gas purification, requiring the use of a cooler (temperature ≤ 60 ℃). It is recommended to use a DMF-Z right angle valve or submerged valve.

Cement Manufacturing: Kiln tail dust collector, raw material grinding dust removal, compatible with DMF-Y submerged valve (such as DMF-Y-80), resistant to ambient temperature dust (<80 ℃).

Garbage Incineration: Fluorine rubber (FKM) membrane submerged valves (such as DMF-Y-62S) are required for acid flue gas treatment, which can increase corrosion resistance by 8 times.

Wood Processing/Food Chemical Industry: Sawdust or powder pneumatic conveying scenarios, suitable for straight through valves (DMF-T series), requiring oil-free dry air (oil content<5ppm).

Bunker Arch Breaking: The material bridge in the coal powder silo and grain silo is broken by pulse airflow, with a frequency of ≤ 30 times/minute.

Pneumatic Conveying Blockage Removal: Install pulse valves at pipeline blockage points to instantly spray and clear powder materials (such as plastic particles and food grade calcium carbonate).

Technical Data of BFEC Type DMF Series Submerged Pulse Jet Valve:
