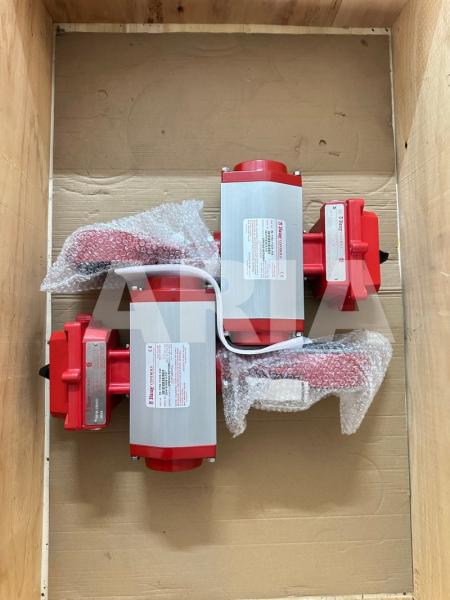

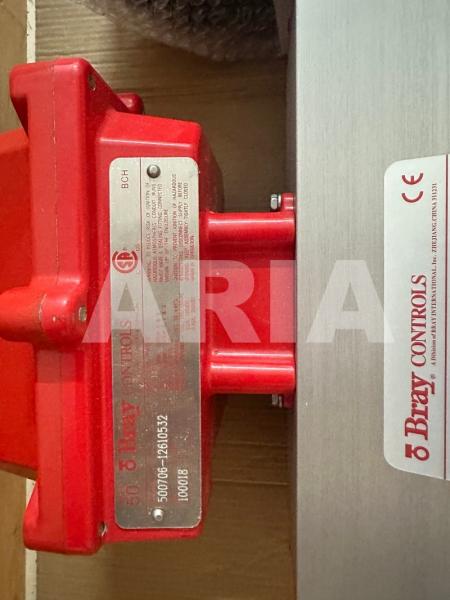

DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator
DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator
DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator
DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator
DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator
DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator
DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator
DN100➕93-1193➕S50 93-1193-11325-532 Butterfly valve / DN100 / PN10/16 Pneumatic Actuator
Specifications
Brand Name :
Bray
Model Number :
DN100➕93-1193➕S50
MOQ :
1
Payment Terms :
T/T,L/C,Western Union
Description

Butterfly valve / DN100 / PN10/16

The Bray Serie 30 Wafer style resilient seated butterfly valve features a one-piece body with a high-strength through-stem design utilizing an internal disc-to-stem connection.

The Serie 30 is engineered to provide bidirectional bubble-tight shutoff and isolation of the line media from the stem or valve body.

Available with a wide selection of high-quality resilient seat&disc materials for various applications, the Serie 30 butterfly valves are easily automated for on-off or modulating service.

Specifications

Product

Built-in length
50.8 mm
Width
154 mm
Height
297 mm
Weight
5 kg
Number of steps
8
Nominal inner diameter (NPS/DN)
NPS 4" (DN100)

Application

Butterfly valve seat class
Class B (General service)
Connection type
Wafer type
Valve operation
Bare stem

Properties

Temperature range
-29 to 121 ℃
Safety norm
EN ISO 20471
Pressure class
ANSI Class 150
Valve design
Centric
Pressure rating flange
PN10, PN16

Remarks

Shutoff rating
Bi-directional Air Bubble Tight
Housing seat
Interchangeable

Materials

Seat material
EPDM
Spindle material
Stainless steel 416
Housing material
Cast Iron (GG25) polyester coated
Surface protection
Polyester coated
Disk material
Ductile iron (GGG40) + nylon-11 coated

Quality

Testing standard
MSS SP-61, API 598, EN 12266-1
Design standard
MSS SP-67, API 609, Category A
Norm type
(EN) DIN

Capacity

Type of disc
Normal
Maximum allowable operating pressure
12 Bar
