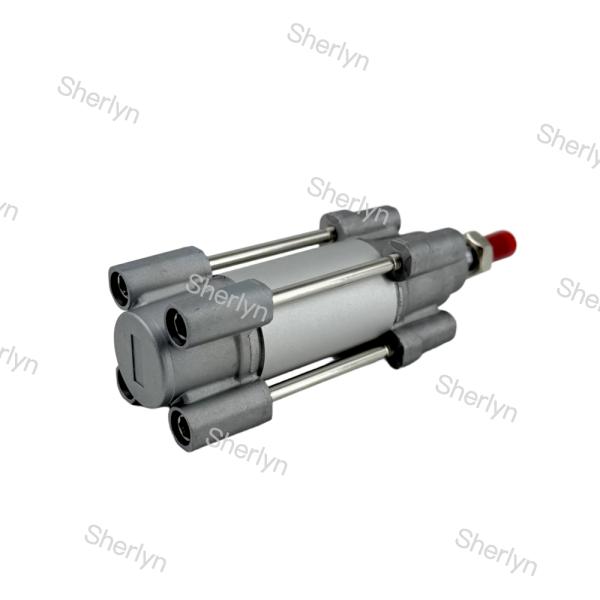

Product Description:

The NORGREN RA series cylinders adhere to the ISO 15552 standard, ensuring excellent interchangeability and standardized design.

Structural design and materials:
The RA series cylinders typically feature anodized aluminum alloy cylinder barrels and end caps, imparting robust corrosion resistance suitable for challenging environments. The piston rod is commonly crafted from stainless steel, either martensitic or austenitic, for durability against wear and corrosion. Seals in some models utilize polyurethane (PUR) or nitrile rubber (NBR) to prevent leaks and uphold consistent performance.

Working principle and performance:
This series predominantly comprises double-acting cylinders, facilitating both extension and retraction of the piston rod by alternately supplying gas from each end to drive in two directions. It offers a broad working pressure range typically spanning from 1 to 16 bar (potentially slightly lower for larger bore models), ensuring dependable operation across low and high pressure scenarios. The working temperature range typically falls between -20°C and +80°C (dimensions or specific models might exhibit slight variations), enabling functionality in diverse environmental conditions. Many models come equipped with adjustable pneumatic buffers like the adaptive buffer system ACS, effectively absorbing end-of-stroke impacts to safeguard the cylinder and reduce noise.

Applications:

The NORGREN RA series cylinders follow the ISO 15552 standard , which means they have good interchangeability and standardized design.

Structural design and materials:
The RA series cylinders usually use anodized aluminum alloy cylinder barrels and end caps, which provide good corrosion resistance and can adapt to certain harsh environments. The piston rod is usually made of stainless steel (such as martensitic or austenitic stainless steel), which is wear-resistant and corrosion-resistant. Some models of seals use polyurethane (PUR) or nitrile rubber (NBR) to prevent leakage and ensure stable performance.

Working principle and performance:
The NORGREN RA series cylinders are widely used in automation equipment in multiple industrial fields due to their durability and reliable performance.

Industrial automation and robotics:
This is the most traditional application area for RA series cylinders. It is commonly used in automated machinery and equipment to perform actions such as pushing, pulling, clamping, lifting, and positioning. It is also particularly suitable for precise control and movement in robot applications.

Material handling and conveying system:
Used for sorting, pushing, blocking, and positioning of workpieces in conveyor systems, assembly lines, and packaging machinery.

Automotive and Aerospace Manufacturing:
Used for assembly, testing fixtures, and various automation control processes in automotive manufacturing and aerospace engineering.

Process industry and special environments:
The corrosion resistance and reliability of equipment in the oil and gas industry, chemical processing, and pharmaceutical industry are fully utilized.

Food and beverage processing (attention should be paid to specific media and cleaning requirements).

Control of dampers or valves in HVAC systems.

Support and Services:

Our Product Technical Support and Services for the Piston Pneumatic Cylinder include:

- Assistance with installation and setup of the pneumatic cylinder

- Troubleshooting guidance for any operational issues

- Maintenance tips to ensure optimal performance and longevity

- Training resources for proper usage and handling of the product

Packing and Shipping:

Product Packaging:

The Piston Pneumatic Cylinder will be carefully packaged in a sturdy cardboard box with ample cushioning to prevent any damage during transit. Each cylinder will be sealed in a protective plastic wrapping to ensure cleanliness and protection from dust and dirt.

Shipping Information:

Orders for the Piston Pneumatic Cylinder will be processed within 1-2 business days of receiving the order. We offer standard and expedited shipping options to meet your delivery needs. All shipments will be securely packed and labeled for easy identification.
