Product Description:

The PARKER P1F series cylinders boast several key technical features and design highlights. One standout feature is their adherence to the ISO 15552 standard, with cylinder diameters ranging from Ø 32mm to Ø 125mm. The cylinders feature a sleek contour design and a natural appearance that sets them apart. They are equipped with aluminum sandblasted front and rear end caps, stainless steel piston rods, and come with pneumatic buffers and magnetic pistons as standard for easy position detection.

Core Technological Advantages:
Sealing Technology: The cylinders utilize Parker Prädifa's advanced sealing technology, offering a selection of sealing materials to suit different application requirements.
Buffer Capability: Standard adjustable pneumatic buffering helps to minimize impact at the end of the stroke, ensuring smooth braking, reducing noise levels, and extending the cylinder's lifespan.

Rich Options:

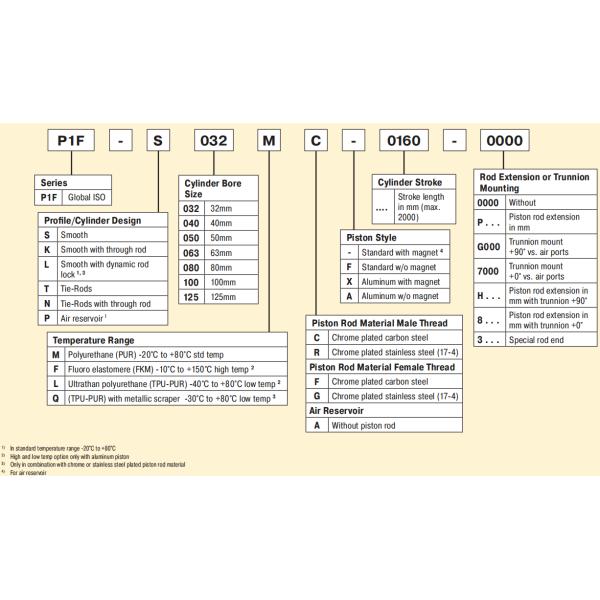

The P1F series provides a range of piston rod materials, including hard chrome plated carbon steel or stainless steel, and offers various types of dust seals such as standard, FKM, and Polon®. Additionally, options include a metal dust scraper ring, as well as a variety of installation accessories and sensors like the P8S series installation parts and CPS sensors with IO Link functionality.

Applications:

The PARKER P1F series cylinders , with their robust design and diverse options, can adapt to many demanding industrial environments:

Factory Automation and Material Handling: In automated production lines, the P1F series cylinders are commonly used to push objects, accurately position (stop/hold/advance), and control flow separation and merging (changing lanes, directions) on the assembly line.

Clamping and fixing: In fields such as machine tool machining and vehicle assembly, it can be used to clamp workpieces or components, ensuring stability and safety during the machining or assembly process.

Packaging Machinery: In the packaging industry, these cylinders can perform push/pull actions for sorting, conveying, and packaging operations of items.

Special environment:

• Food and pharmaceutical industry: optional Polon/UHMW-PE material sealing and dust removal rings that meet FDA requirements, suitable for areas that require frequent cleaning or avoid lubricant contamination (such as food industry zones 2 and 3)
• High temperature and low temperature scenarios: High temperature models (-10 ° C to+150 ° C) can be used for baking equipment, while low temperature models (-40 ° C to+80 ° C) are suitable for cold storage, refrigerated transportation, or outdoor cold environments.
• Adverse working conditions: In the face of situations such as wood processing and cement industry where hard abrasives such as resin, ice, cement, and sugar crystals are prone to accumulate on the piston rod, a combination of metal dust scraper rings and hard chrome plated piston rods can be selected to effectively prevent damage and extend the service life.
• Potential explosive environment: Some models in the series offer ATEX certified versions (temperature limit -20 ° C to+60 ° C), which can be used in certified potential explosive environments.
