一,国际站英文属性(可直接一键粘贴发布)

Basic Info 基础信息

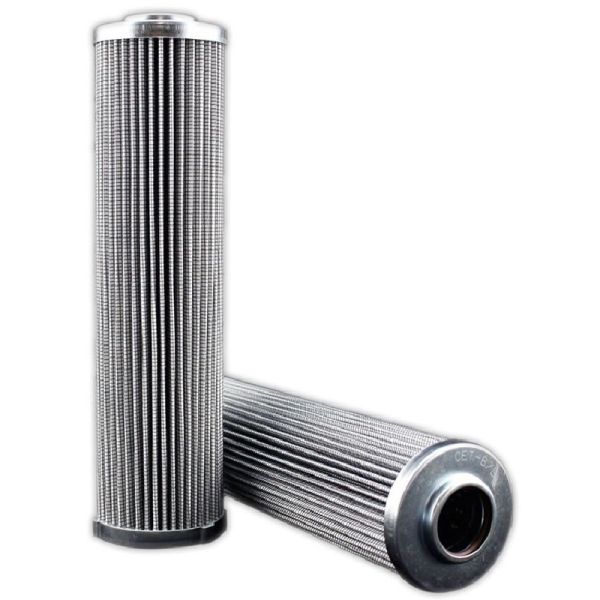

• Product Name: Hydraulic Filter Element
• Brand: MAHLE
• Replacement Type: 1:1 interchange spare filter cartridge
• Part Numbers: PI8315DRG40, PI8611DRG200, PI2108PS3
• Alias: Oil Filter Insert, Line Filter Cartridge, Lubrication Filter Element
•

Material 材质

• Filter Media:

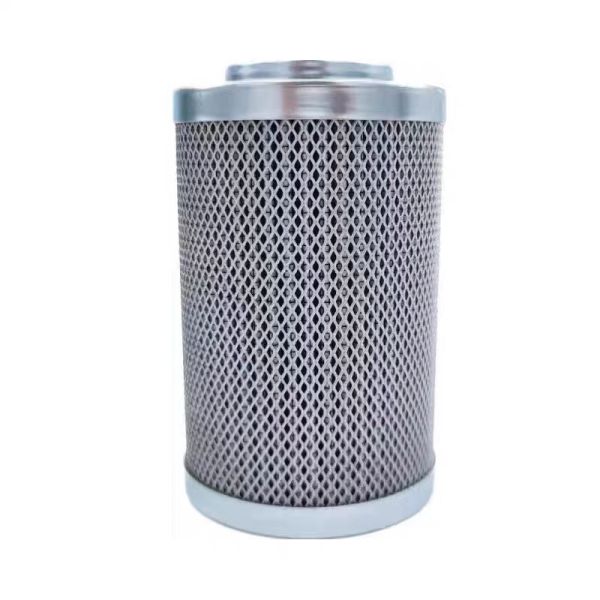

  DRG series: Stainless steel woven wire mesh (cleanable reusable mesh filter)
  PS series: Progressive micro glass fiber depth filter
• Inner & Outer Support Cage: Galvanized carbon steel
• End Cover: Carbon steel galvanized
• Sealing Ring: NBR nitrile rubber (optional Viton fluororubber)
• Flow Direction: Outside to Inside

Core Technical Parameters 核心参数

1. PI8315DRG40

• Filtration Rating: 40μm
• Collapse Pressure: 30 bar
• Working Temperature: -25℃ ~ +120℃
• Medium: Hydraulic oil, lube oil, gear oil
• Structure: Reusable metal mesh filter elementHydro-Funk...

2. PI8611DRG200

• Filtration Rating: 200μm coarse mesh
• Media: Multi-layer stainless steel wire mesh
• Feature: Washable & repeated use, low flow resistance

3. PI2108PS3

• Filtration Precision: 3μm absolute
• Beta Value: β≥200, tested per ISO16889 multipass standard
• Dimension: OD 47mm, ID 25mm, Length 171mm
• Max Collapse Pressure: 210 bar
• Media: High-capacity glass fiber deep filter materialFiltration...

Working Conditions 使用工况

• Max Working Pressure: 210 Bar
• Operating Temperature: -25℃ ~ +120℃
• Applicable Fluid: Hydraulic oil, turbine oil, gear oil, coolant, synthetic fluid
• Filter Structure: Pleated folded structure

Product Features 产品特性

• DRG (mesh): Cleanable metal mesh, long service life, low cost for coarse filtration
• PS (glass fiber): High dirt holding capacity, stable filtering efficiency, deep filtration
• High pressure resistance, anti-deformation, small pressure drop
• Strict size consistency, direct installation into original MAHLE filter housing
• Meet ISO16889 multi-pass filtration standard

Application Industry 适用行业

Trade Attributes 外贸供货属性

• Origin: China
• MOQ: 1 piece for sample
• Customization: Non-standard size & filter material available
• Quality: OEM equivalent replacement filter
• Packing: Independent carton packaging
