Product Description:

The 4V Series solenoid valves are designed as 5-port directional control valves specifically for pneumatic systems. They are offered in two primary configurations: 2-position (5/2) and 3-position (5/3), catering to various application needs.

This series features multiple body sizes, including the 4V100, 4V200, 4V300, and 4V400 models. Port sizes vary from M5 to G1/2, allowing the valves to accommodate different flow capacities effectively. Such variety ensures compatibility with a broad range of pneumatic setups.

Constructed with an aluminum alloy body, the valves incorporate a pilot-operated design, which can be either internal or external. The sliding spool mechanism enables reliable operation, providing excellent sealing performance, quick response times, and an extended service life.

These valves require no maintenance, as they do not need oil lubrication, and they are rated with IP65 protection for dust and water resistance. Additionally, multiple standard voltage options are available to suit varying electrical requirements.

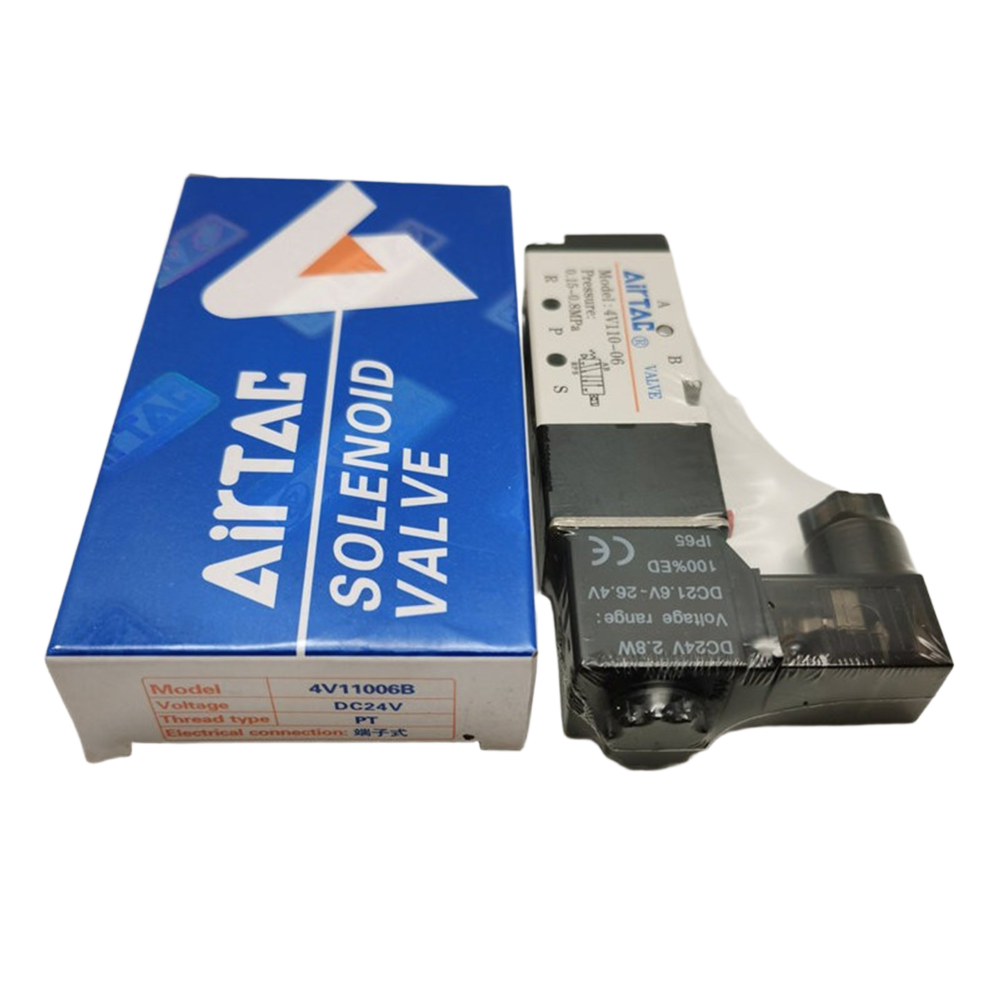

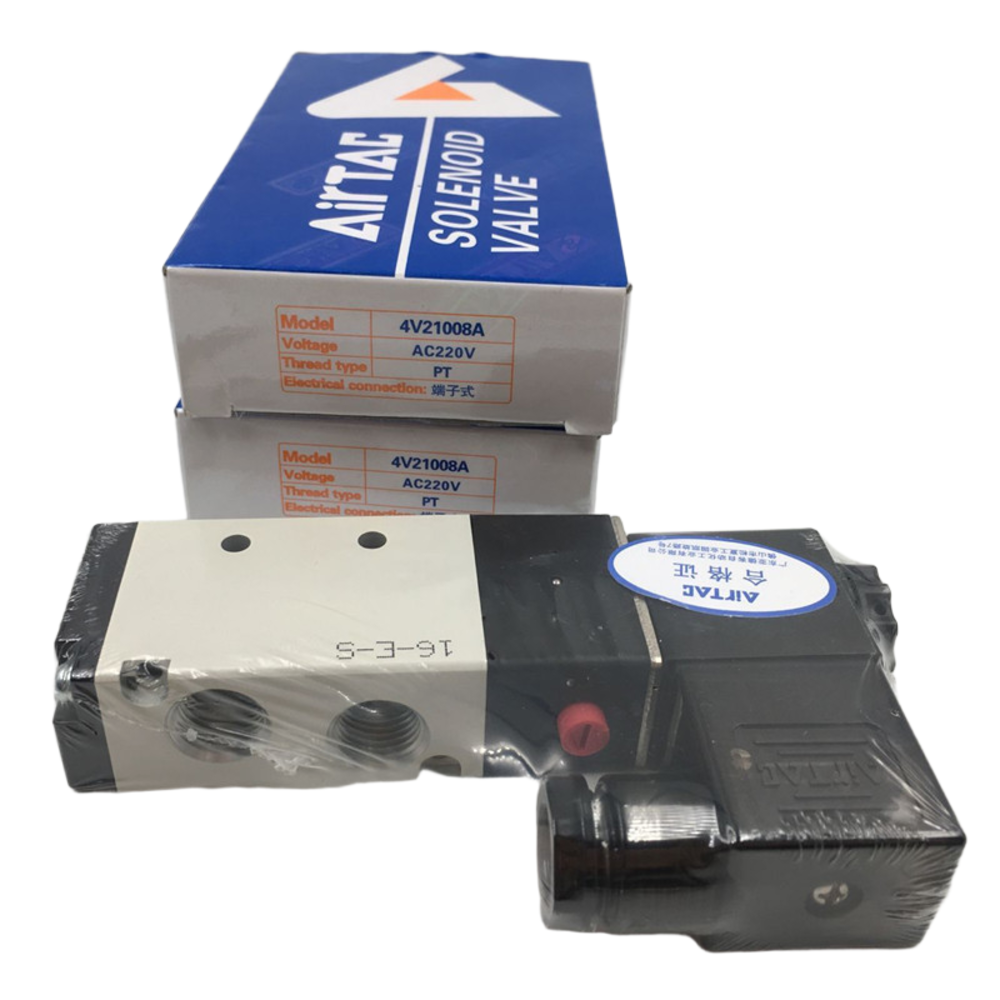

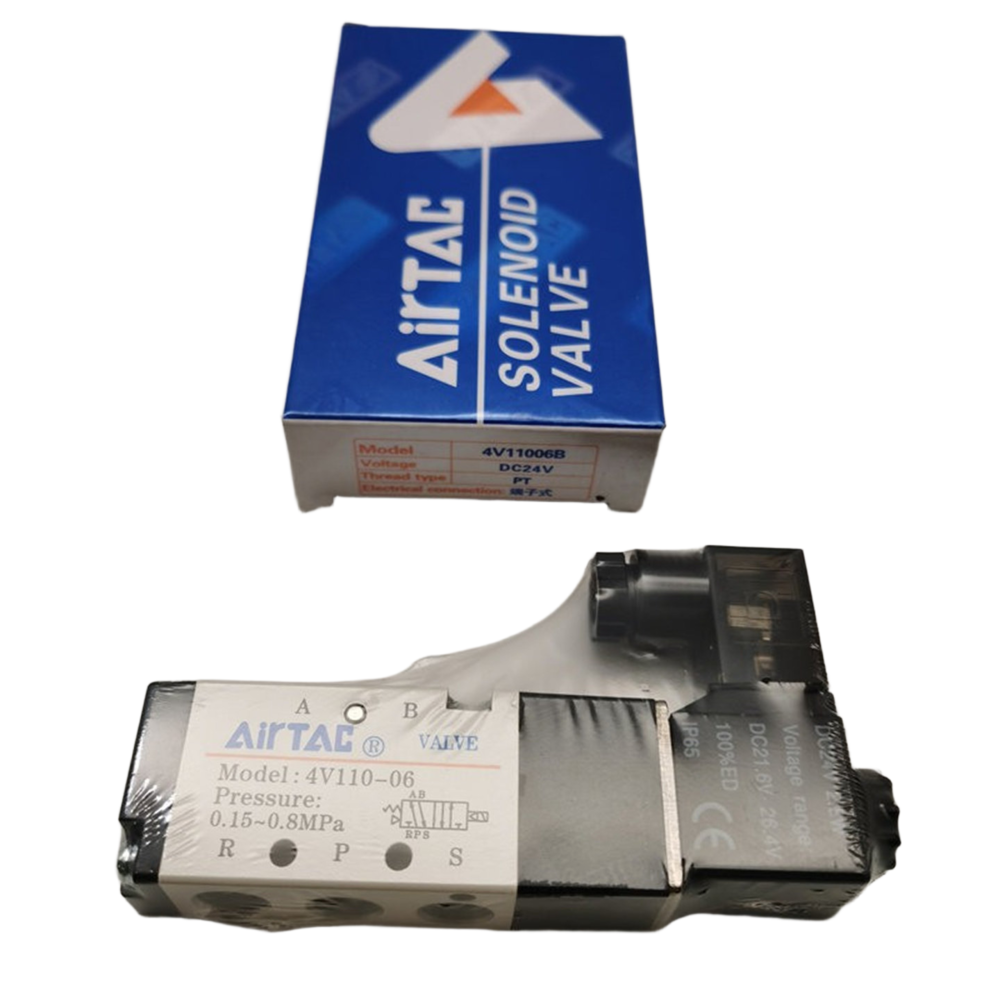

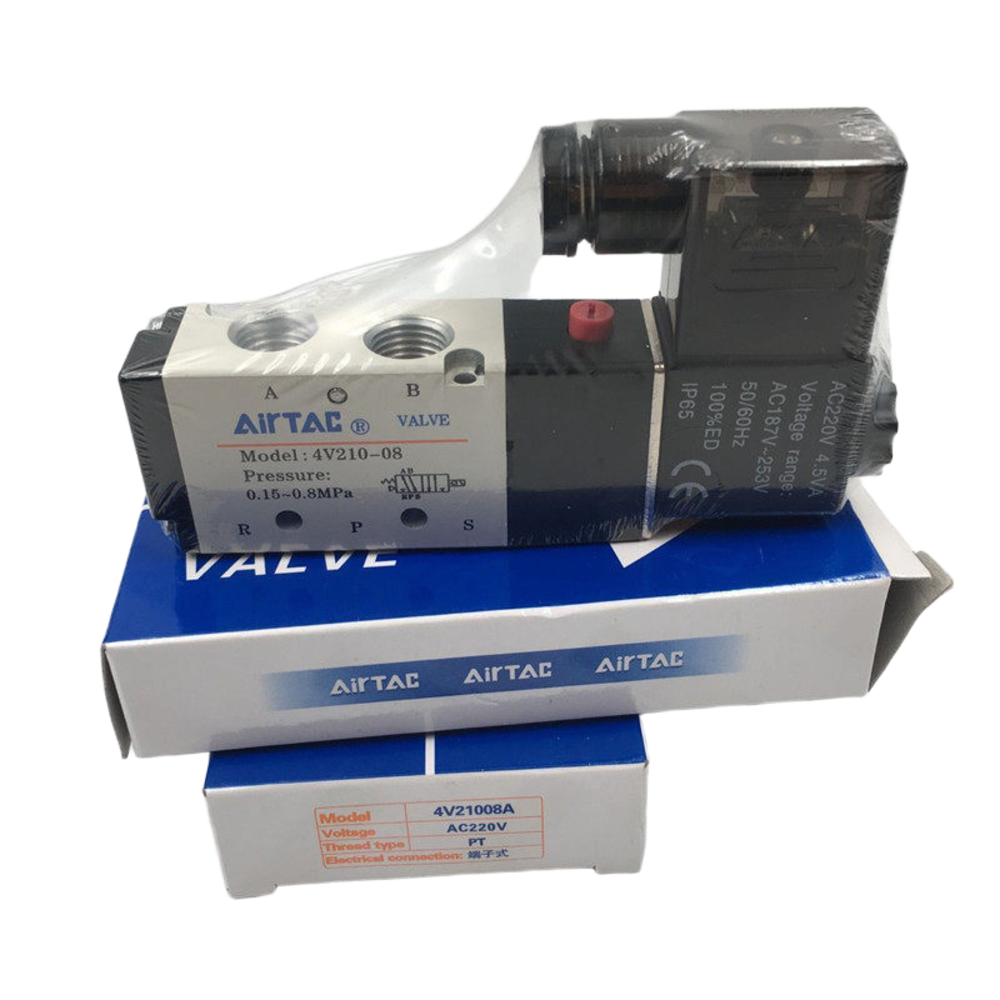

The details presented here apply to the following models: 4V110-06, 4V210-06, 4V210-08, 4V310-08, 4V310-10, and 4V410-15.

Features:

The valve features a pilot-operated mode, allowing for easy selection between internal and external pilot options. This flexibility enhances its adaptability in various applications.

Its sliding spool design guarantees excellent sealing performance and ensures a highly sensitive response. This structure contributes to reliable and efficient operation.

There are 3-position versions available, each offering three different center function options to meet diverse control requirements. Additionally, the double-solenoid models come equipped with a memory function, enhancing operational stability.

Special internal treatments have been applied to reduce friction within the valve, which lowers the starting pressure and significantly extends the device’s overall lifespan. These improvements contribute to a more durable and efficient product.

Because no oil lubrication is needed, the valve operates in a truly maintenance-free manner, minimizing downtime and reducing upkeep costs over time. Installation space can also be saved thanks to the option for manifold mounting.

For convenience during setup and troubleshooting, manual override devices are included to facilitate easy installation and debugging processes. Furthermore, the valve is offered with several standard voltage grades, both AC and DC, providing versatile electrical compatibility.

Technical Parameters:

Applications:

Our expertise spans across various sectors of industrial automation production lines. We provide advanced solutions designed to optimize manufacturing efficiency and enhance operational precision.

We specialize in packaging machinery that ensures reliability and speed, catering to a wide range of packaging needs in different industries.

Our portfolio includes state-of-the-art textile equipment tailored to improve production quality and throughput in the textile manufacturing industry.

For the food processing sector, we offer systems equipped with 40-micron filtered air technology to maintain high hygiene standards and ensure product safety.

We also excel in robotics and precision motion control systems, delivering innovative automation that boosts accuracy and productivity across applications.

Our assembly fixtures and tools are designed to support seamless production workflows, ensuring consistency and quality in assembly processes.

In the automotive manufacturing field, we provide specialized pneumatic systems that enhance the efficiency and reliability of various manufacturing operations.

Support and Services:

Our Pneumatic Solenoid Valve product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including installation guides, operation manuals, and maintenance instructions to assist users in proper handling and usage.

Technical support is available to address any inquiries related to product specifications, troubleshooting, and system integration. Our experienced support team can help diagnose issues, recommend solutions, and guide users through the setup process.

We also offer repair and replacement services for defective units within the warranty period. Regular maintenance services and consultation are available to enhance the longevity and efficiency of the pneumatic solenoid valves.

For custom applications, our engineering team can provide tailored solutions to meet specific operational requirements. Training sessions and webinars are conducted periodically to educate users on best practices and advanced features of our pneumatic solenoid valves.

We are committed to delivering prompt and reliable technical assistance to ensure that your pneumatic control systems operate smoothly and effectively.

Packing and Shipping:

Product Packaging:

The Pneumatic Solenoid Valve is securely packaged to ensure safe delivery. Each valve is individually wrapped in anti-static foam and placed inside a sturdy cardboard box. The box is then sealed with tamper-evident tape and labeled with product details, handling instructions, and barcodes for easy identification. For bulk orders, multiple units are packed together in a reinforced outer carton with proper cushioning to prevent movement and damage during transit.

Shipping:

We offer reliable shipping options to deliver the Pneumatic Solenoid Valve promptly and safely. Products are shipped via trusted carriers with tracking information provided to the customer. Depending on the destination, shipping methods include standard ground, expedited, and air freight services. All shipments comply with applicable regulations and include necessary documentation such as commercial invoices and packing lists to facilitate smooth customs clearance for international orders.
