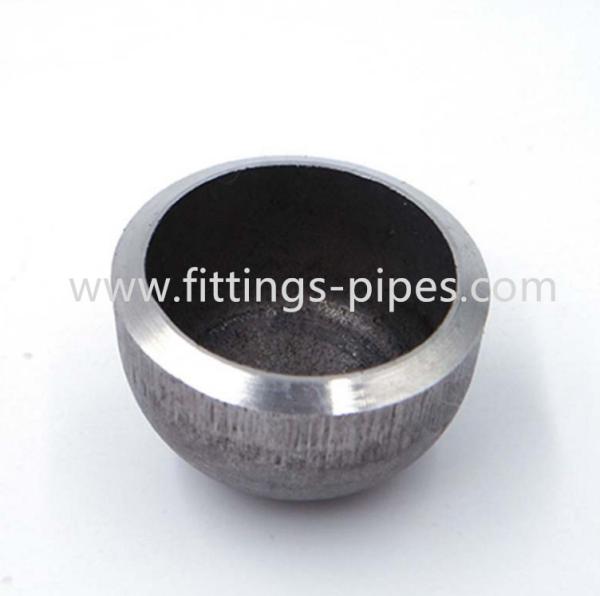

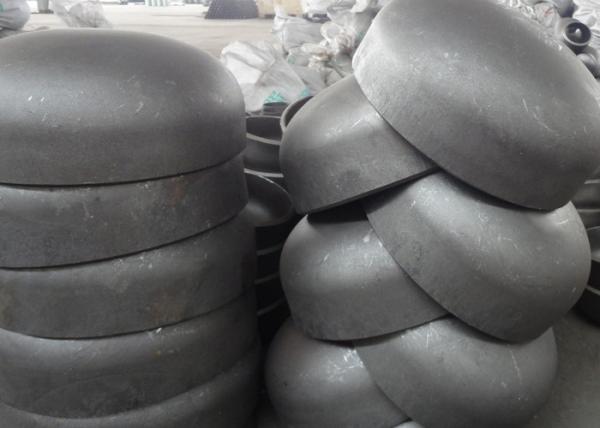

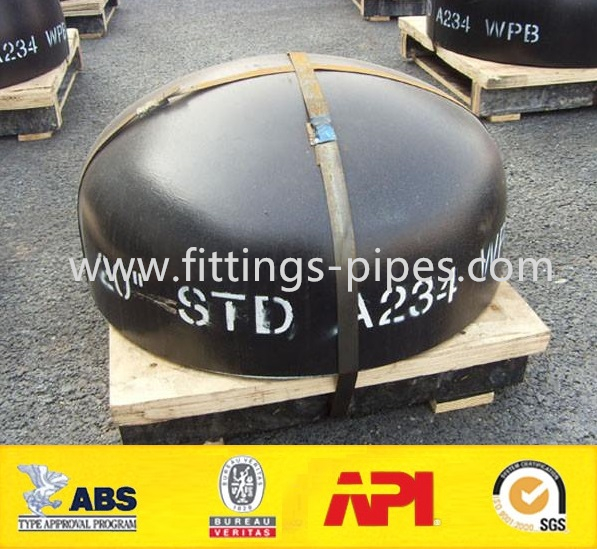

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness
Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness
Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness
Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness
Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness
Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness
Specifications
Brand Name :
hongcheng
Model Number :
1/2" TO 72 "
Certification :
PED、ABS、BV、DNV、GL、LR、SGS、IEI
Place of Origin :
China
MOQ :
1PCS
Price :
FOB USD 1-100/PCS
Payment Terms :
T/T, L/C at sight
Supply Ability :
2 Million Ton/Year
Delivery Time :
7-15 work days
Packaging Details :
In wooden case, pallets or as per customers’ requirement
Place of Origin: :
China
standard: :
ASTM, AISI, GB, DIN, JIS
Wall thickness :
SCH5S to SCHXXS
Supply Ability: :
ACCORDING TO CUSTOMER'S REQUEST
Usage: :
Petroleum, chemical, power, gas, industrial, shipping building, construction
Description

Steel Pipe End Cap Pipe Cap, Steel Pipe Cap, Alloy Steel Pipe Cap, Stainless Steel Pipe Cap​

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness

Specification:

NPS O.D.
D		 LENGTH
H		 LENGTH
H1
1/2 21.3 25 25
3/4 26.7 25 25
1 33.4 38 38
1.1/4 42.2 38 38
1.1/2 48.3 38 38
2 60.3 38 44
2.1/2 73 38 51
3 88.9 51 64
3.1/2 101.6 64 76
4 114.3 64 76
5 141.3 76 89
6 168.3 89 102
8 219.1 102 127
10 273 127 152
12 323.8 152 178
14 355.6 165 191
16 406.4 178 203
18 457 203 229
20 508 229 254
22 559 254 254
24 610 267 305
26 660 267 …
28 711 267 …
30 762 267 …
32 813 267 …
34 864 237 …
36 914 267 …
38 965 305 …
40 1016 305 …
42 1067 305 …
44 1118 343 …
46 1168 343 …
48 1219 343 …

Weight Table Of Pipe End Cap

NPS STD XS SCH 160 XXS
1 0.09 0.14 0.18 0.23
1.1/4 0.14 0.18 0.23 0.34
1.1/2 0.18 0.23 0.27 0.41
2 0.27 0.34 0.57 0.68
2.1/2 0.41 0.45 0.79 1.13
3 0.68 0.79 1.32 1.81
3.1/2 0.91 1.13 – 2.72
4 1.13 1.36 2.68 3.4
5 2.04 2.49 4.54 5.44
6 2.95 4.08 6.8 8.16
8 5.44 7.26 14.06 13.61
10 9.07 11.34 25.85 –
12 13.61 16.33 43.09 –
14 16.33 20.41 – –
16 18.14 24.49 – –
18 24.49 32.66 – –
20 34.02 39.01 – –
22 42.64 56.7 – –
24 43.54 58.97 – –
26 53.98 72.12 – –
30 78.02 103.87 – –
NPS STD XS SCH 160 XXS

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness

Alloy Material Steel Pipe End Cap For Petroleum SCH5S Wall Thickness
