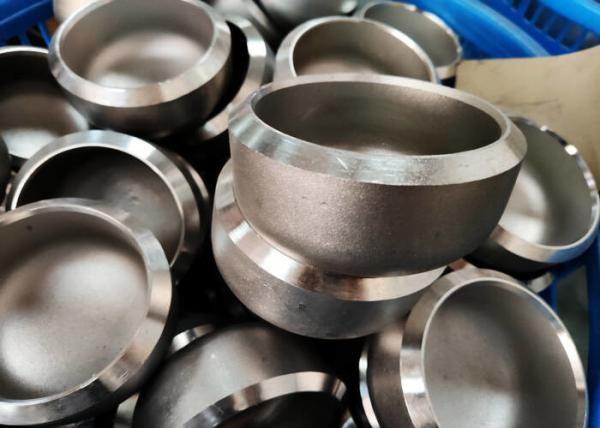

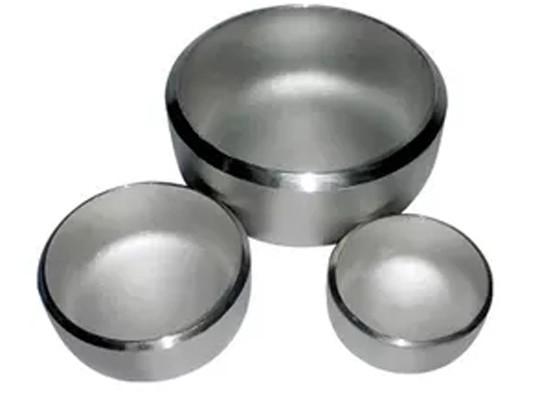

Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l
Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l
Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l
Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l
Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l
Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l
Specifications
Brand Name :
hongcheng
Model Number :
1/2" TO 72 "
Certification :
PED、ABS、BV、DNV、GL、LR、SGS、IEI
Place of Origin :
China
MOQ :
1PCS
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
2 Million Ton/Year
Delivery Time :
7-15 work days
Packaging Details :
In wooden case, pallets or as per customers’ requirement
Place of Origin: :
China
standard: :
ASTM, AISI, GB, DIN, JIS
Caps: :
BW End Caps
Type: :
Seamless ,Welded
Application : :
Gas and Oil Pipes, Petroleum Gas, Joining Pipe Lines
Description

Astm A403 Wp304/304l/31/316l Stainless Steel Pipe Cap Steel Pipe End Cap

What is ASME B16.9 Cap?

ASME B16.9 Cap act as defensive devices and are planned to secure ANSI B16.9 cap of different shapes. The main reason for utilizing ASME B16.9 Cap is to waterproof the associations. They are too utilized to shut the closes of water-powered or pneumatic channels and tubes. SS End Caps are utilized within the plumbing device of residential, commercial and mechanical water supply lines, machinery and preparing hardware, etc. They are moreover fitted on water pump lines with the sole reason for expelling air blocks.

ASME B16.9 end cap dimensions

Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l

Code FOSTD - FOXS Nominal Diameter Wall Th. S mm Height H mm Theoretical Weight kg
Poll. D mm STD XS STD XS
5 1/2 21.34 2.77 3.73 25.4 0.03 -
7 3/4 26.67 2.87 3.91 25.4 0.06 0.08
10 1 33.40 3.38 4.55 38.1 0.10 0.14
12 1'' 1/4 42.16 3.56 4.85 38.1 0.14 0.18
15 1'' 1/2 48.26 3.68 5.08 38.1 0.16 0.23
20 2 60.32 3.91 5.54 38.1 0.27 0.32
25 2'' 1/2 73.02 5.16 7.01 38.1 0.41 0.45
30 3 88.90 5.49 7.62 50.8 0.65 0.82
40 4 114.30 6.02 8.56 63.5 1.15 1.54
50 5 141.30 6.55 9.52 76.2 1.90 2.59
60 6 168.27 7.11 10.97 88.9 2.92 4.10
80 8 219.07 8.18 12.70 101.6 5.07 7.3
100 10 273 9.27 12.70 127 9.1 12.0
120 12 323.9 9.52 12.70 152 13.6 17.0
140 14 355.6 9.52 12.70 165 14.42 19.8
160 16 406.4 9.52 12.70 178 18.86 25.89
180 18 457.2 9.52 12.70 203 27.65 36.52
200 20 508 9.52 12.70 229 35.60 46.98
240 24 609.6 9.52 12.70 267 46 64.60

Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l

Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l

Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l

Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l

FAQ
1. Q:Are you a factory or trading company?
A: We are a factory, has more than 20 years experience in pipe fittings production.
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in cangzhou City, hebei Province,China.
3. Q:How does your factory do regarding quality control?
A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.
4. Q: Price high ?
A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.
5. Q: After sales service.
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.

Seamless Welded Steel Pipe End Cap Astm A403 Wp304 304l 316l
