A234.WP22-S Alloy Steel Seamless Pipe Tee Forged Square 2-1/2 XXS
A234.WP22-S Alloy Steel Seamless Pipe Tee Forged Square 2-1/2 XXS
A234.WP22-S Alloy Steel Seamless Pipe Tee Forged Square 2-1/2 XXS
A234.WP22-S Alloy Steel Seamless Pipe Tee Forged Square 2-1/2 XXS
Specifications
Brand Name :
hongcheng
Model Number :
1/2" TO 24 "
Certification :
PED、ABS、BV、DNV、GL、LR、SGS、IEI
Place of Origin :
China
MOQ :
1PCS
Price :
10-50 pieces US $86 / Piece;>50 pieces US $ 74/ Piece
Payment Terms :
L/C, D/P, T/T
Supply Ability :
2 Million Ton/Year
Delivery Time :
7-15 work days
Packaging Details :
Standard export seaworthy package,or as required
Size Range :
From ½”up to 24”
Certification: :
PED .TUV. ISO
Type : :
Elbow,Tee,Union,etc.,reducer
Packaging Details: :
Standard export seaworthy package or as required.
Material : :
carbon steel/ Staniless steel /Alloy steel
Painting :
Anti-rust painting/ Zinc coated/ Upon requirement
Surface treatment: :
smooth surface
Process: :
Forming by lathe workers
Description

A234.WP22-S Alloy Steel Seamless Tee Pipe Forged Square 2-1/2 "XXS

Forged stainless steel tees are widely used in chemical pipelines and drinking water pipeline systems due to their rust and corrosion resistance. Stainless steel III usually uses 304 stainless steel, which not only has good rust and corrosion resistance, but also has good high temperature resistance, which can reach 1000-1200 degrees. The 316 stainless steel tee is another type of stainless steel tee that is widely respected after 304. It uses 316 stainless steel, which not only has stronger rust and corrosion resistance than 304 stainless steel, but also has stronger resistance to chloride corrosion. It can be used in chemical pipelines for transporting concentrated hydrochloric acid, and it can be used in marine vessels and subsea pipelines widely.

Tee is a kind of chemical pipe fitting with three openings, namely one inlet and two outlets; or two inlets and one outlet. There are T-shaped and Y-shaped, with equal diameter nozzles and reducing nozzles, which are used for Where three identical or different pipelines converge. The main function of the tee is to change the direction of the fluid.

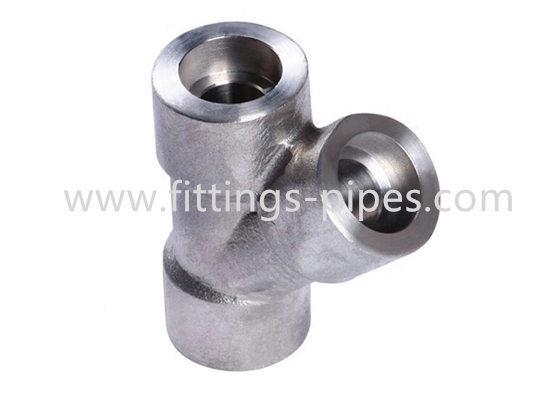

A234.WP22-S Alloy Steel Seamless Pipe Tee Forged Square 2-1/2

Socket Weld Dimensional Data
1/8" to 4" class 3000 socket weld, 1/8" to 4" class 6000 socket weld, 1/2" to 2 " class 9000 socket weld
Class 3000 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A 7/8 7/8 31/32 1 1/8 1 5/16 1 1/2 1 3/4 2 2 3/8 3 3 3/8 4 3/16
B 29/32 29/32 1 1/16 1 5/16 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/16 4 5/16 5 3/4
C 0.420 0.555 0.690 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D 3/8 3/8 3/8 3/8 1/2 1/2 1/2 1/2 5/8 5/8 5/8 3/4
E 7/16 7/16 17/32 5/8 3/4 7/8 1 1/16 1 1/4 1 1/2 1 5/8 2 1/4 2 5/8

Class 6000 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - - - 1 5/16 1 1/2 1 3/4 2 2 3/8 2 1/2 3 1/4 3 3/4 4 1/2
B - - - 1 9/16 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 4 4 3/4 6
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 2.906 3.535 4.545
D - - - 3/8 1/2 1/2 1/2 1/2 5/8 5/8 5/8 3/4
E - - - 3/4 7/8 1 1/16 1 1/4 1 1/2 1 5/8 2 1/4 2 1/2 2 3/4

Class 9000 　 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 4
A - - - 1 1/2 1 3/4 2 2 3/8 2 1/2 3 - - -
B - - - 1 27/32 2 7/32 2 1/2 3 1/32 3 11/32 3 11/16 - - -
C - - - 0.855 1.065 1.330 1.675 1.915 2.406 - - -
D - - - 3/8 1/2 1/2 1/2 1/2 5/8 - - -
E - - - 1 1 1/8 1 1/4 1 3/8 1 1/2 2 1/8 - - -

A234.WP22-S Alloy Steel Seamless Pipe Tee Forged Square 2-1/2
A234.WP22-S Alloy Steel Seamless Pipe Tee Forged Square 2-1/2

Pressure:
Thread type: 2000/3000/6000LBS
Socket welding type: 3000/6000/9000LBS
Butt welding type: SCH40/SCH80/SCH160/XXS
Executive standard:
ANSI/ASME B 1.20.1,B16.11 MSS SP-79, 83, 95, 97 JIS B0203,B2316.
Material:
stainless steel: F304,F316L,F310S,F317L,F321,F347
Carbon steel: A105,A106,A53,LF2,16MN,A234 WPB
alloy steel: F5.F9,F11,F22
Duplex steel: F44,F51,F53,F55,F60
Special Steel: 904L,N04400,N08810,N08020,N06625

A234.WP22-S Alloy Steel Seamless Pipe Tee Forged Square 2-1/2

FAQ
1.Q:Are you a factory or trading company?
A: We are a factory, has more than 20 years experience in pipe fittings production.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in wenzhou City, zhejiang Province,China.
3.Q:How does your factory do regarding quality control?
A: We are ISO9001& PED certified by TUV. We serious control the quality from raw material to finished pipe fittings. So that we can 100% sure our goods is qualified.
4. Q: Price high ?
A: Our price is workable. We had tried use auto equipment to save Workers cost, and control other costs. like human sources, logistics etc.
5.Q: After sales service.
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
