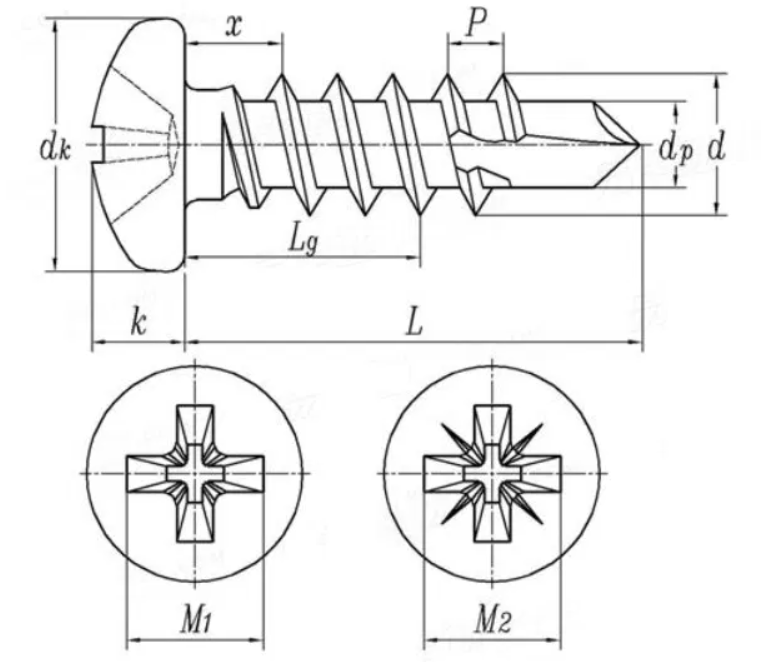

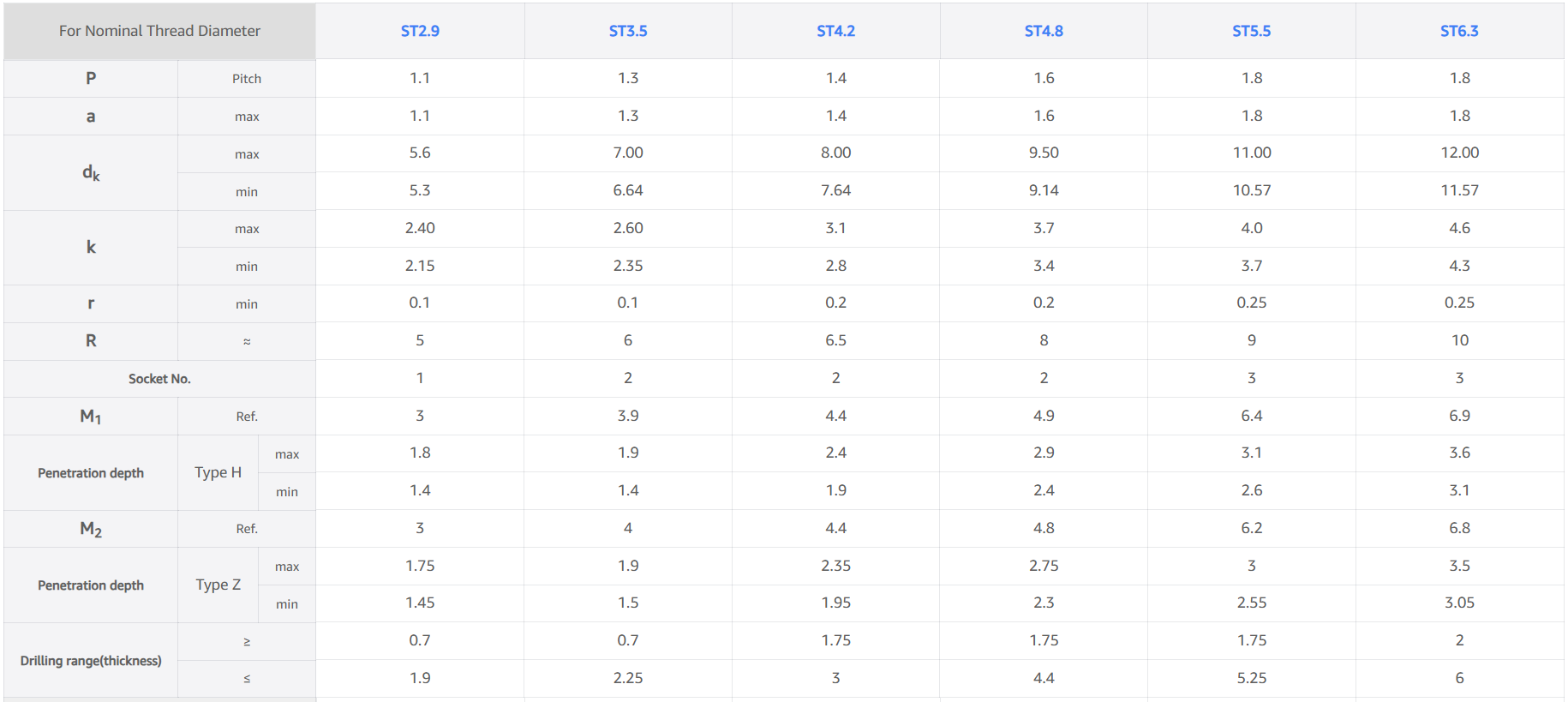

Drawing with technical parameters


Description
|
Product Name |
Pan head Phillips cross Recess Self Drilling Screws |
|
Material |
Stainless steel 410,Carbon steel etc. |
|
Size or shape |
According to customer drawing or request |
|
Standard |
DIN ,ISO GB |
|
Size available |
ST2.9~ST6.3 |
|
Quality Control |
ISO 9001,100% QC Test before shipment. |
|
Surface treatment |
Passivated ,,Zinc Plated (Yellow Zinc,White Zinc,Blue Zinc etc ) |
|
Delivery Time |
7-15 working days depends on the order quantities |
|
Service mode |
OEM or ODM, customized |
|
Payment terms |
T/T, Western Union, Paypal, etc. |
|
HS Code |
7318140001 |
|
Applications |
Building construction ,steel-shipbuilding ,metallurgy ,rail and so on |
