High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
Specifications
Certification :
CE, ISO9001:2008
MOQ :
1pcs
Price :
2000USD
Delivery Time :
15days after make the payment
Payment Terms :
L/C，T/T，Paypal, Cash,
Working Method :
Friction Type
Power Source :
Electric
Harvesting Machinery Type :
Fishing Winch
Fishing Method :
Trawling Machinery
Aquatic Products Processing Machinery :
Material Handling Machinery
Fishing Gear Winch Type :
Net Hauler
Fishing Auxiliary Machinery Type :
Auxiliary Winch
Condition :
New
Finished processing machinery :
Fillet Machinery
Warranty :
Na
Floating Pipe :
200mm/250mm/315mm/350mm/400mm
Color :
Black and Yellow
Material :
HDPE Pipe
Shape :
Round
Delivery Detail :
Two Weeks After Receiving Deposit
Transport Package :
in Bulk
Specification :
Diameter 10m - 50m
Trademark :
Souther
Origin :
Guangdong, China
HS Code :
5608110090
Supply Ability :
6000sets/Year
Customization :
Available
After-sales Service :
Na
Type :
Fisheries Auxiliary Machinery
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description

Aquatic Products Processing Machinery High Toughness Fish Cage Diameter 10m 50m Suitable For Freshwater And Seawater


Structure sketch

High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater

Technical specifications

HDPE round floating cage frame specificaitons

Circumference(M) Diameter of floating pipe(MM) Diameter of handrial pipe(MM) Diameter of stand pipe(MM)
30 200mm 90mm 110mm
40 200mm/250mm 90mm/110mm 110mm/125mm
50 250mm 110mm 125mm
60 250mm/315mm 110mm 125mm
70 315mm 110mm/125mm 125mm
80 315mm 110mm/125mm --
90 350mm 125mm --
100 350mm/400mm 125mm --
120 350mm/400mm 125mm --
150 350mm/400mm 125mm --
200 400mm 125mm --






HDPE square floating cage frame specificaitons
L*W(M) Diameter of floating pipe(MM) Diameter of handrial pipe(MM) Diameter of stand pipe(MM)
3m * 3m 200mm 90mm 110mm
4m * 4m 200mm 90mm 110mm
5m * 5m 200mm 90mm 110mm
6m * 6m 200mm/250mm 90mm/110mm 110mm/125mm
7m * 7m 250mm/315mm 110mm 125mm
8m * 8m 250mm/315mm 110mm 125mm
9m * 9m 250mm/315mm 110mm 125mm
10m * 10m 315mm 110mm 125mm
12m * 12m 315mm/350mm 110mm/125mm 125mm/--
15m * 15m 315mm/350mm 110mm/125mm 125mm/--
20m * 20m 350mm/400mm 125mm --
30m * 30m 350mm/400mm 125mm --

Mooring system
Our mooring system is "Grid"system in the deep sea or fresh water,the "Grid"system is made by the ropes and shackles, the cages are in the grid and fixxed bu ropes.Such the cages are united as one group, one cage moves,other cages all move,they are interrelated and mutual restraint to avoid destruction accidents caused by collisions between different cages even in the bad sea condition.


High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And SeawaterHigh Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater

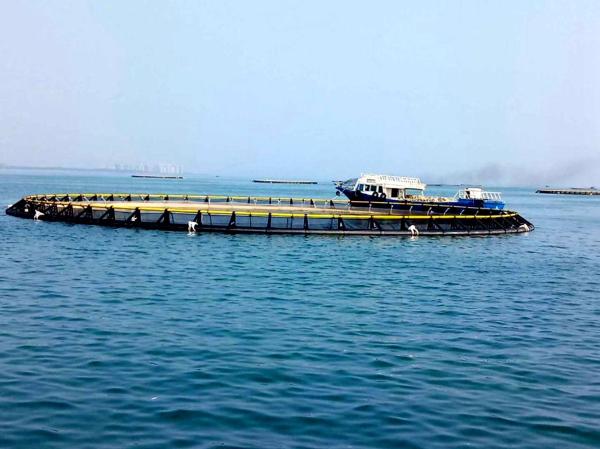

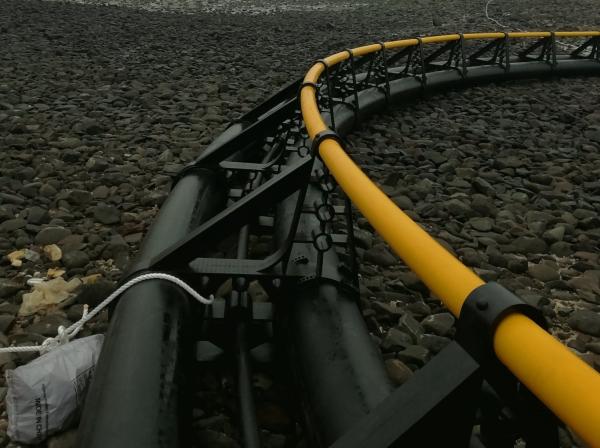

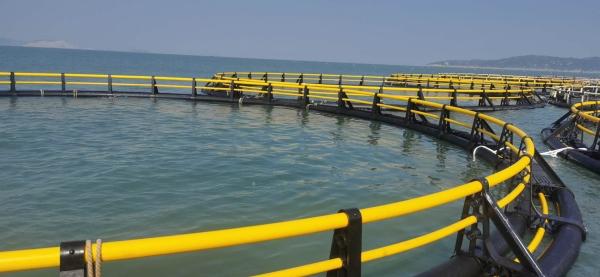

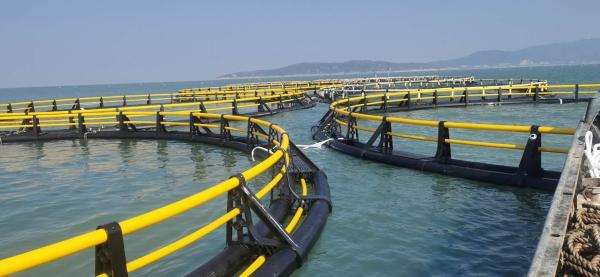

Products show
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater
High Toughness Aquatic Hdpe Fish Cage Diameter 10m 50m For Freshwater And Seawater

Products of features
Nanfengwang cage has a strong ability of anti-wind,anti-current and anti-wave. It's made of new material HDPE pipe,making the cage have a long life. The cage capacity is large and makes a high survival rate.
1. Wide range of applications, it can be set in the depth of water from -6m to 50m.
2.Strong ability of wind resistance, can defend against the typhoon,the maximum is 12 grade.Strong ability of wave resistance to 7m,strong ability of current resistance to 1.2m/s.
3.Aquaculture capacity,the living space and growing space are large.
4.The cage has a long life, the cage frame can be used over 15 years.
5.The net can be replaced easily.
6.Material is a marine special HDPE pipe,which is high strength,high toughness,anti-oxidant and anti-aging.
