Specifications
Certification :
CE, ISO9001:2008
MOQ :
1pcs
Price :
2000USD
Delivery Time :
15days after make the payment
Payment Terms :
L/C，T/T，Paypal, Cash,
Model NO. :
NFW001
Working Method :
Friction Type
Power Source :
Electric
Harvesting Machinery Type :
Fishing Winch
Fishing Method :
Trawling Machinery
Aquatic Products Processing Machinery :
Material Handling Machinery
Fishing Gear Winch Type :
Net Hauler
Fishing Auxiliary Machinery Type :
Auxiliary Winch
Condition :
New
Finished processing machinery :
Fillet Machinery
Warranty :
Na
Floating Pipe :
200mm/250mm/315mm/350mm/400mm
Color :
Black and Yellow
Material :
HDPE Pipe
Shape :
Round
Delivery Detail :
Two Weeks After Receiving Deposit
Transport Package :
in Bulk
Specification :
Diameter 10m - 50m
Trademark :
Souther
Origin :
Guangdong, China
HS Code :
5608110090
Supply Ability :
6000sets/Year
Package Size :
250.00cm * 110.00cm * 6.80cm
Package Gross Weight :
12.000kg
Customization :
Available
After-sales Service :
Na
Type :
Fisheries Auxiliary Machinery
Shipping Cost :
Contact the supplier about freight and estimated delivery time.
  :
Support payments in USD
Secure payments :
Every payment you make on Made-in-China.com is protected by the platform.
Refund policy :
Claim a refund if your order doesn't ship, is missing, or arrives with product issues.
Description
product of features

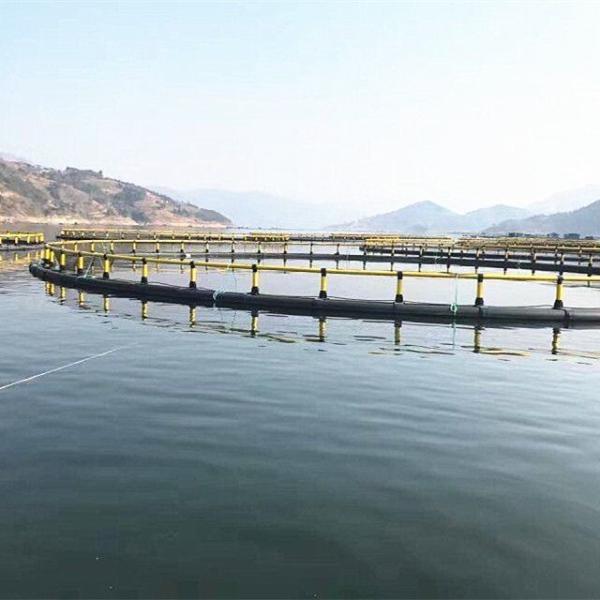

Nanfengwang cage has a strong ability of anti-wind,anti-current and anti-wave. It's made of new material HDPE pipe,makingthe cage have a long life. The cage capacity is large and makes a high survival rate.

1. Wide range of applications, it can be set in the depth of water from -6m to 50m.
2.Strong ability of wind resistance, can defend against the typhoon,the maximum is 12 grade.Strong ability of wave resistance to 7m,strong ability of current resistance to 1.2m/s.
3.Aquaculture capacity,the living space and growing space are large.
4.The cage has a long life, the cage frame can be used over 15 years.
5.The net can be replaced easily.
6.Material is a marine special HDPE pipe,which is high strength,high toughness,anti-oxidant and anti-aging.

Technical specifications
Material Handling Machinery Fish Farming Cage 250.00cm * 110.00cm * 6.80cm Package for Aquatic
HDPE round floating cage frame specificaitons

Circumference(M) Diameter of floating pipe(MM) Diameter of handrial pipe(MM) Diameter of stand pipe(MM)
30 200mm 90mm 110mm
40 200mm/250mm 90mm/110mm 110mm/125mm
50 250mm 110mm 125mm
60 250mm/315mm 110mm 125mm
70 315mm 110mm/125mm 125mm
80 315mm 110mm/125mm --
90 350mm 125mm --
100 350mm/400mm 125mm --
120 350mm/400mm 125mm --
150 350mm/400mm 125mm --
200 400mm 125mm --


HDPE square floating cage frame specificaitons
L*W(M) Diameter of floating pipe(MM) Diameter of handrial pipe(MM) Diameter of stand pipe(MM)
3m * 3m 200mm 90mm 110mm
4m * 4m 200mm 90mm 110mm
5m * 5m 200mm 90mm 110mm
6m * 6m 200mm/250mm 90mm/110mm 110mm/125mm
7m * 7m 250mm/315mm 110mm 125mm
8m * 8m 250mm/315mm 110mm 125mm
9m * 9m 250mm/315mm 110mm 125mm
10m * 10m 315mm 110mm 125mm
12m * 12m 315mm/350mm 110mm/125mm 125mm/--
15m * 15m 315mm/350mm 110mm/125mm 125mm/--
20m * 20m 350mm/400mm 125mm --
30m * 30m 350mm/400mm 125mm --
Products showMaterial Handling Machinery Fish Farming Cage 250.00cm * 110.00cm * 6.80cm Package for AquaticMaterial Handling Machinery Fish Farming Cage 250.00cm * 110.00cm * 6.80cm Package for Aquatic
Material Handling Machinery Fish Farming Cage 250.00cm * 110.00cm * 6.80cm Package for Aquatic

Material Handling Machinery Fish Farming Cage 250.00cm * 110.00cm * 6.80cm Package for AquaticMaterial Handling Machinery Fish Farming Cage 250.00cm * 110.00cm * 6.80cm Package for AquaticFinish the business with us, you should do as following:

step 1: Tell us your requirements,involved some parameters:shape,diameter
step 2: If you don't have specific parameters or your are not professional in fish farming cage ,you can send us some picture of your cage.
step 3: We will try our best to give you the best suitable size for you.
step 4: If we have confirmed the cage,we will give you a quotation.
tep 5: If you agree with our price,we will make a confirmation with you about some specific parameters.

the business with us, you should do as following:
step 1: Tell us your requirements,involved some parameters:shape,diameter
step 2: If you don't have specific parameters or your are not professional in fish farming cage ,you can send us some picture of your cage.
step 3: We will try our best to give you the best suitable size for you.
step 4: If we have confirmed the cage,we will give you a quotation.

step 5: If you agree with our price,we will make a confirmation with you about some specific parameters.
