Marine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea Areas
Marine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea Areas
Marine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea Areas
Marine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea Areas
Marine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea Areas
Marine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea Areas
Marine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea Areas
Marine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea Areas
Specifications
Brand Name :
Nanfengwang
Model Number :
Nangfengwang
Certification :
CE, ISO9001:2008
Place of Origin :
Guangdong, China
MOQ :
1
Price :
2000USD-10000USD
Payment Terms :
L/C,T/T,paypal,cash
Supply Ability :
6000sets/Year
Delivery Time :
15days after make the payment
Packaging Details :
In Bulk
Product Type :
HDPE Round Floating Fish Cage
Condition :
New
Warranty :
1 Year
Color :
Black And Yellow
Material :
HDPE Pipe
Floating Pipe :
200mm/250mm/315mm/350mm/400mm/450mm/500mm
Application :
Lake, Reservoir, Inland Freshwater Aquaculture
Corrosion Resistance :
Strong
Customization :
Available
Shape :
Round
Delivery :
Two Weeks After Receiving
Detail :
Deposit
Specification :
Diameter 10m - 60m
HS Code :
3926909090
After-sales Service :
1 Year
Policy :
Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues.
Shipping Cost :
Contact The Supplier About Freight And Estimated Delivery Time. Support Payments In USD
Description

Marine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea Areas

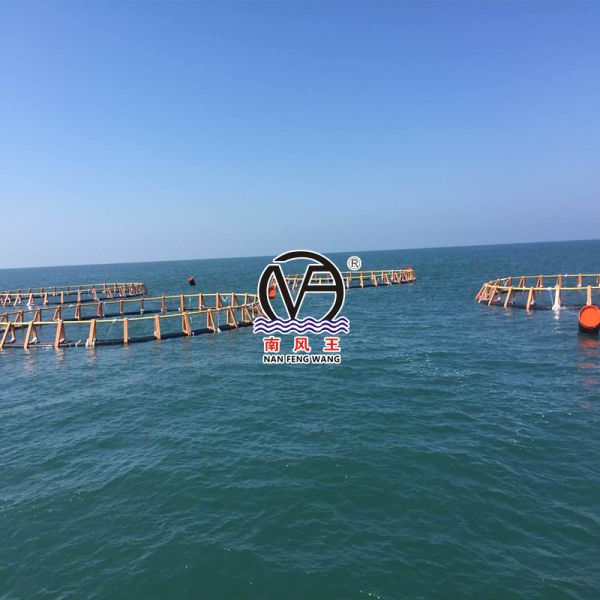

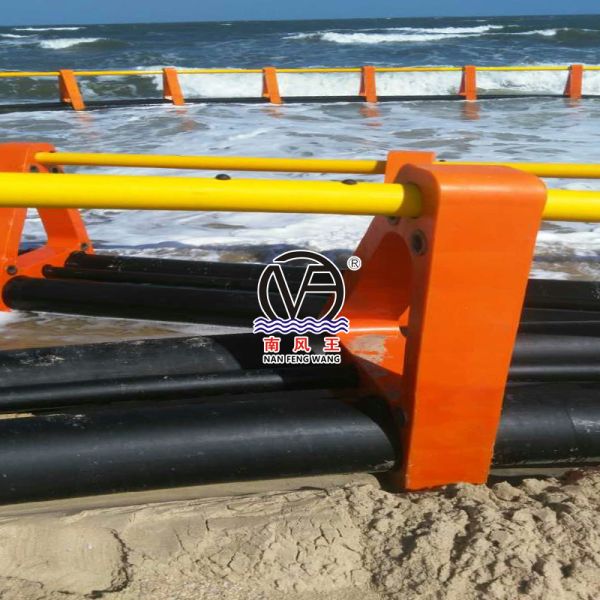

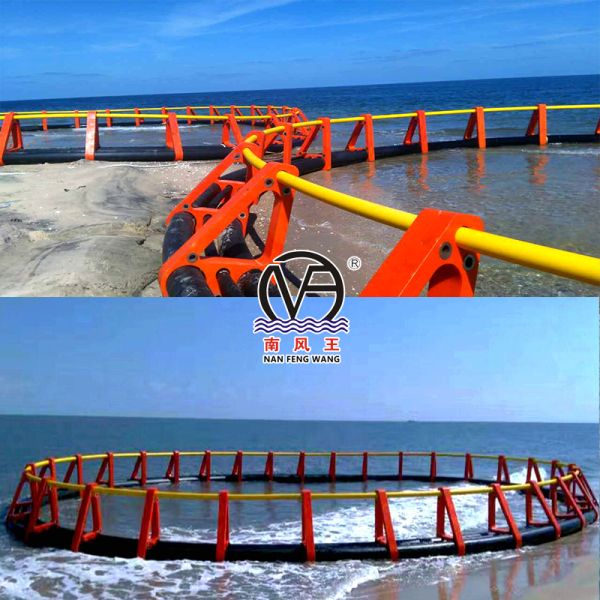

Our marine circular fish cages are specially engineered with anti-wave technology and reinforced structures, making them highly reliable for fish farming in typhoon-prone and rough sea areas.



Company Introduction:

As one of China’s largest manufacturers of HDPE fish cages, we maintain close cooperation with the East China Sea Fisheries Research Institute. We serve as the anti-wave cage manufacturing base under the Chinese Academy of Sciences and the first marine equipment manufacturing base of Sun Yat-sen University. Our company is also responsible for drafting the national standard for HDPE fish cages in China.

Our HDPE fish cages are suitable for both marine and freshwater lake environments, with a service life of over 25 years. An increasing number of aquaculture operators choose our cages to achieve higher-quality fish production.



Circumference(M) Diameter of floating pipe(MM) Diameter of handrail pipe(MM) Diameter of stand pipe(MM)
30 200mm 90mm 110mm
40 200mm/250mm 90mm/110mm 110mm/125mm
50 250mm 110mm 125mm
60 250mm/315mm 110mm 125mm
70 315mm 110mm/125mm 125mm
80 315mm 110mm/125mm ...
90 350mm 125mm ...
100 350mm/400mm 125mm ...
120 350mm/400mm 125mm ...
150 350mm/400mm 125mm ...
200 400mm 125mm ...


Length*Width (m) Diameter of the Floating Pipe (mm) Diameter of the Handrail Pipe (mm) Diameter of the Stand Pipe (mm) Hole Diameter of the Bracket (mm) Distance of the Brackets (m)
2*2 200 90 110 200 2.0
3*3 200/250 90/110 110/125 200/250 2.0
4*4 200/250 90/110 110/125 200/250 2.0
5*5 200/250 90/110 110/125 200/250 2.0
6*6 200/250 90/110 110/125 200/250 2.0
7*7 250/300 110 125 250/300 2.0
8*8 300/350 110 125 300/350 2.0
9*9 300/350 110/125 125/– 300/350 2.0/2.5
10*10 300/350 110/125 125/– 300/350 2.0/2.5
12*12 300/350 110/125 125/– 350/400 2.0/2.5
15*15 350/400 125 125/– 350/400 2.5
20*20 450/500 140/160 125/– 450/500 2.5/3.0
30*30 500/600 160 125/– 500/600 3.0/3.5


Parameter Value
Circumference 80m-300m
Floating pipe diameter 355mm-500mm
Handrail pipe 125mm-180mm
Stand pipe Conjoined structure
Breeding area 508-7165㎡
Bracket distance ≤1.71-3.5m
Wave resistance ≤6m
Life span ≥25 years


Marine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea Areas


Marine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea AreasMarine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea AreasMarine Circular Fish Cage Engineered With Anti Wave Technology And Reinforced Structural Components For Fish Farming In Typhoon Prone Sea Areas
